flight_control.h File Reference

Defines the states, events, and data structures for the rocket's main Flight State Machine (FSM). More...

#include "main.h"

Include dependency graph for flight_control.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	linear_acceleration_t
	Represents a 3-axis linear acceleration vector from an IMU. More...
struct	estimation_output_t
	Holds the primary outputs of the state estimation filter (e.g., Kalman filter). More...
struct	flight_fsm_t
	Main data structure for the Flight State Machine. More...

Enumerations
enum	flight_phase_t {   INVALID , CALIBRATING , LIFTOFF , BURNING ,   ABCSDEPLOYED , DROGUE , MAIN , TOUCHDOWN }
	Enumeration of all possible flight phases (states) in the FSM. More...

Functions
void	check_Calibrating_phase (flight_fsm_t *fsm_state, estimation_output_t MotionData, linear_acceleration_t acc_data)
	Handler for the CALIBRATING state.
void	check_Liftoff_phase (flight_fsm_t *fsm_state, estimation_output_t MotionData)
	Handler for the LIFTOFF state.
void	check_Burning_phase (flight_fsm_t *fsm_state, estimation_output_t MotionData)
	Handler for the BURNING state (powered ascent).
void	check_AbcsDeployed_phase (flight_fsm_t *fsm_state, estimation_output_t MotionData)
	Handler for the ABCSDEPLOYED state (apogee control).
void	check_Drogue_phase (flight_fsm_t *fsm_state, estimation_output_t MotionData)
	Handler for the DROGUE state (descent under drogue parachute).
void	check_Main_phase (flight_fsm_t *fsm_state, estimation_output_t MotionData)
	Handler for the MAIN state (descent under main parachute).
void	check_Touchdown_phase (flight_fsm_t *fsm_state, estimation_output_t MotionData, linear_acceleration_t acc_data)
	Handler for the TOUCHDOWN state.
void	check_flight_phase (flight_fsm_t *fsm_state, estimation_output_t MotionData, linear_acceleration_t acc_data)
	Main FSM router function that delegates to the current state's handler.
void	change_state_to (flight_fsm_t *fsm_state, flight_phase_t new_state)
	Handles the mechanics of a state transition.

Detailed Description

Defines the states, events, and data structures for the rocket's main Flight State Machine (FSM).

Author

Francesco Abate, Tommaso Gualtierotti

Date

2024-04-02

This header file contains all the definitions necessary for the flight control logic. The FSM is responsible for managing the mission sequence, transitioning the rocket through its various flight phases from pre-launch calibration to post-landing touchdown.

Definition in file flight_control.h.

Function Documentation

change_state_to()

void change_state_to	(	flight_fsm_t *	fsm_state,
		flight_phase_t	new_state
	)

Handles the mechanics of a state transition.

This utility function updates the FSM's state to the new phase, sets the state_changed flag, and records the transition timestamp. It ensures state changes are handled consistently.

Parameters

[in,out]	fsm_state	Pointer to the FSM state object to be updated.
[in]	new_state	The new flight_phase_t to transition into.

Returns

None

Definition at line 229 of file flight_control.c.

                                                                     {

    phase->flight_state=new_phase;
    clear_fsm_memory(phase);
}

References clear_fsm_memory(), and flight_fsm_t::flight_state.

Referenced by check_AbcsDeployed_phase(), check_Burning_phase(), check_Calibrating_phase(), check_Drogue_phase(), check_Liftoff_phase(), and check_Main_phase().

Here is the call graph for this function:

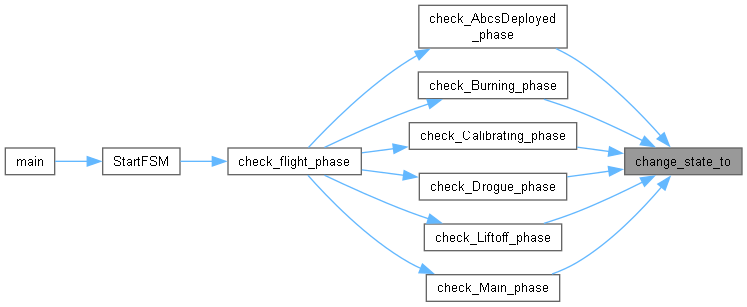

Here is the caller graph for this function:

check_AbcsDeployed_phase()

void check_AbcsDeployed_phase	(	flight_fsm_t *	fsm_state,
		estimation_output_t	MotionData
	)

Handler for the ABCSDEPLOYED state (apogee control).

Monitors for apogee detection (velocity changing from positive to negative) to trigger drogue parachute deployment.

Parameters

[in,out]	fsm_state	Pointer to the FSM state object.
[in]	MotionData	Filtered estimation data (altitude, velocity).

Definition at line 162 of file flight_control.c.

                                                                                  {
    if(phase->flight_state > ABCSDEPLOYED) return;

    if (MotionData.height < previous_altitude) {
            phase->memory[0]++;
    } else {
        phase->memory[0] = 0;
        previous_altitude = MotionData.height;
    }

    if(phase->memory[0] > APOGEE_SAFETY_COUNTER){
        drogue = 1;
        flag_MPC = false;
        flag_attitude = false;
        change_state_to(phase,DROGUE);
    }
}

References ABCSDEPLOYED, APOGEE_SAFETY_COUNTER, change_state_to(), DROGUE, drogue, flag_attitude, flag_MPC, flight_fsm_t::flight_state, estimation_output_t::height, flight_fsm_t::memory, and previous_altitude.

Referenced by check_flight_phase().

Here is the call graph for this function:

Here is the caller graph for this function:

check_Burning_phase()

void check_Burning_phase	(	flight_fsm_t *	fsm_state,
		estimation_output_t	MotionData
	)

Handler for the BURNING state (powered ascent).

Monitors for motor burnout and transitions to the coasting/apogee control phase.

Parameters

[in,out]	fsm_state	Pointer to the FSM state object.
[in]	MotionData	Filtered estimation data (altitude, velocity).

Definition at line 126 of file flight_control.c.

                                                                              {
    // if I'm in a higher state I cannot come back

    if(phase->flight_state > BURNING) return;

    if (MotionData.height > 1000) {
        phase->memory[0]++;
      } else {
          phase->memory[0] = 0;
      }

    if (phase->memory[0] > COASTING_SAFETY_COUNTER) {
        flag_MPC = true;
        flag_attitude = false;
        change_state_to(phase, ABCSDEPLOYED);//ABCSDEPLOYED
    }

//----------------------------------------------------------------------------------------- JUST IN CASE WE HAVE AN UMEXPECTED APOGEE
    if (MotionData.height < previous_altitude) {
        phase->memory_bis[0]++;
    } else{
        phase->memory_bis[0] = 0;
        previous_altitude = MotionData.height;
    }

    if(phase->memory_bis[0] > APOGEE_SAFETY_COUNTER){
        drogue = 1;
        flag_MPC = false;
        flag_attitude = false;
        change_state_to(phase,DROGUE);
    }
//--------------------------------------------------------------------------------------------


}

References ABCSDEPLOYED, APOGEE_SAFETY_COUNTER, BURNING, change_state_to(), COASTING_SAFETY_COUNTER, DROGUE, drogue, flag_attitude, flag_MPC, flight_fsm_t::flight_state, estimation_output_t::height, flight_fsm_t::memory, flight_fsm_t::memory_bis, and previous_altitude.

Referenced by check_flight_phase().

Here is the call graph for this function:

Here is the caller graph for this function:

check_Calibrating_phase()

void check_Calibrating_phase	(	flight_fsm_t *	fsm_state,
		estimation_output_t	MotionData,
		linear_acceleration_t	acc_data
	)

Handler for the CALIBRATING state.

Monitors for a sustained high vertical acceleration that indicates liftoff.

Parameters

[in,out]	fsm_state	Pointer to the FSM state object.
[in]	MotionData	Filtered estimation data (altitude, velocity).
[in]	acc_data	Raw linear acceleration data from the IMU.

Definition at line 56 of file flight_control.c.

                                                                                                                   {
    if(fsm_state->flight_state > CALIBRATING) return;

    if (acc_data.accX>LIFTOFF_TRESHOLD_ACC) {

            fsm_state->memory[0]++;
        } else {

            fsm_state->memory[0] = 0;
        }

    if(fsm_state->memory[0] > AIRBRAKES_SAFETY_COUNTER) {

            float_t flag = 1.0;
            QFlash_Write(0, (uint8_t*)&flag, 4);
            flag_flash = true;
            flag_attitude = true;
            change_state_to(fsm_state, LIFTOFF);
        }
//----------------------------------------------------------------------------------------- JUST IN CASE WE HAVE AN UMEXPECTED APOGEE
    if (MotionData.height > 20) {
        fsm_state->memory_bis[0]++;
    } else {
        fsm_state->memory_bis[0] = 0;
    }

    if(fsm_state->memory_bis[0] > LIFTOFF_SAFETY_COUNTER){
        float_t flag = 1.0;
        QFlash_Write(0, (uint8_t*)&flag, 4);
        flag_flash = true;
        flag_attitude = true;
        change_state_to(fsm_state,LIFTOFF);
    }
//--------------------------------------------------------------------------------------------

}

References linear_acceleration_t::accX, AIRBRAKES_SAFETY_COUNTER, CALIBRATING, change_state_to(), flag_attitude, flag_flash, flight_fsm_t::flight_state, estimation_output_t::height, LIFTOFF, LIFTOFF_SAFETY_COUNTER, LIFTOFF_TRESHOLD_ACC, flight_fsm_t::memory, flight_fsm_t::memory_bis, and QFlash_Write().

Referenced by check_flight_phase().

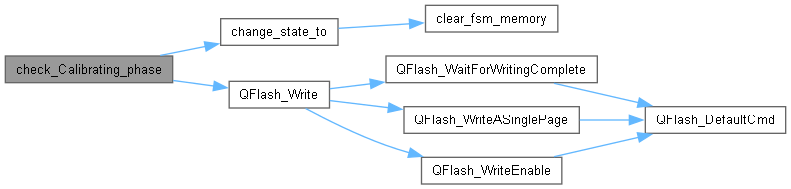

Here is the call graph for this function:

Here is the caller graph for this function:

check_Drogue_phase()

void check_Drogue_phase	(	flight_fsm_t *	fsm_state,
		estimation_output_t	MotionData
	)

Handler for the DROGUE state (descent under drogue parachute).

Monitors altitude to trigger main parachute deployment at a predefined height.

Parameters

[in,out]	fsm_state	Pointer to the FSM state object.
[in]	MotionData	Filtered estimation data (altitude, velocity).

Definition at line 181 of file flight_control.c.

                                                                             {
    // if I'm in a higher state I cannot come back
    if(phase->flight_state > DROGUE) return;

    if(MotionData.height < MAIN_DEPLOY_HEIGHT) {
        phase->memory[0]++;
    } else {
        phase->memory[0] = 0;
    }

    if(phase->memory[0] > MAIN_SAFETY_COUNTER) {
        mainp = 1;
        change_state_to(phase, MAIN);
    }
}

References change_state_to(), DROGUE, flight_fsm_t::flight_state, estimation_output_t::height, MAIN, MAIN_DEPLOY_HEIGHT, MAIN_SAFETY_COUNTER, mainp, and flight_fsm_t::memory.

Referenced by check_flight_phase().

Here is the call graph for this function:

Here is the caller graph for this function:

check_flight_phase()

void check_flight_phase	(	flight_fsm_t *	fsm_state,
		estimation_output_t	MotionData,
		linear_acceleration_t	acc_data
	)

Main FSM router function that delegates to the current state's handler.

This function acts as a switchboard. Based on the flight_state member of the FSM object, it calls the appropriate handler function for the current phase (e.g., check_Calibrating_phase, check_Liftoff_phase, etc.).

Parameters

[in,out]	fsm_state	Pointer to the FSM state object.
[in]	MotionData	The latest output from the state estimation filter.
[in]	acc_data	The latest raw linear acceleration data.

Returns

None

Definition at line 17 of file flight_control.c.

                                                                                                            {

     const flight_fsm_t old_phase = *phase;

     switch (phase->flight_state) {
         case CALIBRATING:
              check_Calibrating_phase(phase,MotionData,acc_data);
              break;

        case LIFTOFF:
              check_Liftoff_phase(phase, MotionData);
              break;

        case BURNING:
              check_Burning_phase(phase, MotionData);
              break;

        case ABCSDEPLOYED:
              check_AbcsDeployed_phase(phase,MotionData);
              break;

        case DROGUE:
              check_Drogue_phase(phase,MotionData);
              break;

        case MAIN:
              check_Main_phase(phase, MotionData);
              break;

        case TOUCHDOWN:
              break;
        case INVALID:
              break;

      }

     phase->state_changed = old_phase.flight_state != phase->flight_state;
}

References ABCSDEPLOYED, BURNING, CALIBRATING, check_AbcsDeployed_phase(), check_Burning_phase(), check_Calibrating_phase(), check_Drogue_phase(), check_Liftoff_phase(), check_Main_phase(), DROGUE, flight_fsm_t::flight_state, INVALID, LIFTOFF, MAIN, flight_fsm_t::state_changed, and TOUCHDOWN.

Referenced by StartFSM().

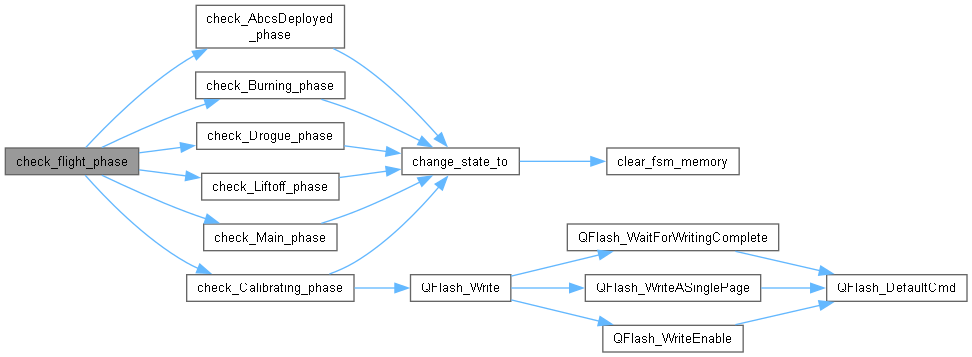

Here is the call graph for this function:

Here is the caller graph for this function:

check_Liftoff_phase()

void check_Liftoff_phase	(	flight_fsm_t *	fsm_state,
		estimation_output_t	MotionData
	)

Handler for the LIFTOFF state.

Monitors for the end of the motor burn phase based on acceleration drop.

Parameters

[in,out]	fsm_state	Pointer to the FSM state object.
[in]	MotionData	Filtered estimation data (altitude, velocity).

Definition at line 93 of file flight_control.c.

                                                                                 {
    // if I'm in a higher state I cannot come back
    if(fsm_state->flight_state > LIFTOFF) return;

    if (MotionData.height > 500) {
        fsm_state->memory[0]++;
      } else {
          fsm_state->memory[0] = 0;
      }

    if (fsm_state->memory[0] > COASTING_SAFETY_COUNTER) {
        flag_kf = true;
        change_state_to(fsm_state, BURNING);//ABCSDEPLOYED
    }


//----------------------------------------------------------------------------------------- JUST IN CASE WE HAVE AN UMEXPECTED APOGEE
    if (MotionData.height < previous_altitude) {
        fsm_state->memory_bis[0]++;
    } else {
        fsm_state->memory_bis[0] = 0;
        previous_altitude = MotionData.height;
    }

    if(fsm_state->memory_bis[0] > APOGEE_SAFETY_COUNTER) {
        drogue = 1;
        flag_MPC = false;
        flag_attitude = false;
        change_state_to(fsm_state,DROGUE);
    }
//--------------------------------------------------------------------------------------------
}

References APOGEE_SAFETY_COUNTER, BURNING, change_state_to(), COASTING_SAFETY_COUNTER, DROGUE, drogue, flag_attitude, flag_kf, flag_MPC, flight_fsm_t::flight_state, estimation_output_t::height, LIFTOFF, flight_fsm_t::memory, flight_fsm_t::memory_bis, and previous_altitude.

Referenced by check_flight_phase().

Here is the call graph for this function:

Here is the caller graph for this function:

check_Main_phase()

void check_Main_phase	(	flight_fsm_t *	fsm_state,
		estimation_output_t	MotionData
	)

Handler for the MAIN state (descent under main parachute).

Monitors for a stable, low altitude and a spike in acceleration to detect landing.

Parameters

[in,out]	fsm_state	Pointer to the FSM state object.
[in]	MotionData	Filtered estimation data (altitude, velocity).

Definition at line 197 of file flight_control.c.

                                                                           {
    // if I'm in a higher state I cannot come back
    if(phase->flight_state > MAIN) return;

    //HAL_GPIO_WritePin(GPIOC, E_Match_Parachute_2_Pin, GPIO_PIN_SET);

    /* If the velocity is very small we have touchdown */
    // check the altitude for a specific amount of time
    if (fabsf(MotionData.velocity) < VELOCITY_BOUND_TOUCHDOWN) {
//      /* Touchdown achieved */
        phase->memory[0]++;
    } else {
        /* Touchdown not achieved */
        phase->memory[0] = 0;
    }

    if (phase->memory[0] > TOUCHDOWN_SAFETY_COUNTER) {
        flag_flash = false;
        change_state_to(phase, TOUCHDOWN);
    }

}

References change_state_to(), flag_flash, flight_fsm_t::flight_state, MAIN, flight_fsm_t::memory, TOUCHDOWN, TOUCHDOWN_SAFETY_COUNTER, estimation_output_t::velocity, and VELOCITY_BOUND_TOUCHDOWN.

Referenced by check_flight_phase().

Here is the call graph for this function:

Here is the caller graph for this function:

check_Touchdown_phase()

void check_Touchdown_phase	(	flight_fsm_t *	fsm_state,
		estimation_output_t	MotionData,
		linear_acceleration_t	acc_data
	)

Handler for the TOUCHDOWN state.

This is a terminal state. The function performs any necessary post-landing actions, such as disabling pyros or saving final data.

Parameters

[in,out]	fsm_state	Pointer to the FSM state object.
[in]	MotionData	Filtered estimation data (altitude, velocity).
[in]	acc_data	Raw linear acceleration data from the IMU.
