LSM6DSO32_finite_state_machine

This section groups all the functions that manage the state_machine. More...

Collaboration diagram for LSM6DSO32_finite_state_machine:

Data Structures
struct	lsm6dso32_emb_fsm_enable_t
struct	lsm6dso32_fsm_out_t

Enumerations
enum	lsm6dso32_fsm_lc_clr_t { LSM6DSO32_LC_NORMAL = 0 , LSM6DSO32_LC_CLEAR = 1 , LSM6DSO32_LC_CLEAR_DONE = 2 }
enum	lsm6dso32_fsm_odr_t { LSM6DSO32_ODR_FSM_12Hz5 = 0 , LSM6DSO32_ODR_FSM_26Hz = 1 , LSM6DSO32_ODR_FSM_52Hz = 2 , LSM6DSO32_ODR_FSM_104Hz = 3 }

Functions
int32_t	lsm6dso32_long_cnt_flag_data_ready_get (stmdev_ctx_t *ctx, uint8_t *val)
	Interrupt status bit for FSM long counter timeout interrupt event.[get].
int32_t	lsm6dso32_emb_fsm_en_set (stmdev_ctx_t *ctx, uint8_t val)
	Final State Machine global enable.[set].
int32_t	lsm6dso32_emb_fsm_en_get (stmdev_ctx_t *ctx, uint8_t *val)
	Final State Machine global enable.[get].
int32_t	lsm6dso32_fsm_enable_set (stmdev_ctx_t *ctx, lsm6dso32_emb_fsm_enable_t *val)
	Final State Machine enable.[set].
int32_t	lsm6dso32_fsm_enable_get (stmdev_ctx_t *ctx, lsm6dso32_emb_fsm_enable_t *val)
	Final State Machine enable.[get].
int32_t	lsm6dso32_long_cnt_set (stmdev_ctx_t *ctx, uint16_t val)
	FSM long counter status register. Long counter value is an unsigned integer value (16-bit format).[set].
int32_t	lsm6dso32_long_cnt_get (stmdev_ctx_t *ctx, uint16_t *val)
	FSM long counter status register. Long counter value is an unsigned integer value (16-bit format).[get].
int32_t	lsm6dso32_long_clr_set (stmdev_ctx_t *ctx, lsm6dso32_fsm_lc_clr_t val)
	Clear FSM long counter value.[set].
int32_t	lsm6dso32_long_clr_get (stmdev_ctx_t *ctx, lsm6dso32_fsm_lc_clr_t *val)
	Clear FSM long counter value.[get].
int32_t	lsm6dso32_fsm_out_get (stmdev_ctx_t *ctx, lsm6dso32_fsm_out_t *val)
	FSM output registers[get].
int32_t	lsm6dso32_fsm_data_rate_set (stmdev_ctx_t *ctx, lsm6dso32_fsm_odr_t val)
	Finite State Machine ODR configuration.[set].
int32_t	lsm6dso32_fsm_data_rate_get (stmdev_ctx_t *ctx, lsm6dso32_fsm_odr_t *val)
	Finite State Machine ODR configuration.[get].
int32_t	lsm6dso32_fsm_init_set (stmdev_ctx_t *ctx, uint8_t val)
	FSM initialization request.[set].
int32_t	lsm6dso32_fsm_init_get (stmdev_ctx_t *ctx, uint8_t *val)
	FSM initialization request.[get].
int32_t	lsm6dso32_long_cnt_int_value_set (stmdev_ctx_t *ctx, uint16_t val)
	FSM long counter timeout register (r/w). The long counter timeout value is an unsigned integer value (16-bit format). When the long counter value reached this value, the FSM generates an interrupt.[set].
int32_t	lsm6dso32_long_cnt_int_value_get (stmdev_ctx_t *ctx, uint16_t *val)
	FSM long counter timeout register (r/w). The long counter timeout value is an unsigned integer value (16-bit format). When the long counter value reached this value, the FSM generates an interrupt.[get].
int32_t	lsm6dso32_fsm_number_of_programs_set (stmdev_ctx_t *ctx, uint8_t *buff)
	FSM number of programs register.[set].
int32_t	lsm6dso32_fsm_number_of_programs_get (stmdev_ctx_t *ctx, uint8_t *buff)
	FSM number of programs register.[get].
int32_t	lsm6dso32_fsm_start_address_set (stmdev_ctx_t *ctx, uint16_t val)
	FSM start address register (r/w). First available address is 0x033C.[set].
int32_t	lsm6dso32_fsm_start_address_get (stmdev_ctx_t *ctx, uint16_t *val)
	FSM start address register (r/w). First available address is 0x033C.[get].

Detailed Description

This section groups all the functions that manage the state_machine.

Enumeration Type Documentation

lsm6dso32_fsm_lc_clr_t

enum lsm6dso32_fsm_lc_clr_t

Enumerator
LSM6DSO32_LC_NORMAL
LSM6DSO32_LC_CLEAR
LSM6DSO32_LC_CLEAR_DONE

Definition at line 3686 of file lsm6dso32_reg.h.

{
  LSM6DSO32_LC_NORMAL     = 0,
  LSM6DSO32_LC_CLEAR      = 1,
  LSM6DSO32_LC_CLEAR_DONE = 2,
} lsm6dso32_fsm_lc_clr_t;

lsm6dso32_fsm_odr_t

enum lsm6dso32_fsm_odr_t

Enumerator
LSM6DSO32_ODR_FSM_12Hz5
LSM6DSO32_ODR_FSM_26Hz
LSM6DSO32_ODR_FSM_52Hz
LSM6DSO32_ODR_FSM_104Hz

Definition at line 3719 of file lsm6dso32_reg.h.

{
  LSM6DSO32_ODR_FSM_12Hz5 = 0,
  LSM6DSO32_ODR_FSM_26Hz  = 1,
  LSM6DSO32_ODR_FSM_52Hz  = 2,
  LSM6DSO32_ODR_FSM_104Hz = 3,
} lsm6dso32_fsm_odr_t;

Function Documentation

lsm6dso32_emb_fsm_en_get()

int32_t lsm6dso32_emb_fsm_en_get	(	stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

Final State Machine global enable.[get].

Parameters

ctx	read / write interface definitions
uint8_t	*: return the values of fsm_en in reg EMB_FUNC_EN_B

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8238 of file lsm6dso32_reg.c.

{
  int32_t ret;

  lsm6dso32_emb_func_en_b_t reg;
  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_EMB_FUNC_EN_B,
                             (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    *val = reg.fsm_en;
    ret = lsm6dso32_write_reg(ctx, LSM6DSO32_EMB_FUNC_EN_B,
                              (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References lsm6dso32_emb_func_en_b_t::fsm_en, LSM6DSO32_EMB_FUNC_EN_B, LSM6DSO32_EMBEDDED_FUNC_BANK, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), LSM6DSO32_USER_BANK, and lsm6dso32_write_reg().

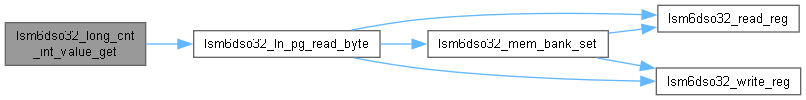

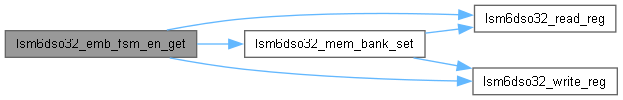

Here is the call graph for this function:

lsm6dso32_emb_fsm_en_set()

int32_t lsm6dso32_emb_fsm_en_set	(	stmdev_ctx_t *	ctx,
		uint8_t	val
	)

Final State Machine global enable.[set].

Parameters

ctx	read / write interface definitions
val	change the values of fsm_en in reg EMB_FUNC_EN_B

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8202 of file lsm6dso32_reg.c.

{
  int32_t ret;

  lsm6dso32_emb_func_en_b_t reg;
  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_EMB_FUNC_EN_B,
                             (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    reg.fsm_en = val;
    ret = lsm6dso32_write_reg(ctx, LSM6DSO32_EMB_FUNC_EN_B,
                              (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References lsm6dso32_emb_func_en_b_t::fsm_en, LSM6DSO32_EMB_FUNC_EN_B, LSM6DSO32_EMBEDDED_FUNC_BANK, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), LSM6DSO32_USER_BANK, and lsm6dso32_write_reg().

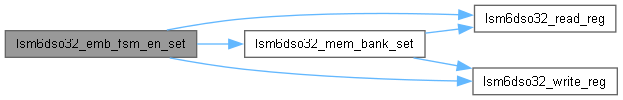

Here is the call graph for this function:

lsm6dso32_fsm_data_rate_get()

int32_t lsm6dso32_fsm_data_rate_get	(	stmdev_ctx_t *	ctx,
		lsm6dso32_fsm_odr_t *	val
	)

Finite State Machine ODR configuration.[get].

Parameters

ctx	read / write interface definitions
val	Get the values of fsm_odr in reg EMB_FUNC_ODR_CFG_B

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8598 of file lsm6dso32_reg.c.

{
  lsm6dso32_emb_func_odr_cfg_b_t reg;
  int32_t ret;

  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_EMB_FUNC_ODR_CFG_B,
                             (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    switch (reg.fsm_odr)
    {
      case LSM6DSO32_ODR_FSM_12Hz5:
        *val = LSM6DSO32_ODR_FSM_12Hz5;
        break;

      case LSM6DSO32_ODR_FSM_26Hz:
        *val = LSM6DSO32_ODR_FSM_26Hz;
        break;

      case LSM6DSO32_ODR_FSM_52Hz:
        *val = LSM6DSO32_ODR_FSM_52Hz;
        break;

      case LSM6DSO32_ODR_FSM_104Hz:
        *val = LSM6DSO32_ODR_FSM_104Hz;
        break;

      default:
        *val = LSM6DSO32_ODR_FSM_12Hz5;
        break;
    }

    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References lsm6dso32_emb_func_odr_cfg_b_t::fsm_odr, LSM6DSO32_EMB_FUNC_ODR_CFG_B, LSM6DSO32_EMBEDDED_FUNC_BANK, lsm6dso32_mem_bank_set(), LSM6DSO32_ODR_FSM_104Hz, LSM6DSO32_ODR_FSM_12Hz5, LSM6DSO32_ODR_FSM_26Hz, LSM6DSO32_ODR_FSM_52Hz, lsm6dso32_read_reg(), and LSM6DSO32_USER_BANK.

Here is the call graph for this function:

lsm6dso32_fsm_data_rate_set()

int32_t lsm6dso32_fsm_data_rate_set	(	stmdev_ctx_t *	ctx,
		lsm6dso32_fsm_odr_t	val
	)

Finite State Machine ODR configuration.[set].

Parameters

ctx	read / write interface definitions
val	change the values of fsm_odr in reg EMB_FUNC_ODR_CFG_B

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8559 of file lsm6dso32_reg.c.

{
  lsm6dso32_emb_func_odr_cfg_b_t reg;
  int32_t ret;

  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_EMB_FUNC_ODR_CFG_B,
                             (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    reg.not_used_01 = 3; /* set default values */
    reg.not_used_02 = 1; /* set default values */
    reg.fsm_odr = (uint8_t)val;
    ret = lsm6dso32_write_reg(ctx, LSM6DSO32_EMB_FUNC_ODR_CFG_B,
                              (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References lsm6dso32_emb_func_odr_cfg_b_t::fsm_odr, LSM6DSO32_EMB_FUNC_ODR_CFG_B, LSM6DSO32_EMBEDDED_FUNC_BANK, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), LSM6DSO32_USER_BANK, lsm6dso32_write_reg(), lsm6dso32_emb_func_odr_cfg_b_t::not_used_01, and lsm6dso32_emb_func_odr_cfg_b_t::not_used_02.

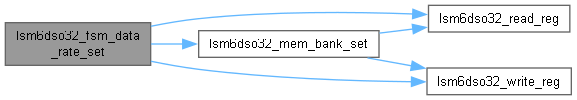

Here is the call graph for this function:

lsm6dso32_fsm_enable_get()

int32_t lsm6dso32_fsm_enable_get	(	stmdev_ctx_t *	ctx,
		lsm6dso32_emb_fsm_enable_t *	val
	)

Final State Machine enable.[get].

Parameters

ctx	read / write interface definitions
val	union of registers from FSM_ENABLE_A to FSM_ENABLE_B

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8348 of file lsm6dso32_reg.c.

{
  int32_t ret;

  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_FSM_ENABLE_A, (uint8_t *) val,
                             2);
  }

  if (ret == 0)
  {
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References LSM6DSO32_EMBEDDED_FUNC_BANK, LSM6DSO32_FSM_ENABLE_A, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), and LSM6DSO32_USER_BANK.

Here is the call graph for this function:

lsm6dso32_fsm_enable_set()

int32_t lsm6dso32_fsm_enable_set	(	stmdev_ctx_t *	ctx,
		lsm6dso32_emb_fsm_enable_t *	val
	)

Final State Machine enable.[set].

Parameters

ctx	read / write interface definitions
val	union of registers from FSM_ENABLE_A to FSM_ENABLE_B

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8274 of file lsm6dso32_reg.c.

{
  int32_t ret;

  lsm6dso32_emb_func_en_b_t reg;
  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_write_reg(ctx, LSM6DSO32_FSM_ENABLE_A,
                              (uint8_t *)&val->fsm_enable_a, 1);
  }

  if (ret == 0)
  {
    ret = lsm6dso32_write_reg(ctx, LSM6DSO32_FSM_ENABLE_B,
                              (uint8_t *)&val->fsm_enable_b, 1);
  }

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_EMB_FUNC_EN_B,
                             (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    if ((val->fsm_enable_a.fsm1_en   |
         val->fsm_enable_a.fsm2_en  |
         val->fsm_enable_a.fsm3_en  |
         val->fsm_enable_a.fsm4_en  |
         val->fsm_enable_a.fsm5_en  |
         val->fsm_enable_a.fsm6_en  |
         val->fsm_enable_a.fsm7_en  |
         val->fsm_enable_a.fsm8_en  |
         val->fsm_enable_b.fsm9_en  |
         val->fsm_enable_b.fsm10_en  |
         val->fsm_enable_b.fsm11_en  |
         val->fsm_enable_b.fsm12_en  |
         val->fsm_enable_b.fsm13_en  |
         val->fsm_enable_b.fsm14_en  |
         val->fsm_enable_b.fsm15_en  |
         val->fsm_enable_b.fsm16_en)
        != PROPERTY_DISABLE)
    {
      reg.fsm_en = PROPERTY_ENABLE;
    }

    else
    {
      reg.fsm_en = PROPERTY_DISABLE;
    }

    ret = lsm6dso32_write_reg(ctx, LSM6DSO32_EMB_FUNC_EN_B,
                              (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References lsm6dso32_fsm_enable_b_t::fsm10_en, lsm6dso32_fsm_enable_b_t::fsm11_en, lsm6dso32_fsm_enable_b_t::fsm12_en, lsm6dso32_fsm_enable_b_t::fsm13_en, lsm6dso32_fsm_enable_b_t::fsm14_en, lsm6dso32_fsm_enable_b_t::fsm15_en, lsm6dso32_fsm_enable_b_t::fsm16_en, lsm6dso32_fsm_enable_a_t::fsm1_en, lsm6dso32_fsm_enable_a_t::fsm2_en, lsm6dso32_fsm_enable_a_t::fsm3_en, lsm6dso32_fsm_enable_a_t::fsm4_en, lsm6dso32_fsm_enable_a_t::fsm5_en, lsm6dso32_fsm_enable_a_t::fsm6_en, lsm6dso32_fsm_enable_a_t::fsm7_en, lsm6dso32_fsm_enable_a_t::fsm8_en, lsm6dso32_fsm_enable_b_t::fsm9_en, lsm6dso32_emb_func_en_b_t::fsm_en, lsm6dso32_emb_fsm_enable_t::fsm_enable_a, lsm6dso32_emb_fsm_enable_t::fsm_enable_b, LSM6DSO32_EMB_FUNC_EN_B, LSM6DSO32_EMBEDDED_FUNC_BANK, LSM6DSO32_FSM_ENABLE_A, LSM6DSO32_FSM_ENABLE_B, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), LSM6DSO32_USER_BANK, lsm6dso32_write_reg(), PROPERTY_DISABLE, and PROPERTY_ENABLE.

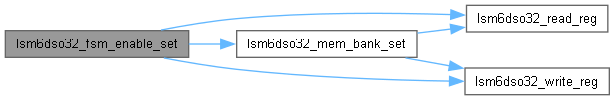

Here is the call graph for this function:

lsm6dso32_fsm_init_get()

int32_t lsm6dso32_fsm_init_get	(	stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

FSM initialization request.[get].

Parameters

ctx	read / write interface definitions
val	change the values of fsm_init in reg FSM_INIT

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8687 of file lsm6dso32_reg.c.

{
  lsm6dso32_emb_func_init_b_t reg;
  int32_t ret;

  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_EMB_FUNC_INIT_B,
                             (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    *val = reg.fsm_init;
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References lsm6dso32_emb_func_init_b_t::fsm_init, LSM6DSO32_EMB_FUNC_INIT_B, LSM6DSO32_EMBEDDED_FUNC_BANK, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), and LSM6DSO32_USER_BANK.

Here is the call graph for this function:

lsm6dso32_fsm_init_set()

int32_t lsm6dso32_fsm_init_set	(	stmdev_ctx_t *	ctx,
		uint8_t	val
	)

FSM initialization request.[set].

Parameters

ctx	read / write interface definitions
val	change the values of fsm_init in reg FSM_INIT

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8651 of file lsm6dso32_reg.c.

{
  lsm6dso32_emb_func_init_b_t reg;
  int32_t ret;

  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_EMB_FUNC_INIT_B,
                             (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    reg.fsm_init = val;
    ret = lsm6dso32_write_reg(ctx, LSM6DSO32_EMB_FUNC_INIT_B,
                              (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References lsm6dso32_emb_func_init_b_t::fsm_init, LSM6DSO32_EMB_FUNC_INIT_B, LSM6DSO32_EMBEDDED_FUNC_BANK, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), LSM6DSO32_USER_BANK, and lsm6dso32_write_reg().

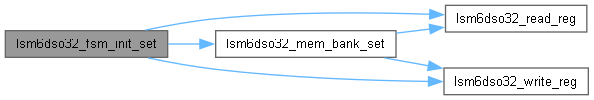

Here is the call graph for this function:

lsm6dso32_fsm_number_of_programs_get()

int32_t lsm6dso32_fsm_number_of_programs_get	(	stmdev_ctx_t *	ctx,
		uint8_t *	buff
	)

FSM number of programs register.[get].

Parameters

ctx	read / write interface definitions
buff	buffer that stores data read

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8797 of file lsm6dso32_reg.c.

{
  int32_t ret;

  ret = lsm6dso32_ln_pg_read_byte(ctx, LSM6DSO32_FSM_PROGRAMS, buff);

  return ret;
}

References LSM6DSO32_FSM_PROGRAMS, and lsm6dso32_ln_pg_read_byte().

Here is the call graph for this function:

lsm6dso32_fsm_number_of_programs_set()

int32_t lsm6dso32_fsm_number_of_programs_set	(	stmdev_ctx_t *	ctx,
		uint8_t *	buff
	)

FSM number of programs register.[set].

Parameters

ctx	read / write interface definitions
buff	buffer that contains data to write

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8779 of file lsm6dso32_reg.c.

{
  int32_t ret;

  ret = lsm6dso32_ln_pg_write_byte(ctx, LSM6DSO32_FSM_PROGRAMS, buff);

  return ret;
}

References LSM6DSO32_FSM_PROGRAMS, and lsm6dso32_ln_pg_write_byte().

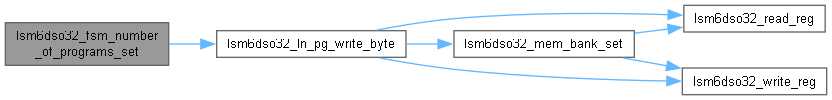

Here is the call graph for this function:

lsm6dso32_fsm_out_get()

int32_t lsm6dso32_fsm_out_get	(	stmdev_ctx_t *	ctx,
		lsm6dso32_fsm_out_t *	val
	)

FSM output registers[get].

Parameters

ctx	read / write interface definitions
val	struct of registers from FSM_OUTS1 to FSM_OUTS16

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8530 of file lsm6dso32_reg.c.

{
  int32_t ret;

  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_FSM_OUTS1, (uint8_t *) &val,
                             16);
  }

  if (ret == 0)
  {
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References LSM6DSO32_EMBEDDED_FUNC_BANK, LSM6DSO32_FSM_OUTS1, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), and LSM6DSO32_USER_BANK.

Here is the call graph for this function:

lsm6dso32_fsm_start_address_get()

int32_t lsm6dso32_fsm_start_address_get	(	stmdev_ctx_t *	ctx,
		uint16_t *	val
	)

FSM start address register (r/w). First available address is 0x033C.[get].

Parameters

ctx	read / write interface definitions
buff	buffer that stores data read

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8846 of file lsm6dso32_reg.c.

{
  uint8_t buff[2];
  int32_t ret;

  ret = lsm6dso32_ln_pg_read_byte(ctx, LSM6DSO32_FSM_START_ADD_L,
                                  &buff[0]);

  if (ret == 0)
  {
    ret = lsm6dso32_ln_pg_read_byte(ctx, LSM6DSO32_FSM_START_ADD_H,
                                    &buff[1]);
    *val = buff[1];
    *val = (*val * 256U) +  buff[0];
  }

  return ret;
}

References LSM6DSO32_FSM_START_ADD_H, LSM6DSO32_FSM_START_ADD_L, and lsm6dso32_ln_pg_read_byte().

Here is the call graph for this function:

lsm6dso32_fsm_start_address_set()

int32_t lsm6dso32_fsm_start_address_set	(	stmdev_ctx_t *	ctx,
		uint16_t	val
	)

FSM start address register (r/w). First available address is 0x033C.[set].

Parameters

ctx	read / write interface definitions
buff	buffer that contains data to write

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8816 of file lsm6dso32_reg.c.

{
  uint8_t buff[2];
  int32_t ret;

  buff[1] = (uint8_t)(val / 256U);
  buff[0] = (uint8_t)(val - (buff[1] * 256U));
  ret = lsm6dso32_ln_pg_write_byte(ctx, LSM6DSO32_FSM_START_ADD_L,
                                   &buff[0]);

  if (ret == 0)
  {
    ;
    ret = lsm6dso32_ln_pg_write_byte(ctx, LSM6DSO32_FSM_START_ADD_H,
                                     &buff[1]);
  }

  return ret;
}

References LSM6DSO32_FSM_START_ADD_H, LSM6DSO32_FSM_START_ADD_L, and lsm6dso32_ln_pg_write_byte().

Here is the call graph for this function:

lsm6dso32_long_clr_get()

int32_t lsm6dso32_long_clr_get	(	stmdev_ctx_t *	ctx,
		lsm6dso32_fsm_lc_clr_t *	val
	)

Clear FSM long counter value.[get].

Parameters

ctx	read / write interface definitions
val	Get the values of fsm_lc_clr in reg FSM_LONG_COUNTER_CLEAR

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8478 of file lsm6dso32_reg.c.

{
  lsm6dso32_fsm_long_counter_clear_t reg;
  int32_t ret;

  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_FSM_LONG_COUNTER_CLEAR,
                             (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    switch (reg.fsm_lc_clr)
    {
      case LSM6DSO32_LC_NORMAL:
        *val = LSM6DSO32_LC_NORMAL;
        break;

      case LSM6DSO32_LC_CLEAR:
        *val = LSM6DSO32_LC_CLEAR;
        break;

      case LSM6DSO32_LC_CLEAR_DONE:
        *val = LSM6DSO32_LC_CLEAR_DONE;
        break;

      default:
        *val = LSM6DSO32_LC_NORMAL;
        break;
    }
  }

  if (ret == 0)
  {
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References lsm6dso32_fsm_long_counter_clear_t::fsm_lc_clr, LSM6DSO32_EMBEDDED_FUNC_BANK, LSM6DSO32_FSM_LONG_COUNTER_CLEAR, LSM6DSO32_LC_CLEAR, LSM6DSO32_LC_CLEAR_DONE, LSM6DSO32_LC_NORMAL, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), and LSM6DSO32_USER_BANK.

Here is the call graph for this function:

lsm6dso32_long_clr_set()

int32_t lsm6dso32_long_clr_set	(	stmdev_ctx_t *	ctx,
		lsm6dso32_fsm_lc_clr_t	val
	)

Clear FSM long counter value.[set].

Parameters

ctx	read / write interface definitions
val	change the values of fsm_lc_clr in reg FSM_LONG_COUNTER_CLEAR

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8440 of file lsm6dso32_reg.c.

{
  lsm6dso32_fsm_long_counter_clear_t reg;
  int32_t ret;

  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_FSM_LONG_COUNTER_CLEAR,
                             (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    reg. fsm_lc_clr = (uint8_t)val;
    ret = lsm6dso32_write_reg(ctx, LSM6DSO32_FSM_LONG_COUNTER_CLEAR,
                              (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References LSM6DSO32_EMBEDDED_FUNC_BANK, LSM6DSO32_FSM_LONG_COUNTER_CLEAR, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), LSM6DSO32_USER_BANK, and lsm6dso32_write_reg().

Here is the call graph for this function:

lsm6dso32_long_cnt_flag_data_ready_get()

int32_t lsm6dso32_long_cnt_flag_data_ready_get	(	stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

Interrupt status bit for FSM long counter timeout interrupt event.[get].

Parameters

ctx	read / write interface definitions
val	change the values of is_fsm_lc in reg EMB_FUNC_STATUS

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8171 of file lsm6dso32_reg.c.

{
  lsm6dso32_emb_func_status_t reg;
  int32_t ret;

  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_EMB_FUNC_STATUS,
                             (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    *val = reg.is_fsm_lc;
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References lsm6dso32_emb_func_status_t::is_fsm_lc, LSM6DSO32_EMB_FUNC_STATUS, LSM6DSO32_EMBEDDED_FUNC_BANK, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), and LSM6DSO32_USER_BANK.

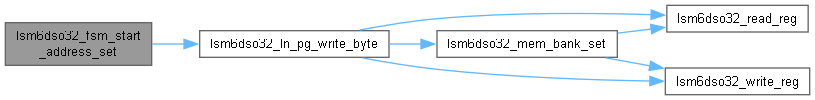

Here is the call graph for this function:

lsm6dso32_long_cnt_get()

int32_t lsm6dso32_long_cnt_get	(	stmdev_ctx_t *	ctx,
		uint16_t *	val
	)

FSM long counter status register. Long counter value is an unsigned integer value (16-bit format).[get].

Parameters

ctx	read / write interface definitions
buff	buffer that stores data read

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8409 of file lsm6dso32_reg.c.

{
  uint8_t buff[2];
  int32_t ret;

  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_FSM_LONG_COUNTER_L, buff, 2);
  }

  if (ret == 0)
  {
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
    *val = buff[1];
    *val = (*val * 256U) +  buff[0];
  }

  return ret;
}

References LSM6DSO32_EMBEDDED_FUNC_BANK, LSM6DSO32_FSM_LONG_COUNTER_L, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), and LSM6DSO32_USER_BANK.

Here is the call graph for this function:

lsm6dso32_long_cnt_int_value_get()

int32_t lsm6dso32_long_cnt_int_value_get	(	stmdev_ctx_t *	ctx,
		uint16_t *	val
	)

FSM long counter timeout register (r/w). The long counter timeout value is an unsigned integer value (16-bit format). When the long counter value reached this value, the FSM generates an interrupt.[get].

Parameters

ctx	read / write interface definitions
buff	buffer that stores data read

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8751 of file lsm6dso32_reg.c.

{
  uint8_t buff[2];
  int32_t ret;

  ret = lsm6dso32_ln_pg_read_byte(ctx, LSM6DSO32_FSM_LC_TIMEOUT_L,
                                  &buff[0]);

  if (ret == 0)
  {
    ret = lsm6dso32_ln_pg_read_byte(ctx, LSM6DSO32_FSM_LC_TIMEOUT_H,
                                    &buff[1]);
    *val = buff[1];
    *val = (*val * 256U) +  buff[0];
  }

  return ret;
}

References LSM6DSO32_FSM_LC_TIMEOUT_H, LSM6DSO32_FSM_LC_TIMEOUT_L, and lsm6dso32_ln_pg_read_byte().

Here is the call graph for this function:

lsm6dso32_long_cnt_int_value_set()

int32_t lsm6dso32_long_cnt_int_value_set	(	stmdev_ctx_t *	ctx,
		uint16_t	val
	)

FSM long counter timeout register (r/w). The long counter timeout value is an unsigned integer value (16-bit format). When the long counter value reached this value, the FSM generates an interrupt.[set].

Parameters

ctx	read / write interface definitions
buff	buffer that contains data to write

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8720 of file lsm6dso32_reg.c.

{
  uint8_t buff[2];
  int32_t ret;

  buff[1] = (uint8_t)(val / 256U);
  buff[0] = (uint8_t)(val - (buff[1] * 256U));
  ret = lsm6dso32_ln_pg_write_byte(ctx, LSM6DSO32_FSM_LC_TIMEOUT_L,
                                   &buff[0]);

  if (ret == 0)
  {
    ret = lsm6dso32_ln_pg_write_byte(ctx, LSM6DSO32_FSM_LC_TIMEOUT_H,
                                     &buff[1]);
  }

  return ret;
}

References LSM6DSO32_FSM_LC_TIMEOUT_H, LSM6DSO32_FSM_LC_TIMEOUT_L, and lsm6dso32_ln_pg_write_byte().

Here is the call graph for this function:

lsm6dso32_long_cnt_set()

int32_t lsm6dso32_long_cnt_set	(	stmdev_ctx_t *	ctx,
		uint16_t	val
	)

FSM long counter status register. Long counter value is an unsigned integer value (16-bit format).[set].

Parameters

ctx	read / write interface definitions
buff	buffer that contains data to write

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 8378 of file lsm6dso32_reg.c.

{
  uint8_t buff[2];
  int32_t ret;

  buff[1] = (uint8_t)(val / 256U);
  buff[0] = (uint8_t)(val - (buff[1] * 256U));
  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_write_reg(ctx, LSM6DSO32_FSM_LONG_COUNTER_L, buff, 2);
  }

  if (ret == 0)
  {
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References LSM6DSO32_EMBEDDED_FUNC_BANK, LSM6DSO32_FSM_LONG_COUNTER_L, lsm6dso32_mem_bank_set(), LSM6DSO32_USER_BANK, and lsm6dso32_write_reg().

Here is the call graph for this function:
