sensors common types

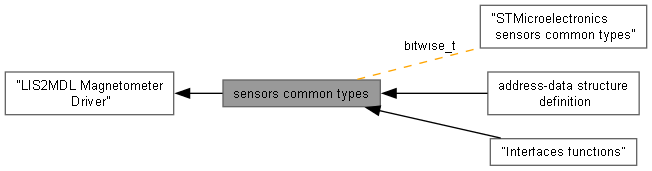

Collaboration diagram for sensors common types:

Modules
	address-data structure definition
	This structure is useful to load a predefined configuration of a sensor. You can create a sensor configuration by your own or using Unico / Unicleo tools available on STMicroelectronics web site.
	"Interfaces functions"
	This section provide a set of functions used to read and write a generic register of the device. MANDATORY: return 0 -> no Error.

Data Structures
struct	bitwise_t

Macros
#define	MEMS_SHARED_TYPES
#define	PROPERTY_DISABLE   (0U)
#define	PROPERTY_ENABLE   (1U)
#define	MEMS_UCF_SHARED_TYPES

Detailed Description

Macro Definition Documentation

MEMS_SHARED_TYPES

#define MEMS_SHARED_TYPES

Definition at line 76 of file lis2mdl_reg.h.

MEMS_UCF_SHARED_TYPES

#define MEMS_UCF_SHARED_TYPES

Definition at line 135 of file lis2mdl_reg.h.

PROPERTY_DISABLE

#define PROPERTY_DISABLE   (0U)

Definition at line 101 of file lis2mdl_reg.h.

PROPERTY_ENABLE

#define PROPERTY_ENABLE   (1U)

Definition at line 102 of file lis2mdl_reg.h.
