This file provides a set of functions needed to drive the lis2mdl enhanced inertial module. More...

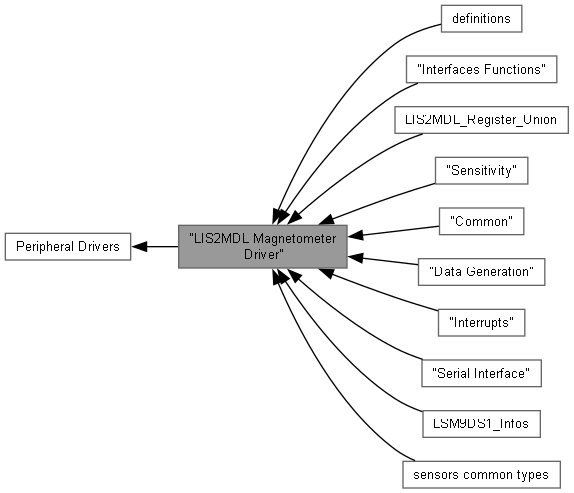

Collaboration diagram for "LIS2MDL Magnetometer Driver":

Modules
	"Interfaces Functions"
	This section provide a set of functions used to read and write a generic register of the device. MANDATORY: return 0 -> no Error.

	"Sensitivity"
	These functions convert raw-data into engineering units.

	"Data Generation"
	This section group all the functions concerning data generation.

	"Common"
	This section group common useful functions.

	"Interrupts"
	This section group all the functions that manage interrupts.

	"Serial Interface"
	This section group all the functions concerning serial interface management.

	definitions

	sensors common types

	LSM9DS1_Infos

	LIS2MDL_Register_Union
	This union group all the registers having a bit-field description. This union is useful but it's not needed by the driver.

Data Structures
struct	lis2mdl_cfg_reg_a_t

struct	lis2mdl_cfg_reg_b_t

struct	lis2mdl_cfg_reg_c_t

struct	lis2mdl_int_crtl_reg_t

struct	lis2mdl_int_source_reg_t

struct	lis2mdl_status_reg_t

Macros
#define	LIS2MDL_OFFSET_X_REG_L 0x45U

#define	LIS2MDL_OFFSET_X_REG_H 0x46U

#define	LIS2MDL_OFFSET_Y_REG_L 0x47U

#define	LIS2MDL_OFFSET_Y_REG_H 0x48U

#define	LIS2MDL_OFFSET_Z_REG_L 0x49U

#define	LIS2MDL_OFFSET_Z_REG_H 0x4AU

#define	LIS2MDL_WHO_AM_I 0x4FU

#define	LIS2MDL_CFG_REG_A 0x60U

#define	LIS2MDL_CFG_REG_B 0x61U

#define	LIS2MDL_CFG_REG_C 0x62U

#define	LIS2MDL_INT_CRTL_REG 0x63U

#define	LIS2MDL_INT_SOURCE_REG 0x64U

#define	LIS2MDL_INT_THS_L_REG 0x65U

#define	LIS2MDL_INT_THS_H_REG 0x66U

#define	LIS2MDL_STATUS_REG 0x67U

#define	LIS2MDL_OUTX_L_REG 0x68U

#define	LIS2MDL_OUTX_H_REG 0x69U

#define	LIS2MDL_OUTY_L_REG 0x6AU

#define	LIS2MDL_OUTY_H_REG 0x6BU

#define	LIS2MDL_OUTZ_L_REG 0x6CU

#define	LIS2MDL_OUTZ_H_REG 0x6DU

#define	LIS2MDL_TEMP_OUT_L_REG 0x6EU

#define	LIS2MDL_TEMP_OUT_H_REG 0x6FU

#define	__weak __attribute__((weak))

Enumerations
enum	lis2mdl_md_t { LIS2MDL_CONTINUOUS_MODE = 0 , LIS2MDL_SINGLE_TRIGGER = 1 , LIS2MDL_POWER_DOWN = 2 }

enum	lis2mdl_odr_t { LIS2MDL_ODR_10Hz = 0 , LIS2MDL_ODR_20Hz = 1 , LIS2MDL_ODR_50Hz = 2 , LIS2MDL_ODR_100Hz = 3 }

enum	lis2mdl_lp_t { LIS2MDL_HIGH_RESOLUTION = 0 , LIS2MDL_LOW_POWER = 1 }

enum	lis2mdl_lpf_t { LIS2MDL_ODR_DIV_2 = 0 , LIS2MDL_ODR_DIV_4 = 1 }

enum	lis2mdl_set_rst_t { LIS2MDL_SET_SENS_ODR_DIV_63 = 0 , LIS2MDL_SENS_OFF_CANC_EVERY_ODR = 1 , LIS2MDL_SET_SENS_ONLY_AT_POWER_ON = 2 }

enum	lis2mdl_ble_t { LIS2MDL_LSB_AT_LOW_ADD = 0 , LIS2MDL_MSB_AT_LOW_ADD = 1 }

enum	lis2mdl_int_on_dataoff_t { LIS2MDL_CHECK_BEFORE = 0 , LIS2MDL_CHECK_AFTER = 1 }

enum	lis2mdl_sim_t { LIS2MDL_SPI_4_WIRE = 1 , LIS2MDL_SPI_3_WIRE = 0 }

enum	lis2mdl_i2c_dis_t { LIS2MDL_I2C_ENABLE = 0 , LIS2MDL_I2C_DISABLE = 1 }

Functions
int32_t	lis2mdl_read_reg (const stmdev_ctx_t ctx, uint8_t reg, uint8_t data, uint16_t len)
	Read generic device register.

int32_t	lis2mdl_write_reg (const stmdev_ctx_t ctx, uint8_t reg, uint8_t data, uint16_t len)
	Write generic device register.

float_t	lis2mdl_from_lsb_to_mgauss (int16_t lsb)

float_t	lis2mdl_from_lsb_to_celsius (int16_t lsb)

float_t	lis2mdl_from_lsb_to_nanotesla (int16_t lsb)
	Converts raw magnetic data to nanotesla (nT). Sensitivity: 1 LSB = 1.5 mG = 150 nT.

int32_t	lis2mdl_mag_user_offset_set (const stmdev_ctx_t ctx, int16_t val)
	These registers comprise a 3 group of 16-bit number and represent hard-iron offset in order to compensate environmental effects. Data format is the same of output data raw: two’s complement with 1LSb = 1.5mG. These values act on the magnetic output data value in order to delete the environmental offset.[set].

int32_t	lis2mdl_mag_user_offset_get (const stmdev_ctx_t ctx, int16_t val)
	These registers comprise a 3 group of 16-bit number and represent hard-iron offset in order to compensate environmental effects. Data format is the same of output data raw: two’s complement with 1LSb = 1.5mG. These values act on the magnetic output data value in order to delete the environmental offset.[get].

int32_t	lis2mdl_operating_mode_set (const stmdev_ctx_t *ctx, lis2mdl_md_t val)
	Operating mode selection.[set].

int32_t	lis2mdl_operating_mode_get (const stmdev_ctx_t ctx, lis2mdl_md_t val)
	Operating mode selection.[get].

int32_t	lis2mdl_data_rate_set (const stmdev_ctx_t *ctx, lis2mdl_odr_t val)
	Output data rate selection.[set].

int32_t	lis2mdl_data_rate_get (const stmdev_ctx_t ctx, lis2mdl_odr_t val)
	Output data rate selection.[get].

int32_t	lis2mdl_power_mode_set (const stmdev_ctx_t *ctx, lis2mdl_lp_t val)
	Enables high-resolution/low-power mode.[set].

int32_t	lis2mdl_power_mode_get (const stmdev_ctx_t ctx, lis2mdl_lp_t val)
	Enables high-resolution/low-power mode.[get].

int32_t	lis2mdl_offset_temp_comp_set (const stmdev_ctx_t *ctx, uint8_t val)
	Enables the magnetometer temperature compensation.[set].

int32_t	lis2mdl_offset_temp_comp_get (const stmdev_ctx_t ctx, uint8_t val)
	Enables the magnetometer temperature compensation.[get].

int32_t	lis2mdl_low_pass_bandwidth_set (const stmdev_ctx_t *ctx, lis2mdl_lpf_t val)
	Low-pass bandwidth selection.[set].

int32_t	lis2mdl_low_pass_bandwidth_get (const stmdev_ctx_t ctx, lis2mdl_lpf_t val)
	Low-pass bandwidth selection.[get].

int32_t	lis2mdl_set_rst_mode_set (const stmdev_ctx_t *ctx, lis2mdl_set_rst_t val)
	Reset mode.[set].

int32_t	lis2mdl_set_rst_mode_get (const stmdev_ctx_t ctx, lis2mdl_set_rst_t val)
	Reset mode.[get].

int32_t	lis2mdl_set_rst_sensor_single_set (const stmdev_ctx_t *ctx, uint8_t val)
	Enables offset cancellation in single measurement mode. The OFF_CANC bit must be set to 1 when enabling offset cancellation in single measurement mode this means a call function: set_rst_mode(SENS_OFF_CANC_EVERY_ODR) is need.[set].

int32_t	lis2mdl_set_rst_sensor_single_get (const stmdev_ctx_t ctx, uint8_t val)
	Enables offset cancellation in single measurement mode. The OFF_CANC bit must be set to 1 when enabling offset cancellation in single measurement mode this means a call function: set_rst_mode(SENS_OFF_CANC_EVERY_ODR) is need.[get].

int32_t	lis2mdl_block_data_update_set (const stmdev_ctx_t *ctx, uint8_t val)
	Blockdataupdate.[set].

int32_t	lis2mdl_block_data_update_get (const stmdev_ctx_t ctx, uint8_t val)
	Blockdataupdate.[get].

int32_t	lis2mdl_mag_data_ready_get (const stmdev_ctx_t ctx, uint8_t val)
	Magnetic set of data available.[get].

int32_t	lis2mdl_mag_data_ovr_get (const stmdev_ctx_t ctx, uint8_t val)
	Magnetic set of data overrun.[get].

int32_t	lis2mdl_magnetic_raw_get (const stmdev_ctx_t ctx, int16_t val)
	Magnetic output value.[get].

int32_t	lis2mdl_temperature_raw_get (const stmdev_ctx_t ctx, int16_t val)
	Temperature output value.[get].

int32_t	lis2mdl_device_id_get (const stmdev_ctx_t ctx, uint8_t buff)
	DeviceWhoamI.[get].

int32_t	lis2mdl_reset_set (const stmdev_ctx_t *ctx, uint8_t val)
	Software reset. Restore the default values in user registers.[set].

int32_t	lis2mdl_reset_get (const stmdev_ctx_t ctx, uint8_t val)
	Software reset. Restore the default values in user registers.[get].

int32_t	lis2mdl_boot_set (const stmdev_ctx_t *ctx, uint8_t val)
	Reboot memory content. Reload the calibration parameters.[set].

int32_t	lis2mdl_boot_get (const stmdev_ctx_t ctx, uint8_t val)
	Reboot memory content. Reload the calibration parameters.[get].

int32_t	lis2mdl_self_test_set (const stmdev_ctx_t *ctx, uint8_t val)
	Selftest.[set].

int32_t	lis2mdl_self_test_get (const stmdev_ctx_t ctx, uint8_t val)
	Selftest.[get].

int32_t	lis2mdl_data_format_set (const stmdev_ctx_t *ctx, lis2mdl_ble_t val)
	Big/Little Endian data selection.[set].

int32_t	lis2mdl_data_format_get (const stmdev_ctx_t ctx, lis2mdl_ble_t val)
	Big/Little Endian data selection.[get].

int32_t	lis2mdl_status_get (const stmdev_ctx_t ctx, lis2mdl_status_reg_t val)
	Info about device status.[get].

int32_t	lis2mdl_offset_int_conf_set (const stmdev_ctx_t *ctx, lis2mdl_int_on_dataoff_t val)
	The interrupt block recognition checks data after/before the hard-iron correction to discover the interrupt.[set].

int32_t	lis2mdl_offset_int_conf_get (const stmdev_ctx_t ctx, lis2mdl_int_on_dataoff_t val)
	The interrupt block recognition checks data after/before the hard-iron correction to discover the interrupt.[get].

int32_t	lis2mdl_drdy_on_pin_set (const stmdev_ctx_t *ctx, uint8_t val)
	Data-ready signal on INT_DRDY pin.[set].

int32_t	lis2mdl_drdy_on_pin_get (const stmdev_ctx_t ctx, uint8_t val)
	Data-ready signal on INT_DRDY pin.[get].

int32_t	lis2mdl_int_on_pin_set (const stmdev_ctx_t *ctx, uint8_t val)
	Interrupt signal on INT_DRDY pin.[set].

int32_t	lis2mdl_int_on_pin_get (const stmdev_ctx_t ctx, uint8_t val)
	Interrupt signal on INT_DRDY pin.[get].

int32_t	lis2mdl_int_gen_conf_set (const stmdev_ctx_t ctx, lis2mdl_int_crtl_reg_t val)
	Interrupt generator configuration register.[set].

int32_t	lis2mdl_int_gen_conf_get (const stmdev_ctx_t ctx, lis2mdl_int_crtl_reg_t val)
	Interrupt generator configuration register.[get].

int32_t	lis2mdl_int_gen_source_get (const stmdev_ctx_t ctx, lis2mdl_int_source_reg_t val)
	Interrupt generator source register.[get].

int32_t	lis2mdl_int_gen_threshold_set (const stmdev_ctx_t *ctx, uint16_t val)
	User-defined threshold value for xl interrupt event on generator. Data format is the same of output data raw: two’s complement with 1LSb = 1.5mG.[set].

int32_t	lis2mdl_int_gen_threshold_get (const stmdev_ctx_t ctx, uint16_t val)
	User-defined threshold value for xl interrupt event on generator. Data format is the same of output data raw: two’s complement with 1LSb = 1.5mG.[get].

int32_t	lis2mdl_spi_mode_set (const stmdev_ctx_t *ctx, lis2mdl_sim_t val)
	SPI Serial Interface Mode selection.[set].

int32_t	lis2mdl_spi_mode_get (const stmdev_ctx_t ctx, lis2mdl_sim_t val)
	SPI Serial Interface Mode selection.[get].

int32_t	lis2mdl_i2c_interface_set (const stmdev_ctx_t *ctx, lis2mdl_i2c_dis_t val)
	Enable/Disable I2C interface.[set].

int32_t	lis2mdl_i2c_interface_get (const stmdev_ctx_t ctx, lis2mdl_i2c_dis_t val)
	Enable/Disable I2C interface.[get].

int32_t	lis2mdl_init (stmdev_ctx_t *ctx)
	Initialize the LIS2MDL sensor.

int32_t	lis2mdl_init_2 (stmdev_ctx_t *ctx)

Detailed Description

This file provides a set of functions needed to drive the lis2mdl enhanced inertial module.

Macro Definition Documentation

◆ __weak

#define __weak __attribute__((weak))

Definition at line 362 of file lis2mdl_reg.h.

◆ LIS2MDL_CFG_REG_A

#define LIS2MDL_CFG_REG_A 0x60U

Definition at line 189 of file lis2mdl_reg.h.

◆ LIS2MDL_CFG_REG_B

#define LIS2MDL_CFG_REG_B 0x61U

Definition at line 209 of file lis2mdl_reg.h.

◆ LIS2MDL_CFG_REG_C

#define LIS2MDL_CFG_REG_C 0x62U

Definition at line 227 of file lis2mdl_reg.h.

◆ LIS2MDL_INT_CRTL_REG

#define LIS2MDL_INT_CRTL_REG 0x63U

Definition at line 251 of file lis2mdl_reg.h.

◆ LIS2MDL_INT_SOURCE_REG

#define LIS2MDL_INT_SOURCE_REG 0x64U

Definition at line 273 of file lis2mdl_reg.h.

◆ LIS2MDL_INT_THS_H_REG

#define LIS2MDL_INT_THS_H_REG 0x66U

Definition at line 298 of file lis2mdl_reg.h.

◆ LIS2MDL_INT_THS_L_REG

#define LIS2MDL_INT_THS_L_REG 0x65U

Definition at line 297 of file lis2mdl_reg.h.

◆ LIS2MDL_OFFSET_X_REG_H

#define LIS2MDL_OFFSET_X_REG_H 0x46U

Definition at line 183 of file lis2mdl_reg.h.

◆ LIS2MDL_OFFSET_X_REG_L

#define LIS2MDL_OFFSET_X_REG_L 0x45U

Definition at line 182 of file lis2mdl_reg.h.

◆ LIS2MDL_OFFSET_Y_REG_H

#define LIS2MDL_OFFSET_Y_REG_H 0x48U

Definition at line 185 of file lis2mdl_reg.h.

◆ LIS2MDL_OFFSET_Y_REG_L

#define LIS2MDL_OFFSET_Y_REG_L 0x47U

Definition at line 184 of file lis2mdl_reg.h.

◆ LIS2MDL_OFFSET_Z_REG_H

#define LIS2MDL_OFFSET_Z_REG_H 0x4AU

Definition at line 187 of file lis2mdl_reg.h.

◆ LIS2MDL_OFFSET_Z_REG_L

#define LIS2MDL_OFFSET_Z_REG_L 0x49U

Definition at line 186 of file lis2mdl_reg.h.

◆ LIS2MDL_OUTX_H_REG

#define LIS2MDL_OUTX_H_REG 0x69U

Definition at line 324 of file lis2mdl_reg.h.

◆ LIS2MDL_OUTX_L_REG

#define LIS2MDL_OUTX_L_REG 0x68U

Definition at line 323 of file lis2mdl_reg.h.

◆ LIS2MDL_OUTY_H_REG

#define LIS2MDL_OUTY_H_REG 0x6BU

Definition at line 326 of file lis2mdl_reg.h.

◆ LIS2MDL_OUTY_L_REG

#define LIS2MDL_OUTY_L_REG 0x6AU

Definition at line 325 of file lis2mdl_reg.h.

◆ LIS2MDL_OUTZ_H_REG

#define LIS2MDL_OUTZ_H_REG 0x6DU

Definition at line 328 of file lis2mdl_reg.h.

◆ LIS2MDL_OUTZ_L_REG

#define LIS2MDL_OUTZ_L_REG 0x6CU

Definition at line 327 of file lis2mdl_reg.h.

◆ LIS2MDL_STATUS_REG

#define LIS2MDL_STATUS_REG 0x67U

Definition at line 299 of file lis2mdl_reg.h.

◆ LIS2MDL_TEMP_OUT_H_REG

#define LIS2MDL_TEMP_OUT_H_REG 0x6FU

Definition at line 330 of file lis2mdl_reg.h.

◆ LIS2MDL_TEMP_OUT_L_REG

#define LIS2MDL_TEMP_OUT_L_REG 0x6EU

Definition at line 329 of file lis2mdl_reg.h.

◆ LIS2MDL_WHO_AM_I

#define LIS2MDL_WHO_AM_I 0x4FU

Definition at line 188 of file lis2mdl_reg.h.

Enumeration Type Documentation

◆ lis2mdl_ble_t

enum lis2mdl_ble_t

Enumerator
LIS2MDL_LSB_AT_LOW_ADD
LIS2MDL_MSB_AT_LOW_ADD

Definition at line 471 of file lis2mdl_reg.h.

{
  LIS2MDL_LSB_AT_LOW_ADD  = 0,
  LIS2MDL_MSB_AT_LOW_ADD  = 1,
} lis2mdl_ble_t;

◆ lis2mdl_i2c_dis_t

enum lis2mdl_i2c_dis_t

Enumerator
LIS2MDL_I2C_ENABLE
LIS2MDL_I2C_DISABLE

Definition at line 519 of file lis2mdl_reg.h.

{
  LIS2MDL_I2C_ENABLE   = 0,
  LIS2MDL_I2C_DISABLE  = 1,
} lis2mdl_i2c_dis_t;

◆ lis2mdl_int_on_dataoff_t

enum lis2mdl_int_on_dataoff_t

Enumerator
LIS2MDL_CHECK_BEFORE
LIS2MDL_CHECK_AFTER

Definition at line 483 of file lis2mdl_reg.h.

{
  LIS2MDL_CHECK_BEFORE  = 0,
  LIS2MDL_CHECK_AFTER   = 1,
} lis2mdl_int_on_dataoff_t;

◆ lis2mdl_lp_t

enum lis2mdl_lp_t

Enumerator
LIS2MDL_HIGH_RESOLUTION
LIS2MDL_LOW_POWER

Definition at line 411 of file lis2mdl_reg.h.

{
  LIS2MDL_HIGH_RESOLUTION  = 0,
  LIS2MDL_LOW_POWER        = 1,
} lis2mdl_lp_t;

◆ lis2mdl_lpf_t

enum lis2mdl_lpf_t

Enumerator
LIS2MDL_ODR_DIV_2
LIS2MDL_ODR_DIV_4

Definition at line 422 of file lis2mdl_reg.h.

{
  LIS2MDL_ODR_DIV_2  = 0,
  LIS2MDL_ODR_DIV_4  = 1,
} lis2mdl_lpf_t;

◆ lis2mdl_md_t

enum lis2mdl_md_t

Enumerator
LIS2MDL_CONTINUOUS_MODE
LIS2MDL_SINGLE_TRIGGER
LIS2MDL_POWER_DOWN

Definition at line 390 of file lis2mdl_reg.h.

{
  LIS2MDL_CONTINUOUS_MODE  = 0,
  LIS2MDL_SINGLE_TRIGGER   = 1,
  LIS2MDL_POWER_DOWN       = 2,
} lis2mdl_md_t;

◆ lis2mdl_odr_t

enum lis2mdl_odr_t

Enumerator
LIS2MDL_ODR_10Hz
LIS2MDL_ODR_20Hz
LIS2MDL_ODR_50Hz
LIS2MDL_ODR_100Hz

Definition at line 401 of file lis2mdl_reg.h.

{
  LIS2MDL_ODR_10Hz   = 0,
  LIS2MDL_ODR_20Hz   = 1,
  LIS2MDL_ODR_50Hz   = 2,
  LIS2MDL_ODR_100Hz  = 3,
} lis2mdl_odr_t;

◆ lis2mdl_set_rst_t

enum lis2mdl_set_rst_t

Enumerator
LIS2MDL_SET_SENS_ODR_DIV_63
LIS2MDL_SENS_OFF_CANC_EVERY_ODR
LIS2MDL_SET_SENS_ONLY_AT_POWER_ON

Definition at line 432 of file lis2mdl_reg.h.

{
  LIS2MDL_SET_SENS_ODR_DIV_63        = 0,
  LIS2MDL_SENS_OFF_CANC_EVERY_ODR    = 1,
  LIS2MDL_SET_SENS_ONLY_AT_POWER_ON  = 2,
} lis2mdl_set_rst_t;

◆ lis2mdl_sim_t

enum lis2mdl_sim_t

Enumerator
LIS2MDL_SPI_4_WIRE
LIS2MDL_SPI_3_WIRE

Definition at line 511 of file lis2mdl_reg.h.

{
  LIS2MDL_SPI_4_WIRE   = 1,
  LIS2MDL_SPI_3_WIRE   = 0,
} lis2mdl_sim_t;

Function Documentation

◆ lis2mdl_block_data_update_get()

int32_t lis2mdl_block_data_update_get	(	const stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

Blockdataupdate.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of bdu in reg CFG_REG_C.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 646 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_c_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);
  *val = reg.bdu;

  return ret;
}

References lis2mdl_cfg_reg_c_t::bdu, LIS2MDL_CFG_REG_C, and lis2mdl_read_reg().

Here is the call graph for this function:

◆ lis2mdl_block_data_update_set()

int32_t lis2mdl_block_data_update_set	(	const stmdev_ctx_t *	ctx,
		uint8_t	val
	)

Blockdataupdate.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of bdu in reg CFG_REG_C

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 622 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_c_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.bdu = val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);
  }

  return ret;
}

References lis2mdl_cfg_reg_c_t::bdu, LIS2MDL_CFG_REG_C, lis2mdl_read_reg(), and lis2mdl_write_reg().

Here is the call graph for this function:

◆ lis2mdl_boot_get()

int32_t lis2mdl_boot_get	(	const stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

Reboot memory content. Reload the calibration parameters.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of reboot in reg CFG_REG_A.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 843 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_a_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);
  *val = reg.reboot;

  return ret;
}

References LIS2MDL_CFG_REG_A, lis2mdl_read_reg(), and lis2mdl_cfg_reg_a_t::reboot.

Referenced by lis2mdl_init(), and lis2mdl_init_2().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lis2mdl_boot_set()

int32_t lis2mdl_boot_set	(	const stmdev_ctx_t *	ctx,
		uint8_t	val
	)

Reboot memory content. Reload the calibration parameters.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of reboot in reg CFG_REG_A

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 819 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_a_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.reboot = val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);
  }

  return ret;
}

References LIS2MDL_CFG_REG_A, lis2mdl_read_reg(), lis2mdl_write_reg(), and lis2mdl_cfg_reg_a_t::reboot.

Referenced by lis2mdl_init(), and lis2mdl_init_2().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lis2mdl_data_format_get()

int32_t lis2mdl_data_format_get	(	const stmdev_ctx_t *	ctx,
		lis2mdl_ble_t *	val
	)

Big/Little Endian data selection.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	Get the values of ble in reg CFG_REG_C.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 929 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_c_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);

  switch (reg.ble)
  {
    case LIS2MDL_LSB_AT_LOW_ADD:
      *val = LIS2MDL_LSB_AT_LOW_ADD;
      break;

    case LIS2MDL_MSB_AT_LOW_ADD:
      *val = LIS2MDL_MSB_AT_LOW_ADD;
      break;

    default:
      *val = LIS2MDL_LSB_AT_LOW_ADD;
      break;
  }

  return ret;
}

References lis2mdl_cfg_reg_c_t::ble, LIS2MDL_CFG_REG_C, LIS2MDL_LSB_AT_LOW_ADD, LIS2MDL_MSB_AT_LOW_ADD, and lis2mdl_read_reg().

Here is the call graph for this function:

◆ lis2mdl_data_format_set()

int32_t lis2mdl_data_format_set	(	const stmdev_ctx_t *	ctx,
		lis2mdl_ble_t	val
	)

Big/Little Endian data selection.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of ble in reg CFG_REG_C

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 905 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_c_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.ble = (uint8_t)val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);
  }

  return ret;
}

References lis2mdl_cfg_reg_c_t::ble, LIS2MDL_CFG_REG_C, lis2mdl_read_reg(), and lis2mdl_write_reg().

Here is the call graph for this function:

◆ lis2mdl_data_rate_get()

int32_t lis2mdl_data_rate_get	(	const stmdev_ctx_t *	ctx,
		lis2mdl_odr_t *	val
	)

Output data rate selection.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	Get the values of odr in reg CFG_REG_A.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 306 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_a_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);

  switch (reg.odr)
  {
    case LIS2MDL_ODR_10Hz:
      *val = LIS2MDL_ODR_10Hz;
      break;

    case LIS2MDL_ODR_20Hz:
      *val = LIS2MDL_ODR_20Hz;
      break;

    case LIS2MDL_ODR_50Hz:
      *val = LIS2MDL_ODR_50Hz;
      break;

    case LIS2MDL_ODR_100Hz:
      *val = LIS2MDL_ODR_100Hz;
      break;

    default:
      *val = LIS2MDL_ODR_10Hz;
      break;
  }

  return ret;
}

References LIS2MDL_CFG_REG_A, LIS2MDL_ODR_100Hz, LIS2MDL_ODR_10Hz, LIS2MDL_ODR_20Hz, LIS2MDL_ODR_50Hz, lis2mdl_read_reg(), and lis2mdl_cfg_reg_a_t::odr.

Here is the call graph for this function:

◆ lis2mdl_data_rate_set()

int32_t lis2mdl_data_rate_set	(	const stmdev_ctx_t *	ctx,
		lis2mdl_odr_t	val
	)

Output data rate selection.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of odr in reg CFG_REG_A

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 282 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_a_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.odr = (uint8_t)val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);
  }

  return ret;
}

References LIS2MDL_CFG_REG_A, lis2mdl_read_reg(), lis2mdl_write_reg(), and lis2mdl_cfg_reg_a_t::odr.

Here is the call graph for this function:

◆ lis2mdl_device_id_get()

int32_t lis2mdl_device_id_get	(	const stmdev_ctx_t *	ctx,
		uint8_t *	buff
	)

DeviceWhoamI.[get].

Parameters

ctx	read / write interface definitions.(ptr)
buff	that stores data read

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 759 of file lis2mdl_reg.c.

{
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_WHO_AM_I, buff, 1);

  return ret;
}

References lis2mdl_read_reg(), and LIS2MDL_WHO_AM_I.

Referenced by lis2mdl_init(), and lis2mdl_init_2().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lis2mdl_drdy_on_pin_get()

int32_t lis2mdl_drdy_on_pin_get	(	const stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

Data-ready signal on INT_DRDY pin.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of drdy_on_pin in reg CFG_REG_C.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 1077 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_c_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);
  *val = reg.drdy_on_pin;

  return ret;
}

References lis2mdl_cfg_reg_c_t::drdy_on_pin, LIS2MDL_CFG_REG_C, and lis2mdl_read_reg().

Here is the call graph for this function:

◆ lis2mdl_drdy_on_pin_set()

int32_t lis2mdl_drdy_on_pin_set	(	const stmdev_ctx_t *	ctx,
		uint8_t	val
	)

Data-ready signal on INT_DRDY pin.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of drdy_on_pin in reg CFG_REG_C

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 1053 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_c_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.drdy_on_pin = val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);
  }

  return ret;
}

References lis2mdl_cfg_reg_c_t::drdy_on_pin, LIS2MDL_CFG_REG_C, lis2mdl_read_reg(), and lis2mdl_write_reg().

Here is the call graph for this function:

◆ lis2mdl_from_lsb_to_celsius()

float_t lis2mdl_from_lsb_to_celsius ( int16_t lsb )

Definition at line 124 of file lis2mdl_reg.c.

{
  return (((float_t)lsb / 8.0f) + 25.0f);
}

◆ lis2mdl_from_lsb_to_mgauss()

float_t lis2mdl_from_lsb_to_mgauss ( int16_t lsb )

Definition at line 119 of file lis2mdl_reg.c.

{
  return ((float_t)lsb * 1.5f);
}

◆ lis2mdl_from_lsb_to_nanotesla()

float_t lis2mdl_from_lsb_to_nanotesla ( int16_t lsb )

Converts raw magnetic data to nanotesla (nT). Sensitivity: 1 LSB = 1.5 mG = 150 nT.

Parameters

lsb	raw data from sensor output register (16-bit)

Return values

magnetic field in nanotesla

Definition at line 137 of file lis2mdl_reg.c.

{
  return ((float_t)lsb * 150.0f);
}

◆ lis2mdl_i2c_interface_get()

int32_t lis2mdl_i2c_interface_get	(	const stmdev_ctx_t *	ctx,
		lis2mdl_i2c_dis_t *	val
	)

Enable/Disable I2C interface.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	Get the values of i2c_dis in reg CFG_REG_C.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 1332 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_c_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);

  switch (reg.i2c_dis)
  {
    case LIS2MDL_I2C_ENABLE:
      *val = LIS2MDL_I2C_ENABLE;
      break;

    case LIS2MDL_I2C_DISABLE:
      *val = LIS2MDL_I2C_DISABLE;
      break;

    default:
      *val = LIS2MDL_I2C_ENABLE;
      break;
  }

  return ret;
}

References lis2mdl_cfg_reg_c_t::i2c_dis, LIS2MDL_CFG_REG_C, LIS2MDL_I2C_DISABLE, LIS2MDL_I2C_ENABLE, and lis2mdl_read_reg().

Here is the call graph for this function:

◆ lis2mdl_i2c_interface_set()

int32_t lis2mdl_i2c_interface_set	(	const stmdev_ctx_t *	ctx,
		lis2mdl_i2c_dis_t	val
	)

Enable/Disable I2C interface.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of i2c_dis in reg CFG_REG_C

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 1307 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_c_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.i2c_dis = (uint8_t)val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);
  }

  return ret;
}

References lis2mdl_cfg_reg_c_t::i2c_dis, LIS2MDL_CFG_REG_C, lis2mdl_read_reg(), and lis2mdl_write_reg().

Here is the call graph for this function:

◆ lis2mdl_init()

int32_t lis2mdl_init ( stmdev_ctx_t * ctx )

Initialize the LIS2MDL sensor.

Parameters

ctx	Sensor context with SPI handle and platform functions

Return values

0	if OK, -1 if error or WHO_AM_I mismatch

Definition at line 1461 of file lis2mdl_reg.c.

{
  uint8_t who_am_i = 0;
  uint8_t val = 0; // Temporary variable for get functions
  lis2mdl_cfg_reg_a_t cfg_a;
  lis2mdl_cfg_reg_c_t cfg_c;


  if (ctx == NULL) return -1;


  ctx->write_reg = platform_spi_write;
  ctx->read_reg = platform_spi_read;
  ctx->handle = &hspi2; // Your SPI_HandleTypeDef

  // Check WHO_AM_I register
  if (lis2mdl_device_id_get(ctx, &who_am_i) != 0) return -1; // Error reading WHO_AM_I
  if (who_am_i != LIS2MDL_ID){
      return -1;
  }  // WHO_AM_I mismatch (LIS2MDL_ID should be 0x40 as per datasheet)

  // Perform a software reset
  if (lis2mdl_reset_set(ctx, 1) != 0) return -1;
  platform_delay(5); // Wait for reset to complete (datasheet doesn't specify, 5ms is a guess)
  do {
    if (lis2mdl_reset_get(ctx, &val) != 0) return -1;
  } while (val); // Poll SOFT_RST bit until it is cleared


  // Reboot memory content to reload calibration parameters
  if (lis2mdl_boot_set(ctx, 1) != 0) return -1;
  platform_delay(5); // Wait for boot to complete
   do {
    if (lis2mdl_boot_get(ctx, &val) != 0) return -1;
  } while (val); // Poll REBOOT bit until it is cleared

  // Configure for 4-wire SPI mode
  // Note: The LIS2MDL CS pin (pin 3) must be tied LOW to enable SPI mode.
  // This function configures the 4WSPI bit in CFG_REG_C for the SDO line.
  if (lis2mdl_spi_mode_set(ctx, LIS2MDL_SPI_4_WIRE) != 0) return -1;


  // Configure CFG_REG_A for:
  // - Temperature compensation enabled
  // - Continuous mode
  // - ODR 10 Hz
  // - High-resolution mode
  // This matches the datasheet startup example (CFG_REG_A = 0x80)

  // Method 1: Using individual set functions (less efficient due to multiple R-M-W)
  // if (lis2mdl_offset_temp_comp_set(ctx, 1) != 0) return -1;
  // if (lis2mdl_operating_mode_set(ctx, LIS2MDL_CONTINUOUS_MODE) != 0) return -1;
  // if (lis2mdl_data_rate_set(ctx, LIS2MDL_ODR_10HZ) != 0) return -1; // Assuming LIS2MDL_ODR_10HZ is defined
  // if (lis2mdl_power_mode_set(ctx, LIS2MDL_HIGH_RESOLUTION) != 0) return -1;

  // Method 2: Direct write to CFG_REG_A (more efficient)
  cfg_a.comp_temp_en = 1;
  cfg_a.reboot = 0;
  cfg_a.soft_rst = 0;
  cfg_a.lp = (uint8_t)LIS2MDL_HIGH_RESOLUTION; // Assuming LIS2MDL_HIGH_RESOLUTION = 0
  cfg_a.odr = (uint8_t)LIS2MDL_ODR_10Hz;       // Assuming LIS2MDL_ODR_10Hz = 0
  cfg_a.md = (uint8_t)LIS2MDL_CONTINUOUS_MODE; // Assuming LIS2MDL_CONTINUOUS_MODE = 0
  if (lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t*)&cfg_a, 1) != 0) return -1;


  // Configure CFG_REG_C for:
  // - Block Data Update (BDU) enabled
  // - Data Ready signal on INT/DRDY pin enabled (optional, as per datasheet startup example)
  // - 4-wire SPI is already set by lis2mdl_spi_mode_set above.

  // Method 1: Using individual set functions
  // if (lis2mdl_block_data_update_set(ctx, 1) != 0) return -1;
  // if (lis2mdl_drdy_on_pin_set(ctx, 1) != 0) return -1; // Optional: enable DRDY on pin

  // Method 2: Direct write to CFG_REG_C (more efficient, considers 4WSPI already set)
  if (lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t*)&cfg_c, 1) != 0) return -1;
  cfg_c.bdu = 1;
  cfg_c.drdy_on_pin = 1; // Enable DRDY on pin as per datasheet example
  // cfg_c._4wspi is already set by lis2mdl_spi_mode_set, no need to change it here
  // unless lis2mdl_spi_mode_set is not called before this.
  // For safety, ensure it's set if not using the dedicated function earlier:
  // cfg_c._4wspi = 1; // If LIS2MDL_SPI_4_WIRE is desired
  cfg_c.i2c_dis = 1; // Disable I2C if exclusively using SPI
  cfg_c.int_on_pin = 0; // Disable interrupt on pin unless specifically needed
  cfg_c.self_test = 0; // Disable self-test
  cfg_c.ble = (uint8_t)LIS2MDL_LSB_AT_LOW_ADD; // Default data format

  if (lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t*)&cfg_c, 1) != 0) return -1;


  // Sensor is now initialized with basic settings.
  // Further configuration (e.g., interrupts, thresholds) can be done as needed.
  return 0; // Success
}

References lis2mdl_cfg_reg_c_t::bdu, lis2mdl_cfg_reg_c_t::ble, lis2mdl_cfg_reg_a_t::comp_temp_en, lis2mdl_cfg_reg_c_t::drdy_on_pin, stmdev_ctx_t::handle, hspi2, lis2mdl_cfg_reg_c_t::i2c_dis, lis2mdl_cfg_reg_c_t::int_on_pin, lis2mdl_boot_get(), lis2mdl_boot_set(), LIS2MDL_CFG_REG_A, LIS2MDL_CFG_REG_C, LIS2MDL_CONTINUOUS_MODE, lis2mdl_device_id_get(), LIS2MDL_HIGH_RESOLUTION, LIS2MDL_ID, LIS2MDL_LSB_AT_LOW_ADD, LIS2MDL_ODR_10Hz, lis2mdl_read_reg(), lis2mdl_reset_get(), lis2mdl_reset_set(), LIS2MDL_SPI_4_WIRE, lis2mdl_spi_mode_set(), lis2mdl_write_reg(), lis2mdl_cfg_reg_a_t::lp, lis2mdl_cfg_reg_a_t::md, NULL, lis2mdl_cfg_reg_a_t::odr, platform_delay, platform_spi_read(), platform_spi_write(), stmdev_ctx_t::read_reg, lis2mdl_cfg_reg_a_t::reboot, lis2mdl_cfg_reg_c_t::self_test, lis2mdl_cfg_reg_a_t::soft_rst, and stmdev_ctx_t::write_reg.

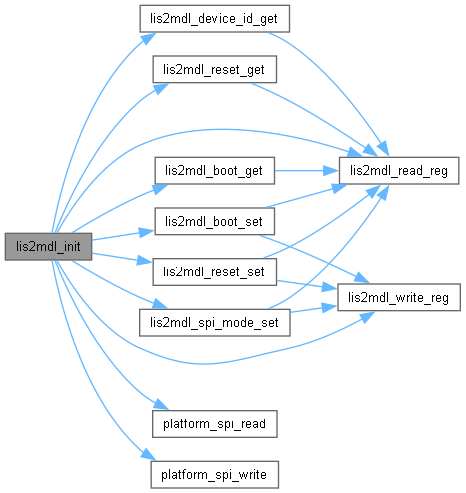

Here is the call graph for this function:

◆ lis2mdl_init_2()

int32_t lis2mdl_init_2 ( stmdev_ctx_t * ctx )

Definition at line 1556 of file lis2mdl_reg.c.

{
  uint8_t who_am_i = 0;
  uint8_t val = 0; // Temporary variable for get functions
  lis2mdl_cfg_reg_a_t cfg_a;
  lis2mdl_cfg_reg_c_t cfg_c;


  if (ctx == NULL) return -1;


  ctx->write_reg = platform_spi_write;
  ctx->read_reg = platform_spi_read;
  ctx->handle = &hspi3; // Your SPI_HandleTypeDef

  // Check WHO_AM_I register
  if (lis2mdl_device_id_get(ctx, &who_am_i) != 0) return -1; // Error reading WHO_AM_I
  if (who_am_i != LIS2MDL_ID) return -1; // WHO_AM_I mismatch (LIS2MDL_ID should be 0x40 as per datasheet)

  // Perform a software reset
  if (lis2mdl_reset_set(ctx, 1) != 0) return -1;
  platform_delay(5); // Wait for reset to complete (datasheet doesn't specify, 5ms is a guess)
  do {
    if (lis2mdl_reset_get(ctx, &val) != 0) return -1;
  } while (val); // Poll SOFT_RST bit until it is cleared


  // Reboot memory content to reload calibration parameters
  if (lis2mdl_boot_set(ctx, 1) != 0) return -1;
  platform_delay(5); // Wait for boot to complete
   do {
    if (lis2mdl_boot_get(ctx, &val) != 0) return -1;
  } while (val); // Poll REBOOT bit until it is cleared

  // Configure for 4-wire SPI mode
  // Note: The LIS2MDL CS pin (pin 3) must be tied LOW to enable SPI mode.
  // This function configures the 4WSPI bit in CFG_REG_C for the SDO line.
  if (lis2mdl_spi_mode_set(ctx, LIS2MDL_SPI_4_WIRE) != 0) return -1;


  // Configure CFG_REG_A for:
  // - Temperature compensation enabled
  // - Continuous mode
  // - ODR 10 Hz
  // - High-resolution mode
  // This matches the datasheet startup example (CFG_REG_A = 0x80)

  // Method 1: Using individual set functions (less efficient due to multiple R-M-W)
  // if (lis2mdl_offset_temp_comp_set(ctx, 1) != 0) return -1;
  // if (lis2mdl_operating_mode_set(ctx, LIS2MDL_CONTINUOUS_MODE) != 0) return -1;
  // if (lis2mdl_data_rate_set(ctx, LIS2MDL_ODR_10HZ) != 0) return -1; // Assuming LIS2MDL_ODR_10HZ is defined
  // if (lis2mdl_power_mode_set(ctx, LIS2MDL_HIGH_RESOLUTION) != 0) return -1;

  // Method 2: Direct write to CFG_REG_A (more efficient)
  cfg_a.comp_temp_en = 1;
  cfg_a.reboot = 0;
  cfg_a.soft_rst = 0;
  cfg_a.lp = (uint8_t)LIS2MDL_HIGH_RESOLUTION; // Assuming LIS2MDL_HIGH_RESOLUTION = 0
  cfg_a.odr = (uint8_t)LIS2MDL_ODR_10Hz;       // Assuming LIS2MDL_ODR_10Hz = 0
  cfg_a.md = (uint8_t)LIS2MDL_CONTINUOUS_MODE; // Assuming LIS2MDL_CONTINUOUS_MODE = 0
  if (lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t*)&cfg_a, 1) != 0) return -1;


  // Configure CFG_REG_C for:
  // - Block Data Update (BDU) enabled
  // - Data Ready signal on INT/DRDY pin enabled (optional, as per datasheet startup example)
  // - 4-wire SPI is already set by lis2mdl_spi_mode_set above.

  // Method 1: Using individual set functions
  // if (lis2mdl_block_data_update_set(ctx, 1) != 0) return -1;
  // if (lis2mdl_drdy_on_pin_set(ctx, 1) != 0) return -1; // Optional: enable DRDY on pin

  // Method 2: Direct write to CFG_REG_C (more efficient, considers 4WSPI already set)
  if (lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t*)&cfg_c, 1) != 0) return -1;
  cfg_c.bdu = 1;
  cfg_c.drdy_on_pin = 1; // Enable DRDY on pin as per datasheet example
  // cfg_c._4wspi is already set by lis2mdl_spi_mode_set, no need to change it here
  // unless lis2mdl_spi_mode_set is not called before this.
  // For safety, ensure it's set if not using the dedicated function earlier:
  // cfg_c._4wspi = 1; // If LIS2MDL_SPI_4_WIRE is desired
  cfg_c.i2c_dis = 1; // Disable I2C if exclusively using SPI
  cfg_c.int_on_pin = 0; // Disable interrupt on pin unless specifically needed
  cfg_c.self_test = 0; // Disable self-test
  cfg_c.ble = (uint8_t)LIS2MDL_LSB_AT_LOW_ADD; // Default data format

  if (lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t*)&cfg_c, 1) != 0) return -1;


  // Sensor is now initialized with basic settings.
  // Further configuration (e.g., interrupts, thresholds) can be done as needed.
  return 0; // Success
}

References lis2mdl_cfg_reg_c_t::bdu, lis2mdl_cfg_reg_c_t::ble, lis2mdl_cfg_reg_a_t::comp_temp_en, lis2mdl_cfg_reg_c_t::drdy_on_pin, stmdev_ctx_t::handle, hspi3, lis2mdl_cfg_reg_c_t::i2c_dis, lis2mdl_cfg_reg_c_t::int_on_pin, lis2mdl_boot_get(), lis2mdl_boot_set(), LIS2MDL_CFG_REG_A, LIS2MDL_CFG_REG_C, LIS2MDL_CONTINUOUS_MODE, lis2mdl_device_id_get(), LIS2MDL_HIGH_RESOLUTION, LIS2MDL_ID, LIS2MDL_LSB_AT_LOW_ADD, LIS2MDL_ODR_10Hz, lis2mdl_read_reg(), lis2mdl_reset_get(), lis2mdl_reset_set(), LIS2MDL_SPI_4_WIRE, lis2mdl_spi_mode_set(), lis2mdl_write_reg(), lis2mdl_cfg_reg_a_t::lp, lis2mdl_cfg_reg_a_t::md, NULL, lis2mdl_cfg_reg_a_t::odr, platform_delay, platform_spi_read(), platform_spi_write(), stmdev_ctx_t::read_reg, lis2mdl_cfg_reg_a_t::reboot, lis2mdl_cfg_reg_c_t::self_test, lis2mdl_cfg_reg_a_t::soft_rst, and stmdev_ctx_t::write_reg.

Here is the call graph for this function:

◆ lis2mdl_int_gen_conf_get()

int32_t lis2mdl_int_gen_conf_get	(	const stmdev_ctx_t *	ctx,
		lis2mdl_int_crtl_reg_t *	val
	)

Interrupt generator configuration register.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	registers INT_CRTL_REG.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 1157 of file lis2mdl_reg.c.

{
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_INT_CRTL_REG, (uint8_t *) val, 1);

  return ret;
}

References LIS2MDL_INT_CRTL_REG, and lis2mdl_read_reg().

Here is the call graph for this function:

◆ lis2mdl_int_gen_conf_set()

int32_t lis2mdl_int_gen_conf_set	(	const stmdev_ctx_t *	ctx,
		lis2mdl_int_crtl_reg_t *	val
	)

Interrupt generator configuration register.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	registers INT_CRTL_REG.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 1139 of file lis2mdl_reg.c.

{
  int32_t ret;

  ret = lis2mdl_write_reg(ctx, LIS2MDL_INT_CRTL_REG, (uint8_t *) val, 1);

  return ret;
}

References LIS2MDL_INT_CRTL_REG, and lis2mdl_write_reg().

Here is the call graph for this function:

◆ lis2mdl_int_gen_source_get()

int32_t lis2mdl_int_gen_source_get	(	const stmdev_ctx_t *	ctx,
		lis2mdl_int_source_reg_t *	val
	)

Interrupt generator source register.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	registers INT_SOURCE_REG.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 1175 of file lis2mdl_reg.c.

{
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_INT_SOURCE_REG, (uint8_t *) val, 1);

  return ret;
}

References LIS2MDL_INT_SOURCE_REG, and lis2mdl_read_reg().

Here is the call graph for this function:

◆ lis2mdl_int_gen_threshold_get()

int32_t lis2mdl_int_gen_threshold_get	(	const stmdev_ctx_t *	ctx,
		uint16_t *	val
	)

User-defined threshold value for xl interrupt event on generator. Data format is the same of output data raw: two’s complement with 1LSb = 1.5mG.[get].

Parameters

ctx	read / write interface definitions.(ptr)
buff	that stores data read

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 1217 of file lis2mdl_reg.c.

{
  uint8_t buff[2];
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_INT_THS_L_REG, buff, 2);
  *val = buff[1];
  *val = (*val * 256U) +  buff[0];

  return ret;
}

References LIS2MDL_INT_THS_L_REG, and lis2mdl_read_reg().

Here is the call graph for this function:

◆ lis2mdl_int_gen_threshold_set()

int32_t lis2mdl_int_gen_threshold_set	(	const stmdev_ctx_t *	ctx,
		uint16_t	val
	)

User-defined threshold value for xl interrupt event on generator. Data format is the same of output data raw: two’s complement with 1LSb = 1.5mG.[set].

Parameters

ctx	read / write interface definitions.(ptr)
buff	that contains data to write

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 1195 of file lis2mdl_reg.c.

{
  uint8_t buff[2];
  int32_t ret;

  buff[1] = (uint8_t)(val / 256U);
  buff[0] = (uint8_t)(val - (buff[1] * 256U));
  ret = lis2mdl_write_reg(ctx, LIS2MDL_INT_THS_L_REG, buff, 2);

  return ret;
}

References LIS2MDL_INT_THS_L_REG, and lis2mdl_write_reg().

Here is the call graph for this function:

◆ lis2mdl_int_on_pin_get()

int32_t lis2mdl_int_on_pin_get	(	const stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

Interrupt signal on INT_DRDY pin.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of int_on_pin in reg CFG_REG_C.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 1120 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_c_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);
  *val = reg.int_on_pin;

  return ret;
}

References lis2mdl_cfg_reg_c_t::int_on_pin, LIS2MDL_CFG_REG_C, and lis2mdl_read_reg().

Here is the call graph for this function:

◆ lis2mdl_int_on_pin_set()

int32_t lis2mdl_int_on_pin_set	(	const stmdev_ctx_t *	ctx,
		uint8_t	val
	)

Interrupt signal on INT_DRDY pin.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of int_on_pin in reg CFG_REG_C

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 1096 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_c_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.int_on_pin = val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);
  }

  return ret;
}

References lis2mdl_cfg_reg_c_t::int_on_pin, LIS2MDL_CFG_REG_C, lis2mdl_read_reg(), and lis2mdl_write_reg().

Here is the call graph for this function:

◆ lis2mdl_low_pass_bandwidth_get()

int32_t lis2mdl_low_pass_bandwidth_get	(	const stmdev_ctx_t *	ctx,
		lis2mdl_lpf_t *	val
	)

Low-pass bandwidth selection.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	Get the values of lpf in reg CFG_REG_B.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 472 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_b_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_B, (uint8_t *)&reg, 1);

  switch (reg.lpf)
  {
    case LIS2MDL_ODR_DIV_2:
      *val = LIS2MDL_ODR_DIV_2;
      break;

    case LIS2MDL_ODR_DIV_4:
      *val = LIS2MDL_ODR_DIV_4;
      break;

    default:
      *val = LIS2MDL_ODR_DIV_2;
      break;
  }

  return ret;
}

References LIS2MDL_CFG_REG_B, LIS2MDL_ODR_DIV_2, LIS2MDL_ODR_DIV_4, lis2mdl_read_reg(), and lis2mdl_cfg_reg_b_t::lpf.

Here is the call graph for this function:

◆ lis2mdl_low_pass_bandwidth_set()

int32_t lis2mdl_low_pass_bandwidth_set	(	const stmdev_ctx_t *	ctx,
		lis2mdl_lpf_t	val
	)

Low-pass bandwidth selection.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of lpf in reg CFG_REG_B

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 447 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_b_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_B, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.lpf = (uint8_t)val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_B, (uint8_t *)&reg, 1);
  }

  return ret;
}

References LIS2MDL_CFG_REG_B, lis2mdl_read_reg(), lis2mdl_write_reg(), and lis2mdl_cfg_reg_b_t::lpf.

Here is the call graph for this function:

◆ lis2mdl_mag_data_ovr_get()

int32_t lis2mdl_mag_data_ovr_get	(	const stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

Magnetic set of data overrun.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of zyxor in reg STATUS_REG.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 684 of file lis2mdl_reg.c.

{
  lis2mdl_status_reg_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_STATUS_REG, (uint8_t *)&reg, 1);
  *val = reg.zyxor;

  return ret;
}

References lis2mdl_read_reg(), LIS2MDL_STATUS_REG, and lis2mdl_status_reg_t::zyxor.

Here is the call graph for this function:

◆ lis2mdl_mag_data_ready_get()

int32_t lis2mdl_mag_data_ready_get	(	const stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

Magnetic set of data available.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of zyxda in reg STATUS_REG.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 665 of file lis2mdl_reg.c.

{
  lis2mdl_status_reg_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_STATUS_REG, (uint8_t *)&reg, 1);
  *val = reg.zyxda;

  return ret;
}

References lis2mdl_read_reg(), LIS2MDL_STATUS_REG, and lis2mdl_status_reg_t::zyxda.

Here is the call graph for this function:

◆ lis2mdl_mag_user_offset_get()

int32_t lis2mdl_mag_user_offset_get	(	const stmdev_ctx_t *	ctx,
		int16_t *	val
	)

These registers comprise a 3 group of 16-bit number and represent hard-iron offset in order to compensate environmental effects. Data format is the same of output data raw: two’s complement with 1LSb = 1.5mG. These values act on the magnetic output data value in order to delete the environmental offset.[get].

Parameters

ctx	read / write interface definitions.(ptr)
buff	that stores data read

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 195 of file lis2mdl_reg.c.

{
  uint8_t buff[6];
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_OFFSET_X_REG_L, buff, 6);
  val[0] = (int16_t)buff[1];
  val[0] = (val[0] * 256) + (int16_t)buff[0];
  val[1] = (int16_t)buff[3];
  val[1] = (val[1] * 256) + (int16_t)buff[2];
  val[2] = (int16_t)buff[5];
  val[2] = (val[2] * 256) + (int16_t)buff[4];

  return ret;
}

References LIS2MDL_OFFSET_X_REG_L, and lis2mdl_read_reg().

Here is the call graph for this function:

◆ lis2mdl_mag_user_offset_set()

int32_t lis2mdl_mag_user_offset_set	(	const stmdev_ctx_t *	ctx,
		int16_t *	val
	)

These registers comprise a 3 group of 16-bit number and represent hard-iron offset in order to compensate environmental effects. Data format is the same of output data raw: two’s complement with 1LSb = 1.5mG. These values act on the magnetic output data value in order to delete the environmental offset.[set].

Parameters

ctx	read / write interface definitions.(ptr)
buff	buffer that contains data to write

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 167 of file lis2mdl_reg.c.

{
  uint8_t buff[6];
  int32_t ret;

  buff[1] = (uint8_t)((uint16_t)val[0] / 256U);
  buff[0] = (uint8_t)((uint16_t)val[0] - (buff[1] * 256U));
  buff[3] = (uint8_t)((uint16_t)val[1] / 256U);
  buff[2] = (uint8_t)((uint16_t)val[1] - (buff[3] * 256U));
  buff[5] = (uint8_t)((uint16_t)val[2] / 256U);
  buff[4] = (uint8_t)((uint16_t)val[2] - (buff[5] * 256U));
  ret = lis2mdl_write_reg(ctx, LIS2MDL_OFFSET_X_REG_L, buff, 6);

  return ret;
}

References LIS2MDL_OFFSET_X_REG_L, and lis2mdl_write_reg().

Here is the call graph for this function:

◆ lis2mdl_magnetic_raw_get()

int32_t lis2mdl_magnetic_raw_get	(	const stmdev_ctx_t *	ctx,
		int16_t *	val
	)

Magnetic output value.[get].

Parameters

ctx	read / write interface definitions.(ptr)
buff	that stores data read

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 703 of file lis2mdl_reg.c.

{
  uint8_t buff[6];
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_OUTX_L_REG, buff, 6);
  val[0] = (int16_t)buff[1];
  val[0] = (val[0] * 256) + (int16_t)buff[0];
  val[1] = (int16_t)buff[3];
  val[1] = (val[1] * 256) + (int16_t)buff[2];
  val[2] = (int16_t)buff[5];
  val[2] = (val[2] * 256) + (int16_t)buff[4];

  return ret;
}

References LIS2MDL_OUTX_L_REG, and lis2mdl_read_reg().

Here is the call graph for this function:

◆ lis2mdl_offset_int_conf_get()

int32_t lis2mdl_offset_int_conf_get	(	const stmdev_ctx_t *	ctx,
		lis2mdl_int_on_dataoff_t *	val
	)

The interrupt block recognition checks data after/before the hard-iron correction to discover the interrupt.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	Get the values of int_on_dataoff in reg CFG_REG_B.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 1019 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_b_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_B, (uint8_t *)&reg, 1);

  switch (reg.int_on_dataoff)
  {
    case LIS2MDL_CHECK_BEFORE:
      *val = LIS2MDL_CHECK_BEFORE;
      break;

    case LIS2MDL_CHECK_AFTER:
      *val = LIS2MDL_CHECK_AFTER;
      break;

    default:
      *val = LIS2MDL_CHECK_BEFORE;
      break;
  }

  return ret;
}

References lis2mdl_cfg_reg_b_t::int_on_dataoff, LIS2MDL_CFG_REG_B, LIS2MDL_CHECK_AFTER, LIS2MDL_CHECK_BEFORE, and lis2mdl_read_reg().

Here is the call graph for this function:

◆ lis2mdl_offset_int_conf_set()

int32_t lis2mdl_offset_int_conf_set	(	const stmdev_ctx_t *	ctx,
		lis2mdl_int_on_dataoff_t	val
	)

The interrupt block recognition checks data after/before the hard-iron correction to discover the interrupt.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of int_on_dataoff in reg CFG_REG_B

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 993 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_b_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_B, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.int_on_dataoff = (uint8_t)val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_B, (uint8_t *)&reg, 1);
  }

  return ret;
}

References lis2mdl_cfg_reg_b_t::int_on_dataoff, LIS2MDL_CFG_REG_B, lis2mdl_read_reg(), and lis2mdl_write_reg().

Here is the call graph for this function:

◆ lis2mdl_offset_temp_comp_get()

int32_t lis2mdl_offset_temp_comp_get	(	const stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

Enables the magnetometer temperature compensation.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of comp_temp_en in reg CFG_REG_A.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 428 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_a_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);
  *val = reg.comp_temp_en;

  return ret;
}

References lis2mdl_cfg_reg_a_t::comp_temp_en, LIS2MDL_CFG_REG_A, and lis2mdl_read_reg().

Here is the call graph for this function:

◆ lis2mdl_offset_temp_comp_set()

int32_t lis2mdl_offset_temp_comp_set	(	const stmdev_ctx_t *	ctx,
		uint8_t	val
	)

Enables the magnetometer temperature compensation.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of comp_temp_en in reg CFG_REG_A

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 404 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_a_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.comp_temp_en = val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);
  }

  return ret;
}

References lis2mdl_cfg_reg_a_t::comp_temp_en, LIS2MDL_CFG_REG_A, lis2mdl_read_reg(), and lis2mdl_write_reg().

Here is the call graph for this function:

◆ lis2mdl_operating_mode_get()

int32_t lis2mdl_operating_mode_get	(	const stmdev_ctx_t *	ctx,
		lis2mdl_md_t *	val
	)

Operating mode selection.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	Get the values of md in reg CFG_REG_A.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 244 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_a_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);

  switch (reg.md)
  {
    case LIS2MDL_POWER_DOWN:
      *val = LIS2MDL_POWER_DOWN;
      break;

    case LIS2MDL_CONTINUOUS_MODE:
      *val = LIS2MDL_CONTINUOUS_MODE;
      break;

    case LIS2MDL_SINGLE_TRIGGER:
      *val = LIS2MDL_SINGLE_TRIGGER;
      break;

    default:
      *val = LIS2MDL_POWER_DOWN;
      break;
  }

  return ret;
}

References LIS2MDL_CFG_REG_A, LIS2MDL_CONTINUOUS_MODE, LIS2MDL_POWER_DOWN, lis2mdl_read_reg(), LIS2MDL_SINGLE_TRIGGER, and lis2mdl_cfg_reg_a_t::md.

Here is the call graph for this function:

◆ lis2mdl_operating_mode_set()

int32_t lis2mdl_operating_mode_set	(	const stmdev_ctx_t *	ctx,
		lis2mdl_md_t	val
	)

Operating mode selection.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of md in reg CFG_REG_A

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 219 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_a_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.md = (uint8_t)val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);
  }

  return ret;
}

References LIS2MDL_CFG_REG_A, lis2mdl_read_reg(), lis2mdl_write_reg(), and lis2mdl_cfg_reg_a_t::md.

Here is the call graph for this function:

◆ lis2mdl_power_mode_get()

int32_t lis2mdl_power_mode_get	(	const stmdev_ctx_t *	ctx,
		lis2mdl_lp_t *	val
	)

Enables high-resolution/low-power mode.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	Get the values of lp in reg CFG_REG_A.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 371 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_a_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);

  switch (reg.lp)
  {
    case LIS2MDL_HIGH_RESOLUTION:
      *val = LIS2MDL_HIGH_RESOLUTION;
      break;

    case LIS2MDL_LOW_POWER:
      *val = LIS2MDL_LOW_POWER;
      break;

    default:
      *val = LIS2MDL_HIGH_RESOLUTION;
      break;
  }

  return ret;
}

References LIS2MDL_CFG_REG_A, LIS2MDL_HIGH_RESOLUTION, LIS2MDL_LOW_POWER, lis2mdl_read_reg(), and lis2mdl_cfg_reg_a_t::lp.

Here is the call graph for this function:

◆ lis2mdl_power_mode_set()

int32_t lis2mdl_power_mode_set	(	const stmdev_ctx_t *	ctx,
		lis2mdl_lp_t	val
	)

Enables high-resolution/low-power mode.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of lp in reg CFG_REG_A

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 347 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_a_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.lp = (uint8_t)val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);
  }

  return ret;
}

References LIS2MDL_CFG_REG_A, lis2mdl_read_reg(), lis2mdl_write_reg(), and lis2mdl_cfg_reg_a_t::lp.

Here is the call graph for this function:

◆ lis2mdl_read_reg()

int32_t lis2mdl_read_reg	(	const stmdev_ctx_t *	ctx,
		uint8_t	reg,
		uint8_t *	data,
		uint16_t	len
	)

Read generic device register.

Parameters

ctx	read / write interface definitions(ptr)
reg	register to read
data	pointer to buffer that store the data read(ptr)
len	number of consecutive register to read

Return values

interface status (MANDATORY: return 0 -> no Error)

Definition at line 66 of file lis2mdl_reg.c.

{
  int32_t ret;

  if (ctx == NULL)
  {
    return -1;
  }

  ret = ctx->read_reg(ctx->handle, reg, data, len);

  return ret;
}

References stmdev_ctx_t::handle, NULL, and stmdev_ctx_t::read_reg.

Referenced by lis2mdl_block_data_update_get(), lis2mdl_block_data_update_set(), lis2mdl_boot_get(), lis2mdl_boot_set(), lis2mdl_data_format_get(), lis2mdl_data_format_set(), lis2mdl_data_rate_get(), lis2mdl_data_rate_set(), lis2mdl_device_id_get(), lis2mdl_drdy_on_pin_get(), lis2mdl_drdy_on_pin_set(), lis2mdl_i2c_interface_get(), lis2mdl_i2c_interface_set(), lis2mdl_init(), lis2mdl_init_2(), lis2mdl_int_gen_conf_get(), lis2mdl_int_gen_source_get(), lis2mdl_int_gen_threshold_get(), lis2mdl_int_on_pin_get(), lis2mdl_int_on_pin_set(), lis2mdl_low_pass_bandwidth_get(), lis2mdl_low_pass_bandwidth_set(), lis2mdl_mag_data_ovr_get(), lis2mdl_mag_data_ready_get(), lis2mdl_mag_user_offset_get(), lis2mdl_magnetic_raw_get(), lis2mdl_offset_int_conf_get(), lis2mdl_offset_int_conf_set(), lis2mdl_offset_temp_comp_get(), lis2mdl_offset_temp_comp_set(), lis2mdl_operating_mode_get(), lis2mdl_operating_mode_set(), lis2mdl_power_mode_get(), lis2mdl_power_mode_set(), lis2mdl_reset_get(), lis2mdl_reset_set(), lis2mdl_self_test_get(), lis2mdl_self_test_set(), lis2mdl_set_rst_mode_get(), lis2mdl_set_rst_mode_set(), lis2mdl_set_rst_sensor_single_get(), lis2mdl_set_rst_sensor_single_set(), lis2mdl_spi_mode_get(), lis2mdl_spi_mode_set(), lis2mdl_status_get(), and lis2mdl_temperature_raw_get().

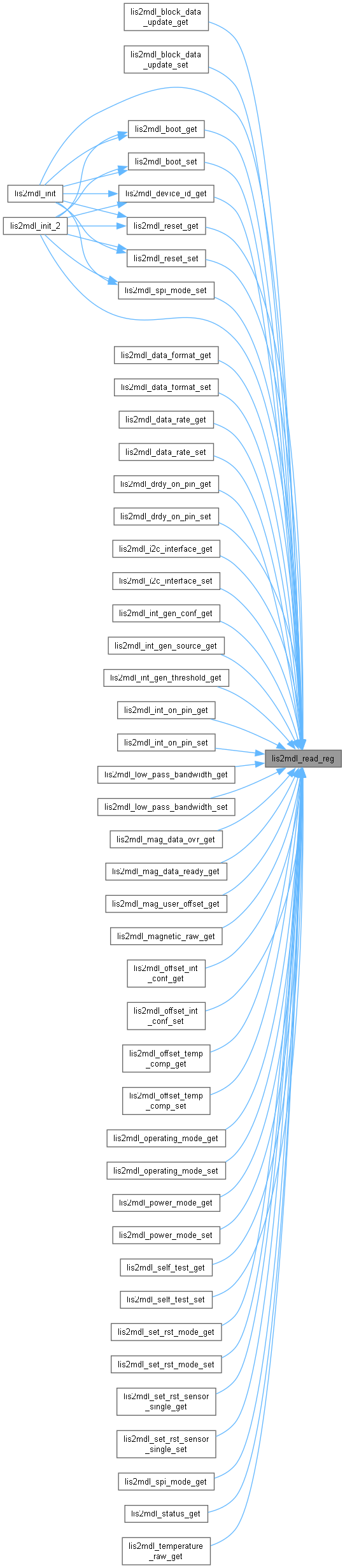

Here is the caller graph for this function:

◆ lis2mdl_reset_get()

int32_t lis2mdl_reset_get	(	const stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

Software reset. Restore the default values in user registers.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of soft_rst in reg CFG_REG_A.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 800 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_a_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);
  *val = reg.soft_rst;

  return ret;
}

References LIS2MDL_CFG_REG_A, lis2mdl_read_reg(), and lis2mdl_cfg_reg_a_t::soft_rst.

Referenced by lis2mdl_init(), and lis2mdl_init_2().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lis2mdl_reset_set()

int32_t lis2mdl_reset_set	(	const stmdev_ctx_t *	ctx,
		uint8_t	val
	)

Software reset. Restore the default values in user registers.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of soft_rst in reg CFG_REG_A

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 776 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_a_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.soft_rst = val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_A, (uint8_t *)&reg, 1);
  }

  return ret;
}

References LIS2MDL_CFG_REG_A, lis2mdl_read_reg(), lis2mdl_write_reg(), and lis2mdl_cfg_reg_a_t::soft_rst.

Referenced by lis2mdl_init(), and lis2mdl_init_2().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lis2mdl_self_test_get()

int32_t lis2mdl_self_test_get	(	const stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

Selftest.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of self_test in reg CFG_REG_C.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 886 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_c_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);
  *val = reg.self_test;

  return ret;
}

References LIS2MDL_CFG_REG_C, lis2mdl_read_reg(), and lis2mdl_cfg_reg_c_t::self_test.

Here is the call graph for this function:

◆ lis2mdl_self_test_set()

int32_t lis2mdl_self_test_set	(	const stmdev_ctx_t *	ctx,
		uint8_t	val
	)

Selftest.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of self_test in reg CFG_REG_C

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 862 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_c_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.self_test = val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);
  }

  return ret;
}

References LIS2MDL_CFG_REG_C, lis2mdl_read_reg(), lis2mdl_write_reg(), and lis2mdl_cfg_reg_c_t::self_test.

Here is the call graph for this function:

◆ lis2mdl_set_rst_mode_get()

int32_t lis2mdl_set_rst_mode_get	(	const stmdev_ctx_t *	ctx,
		lis2mdl_set_rst_t *	val
	)

Reset mode.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	Get the values of set_rst in reg CFG_REG_B.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 531 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_b_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_B, (uint8_t *)&reg, 1);

  switch (reg.set_rst)
  {
    case LIS2MDL_SET_SENS_ODR_DIV_63:
      *val = LIS2MDL_SET_SENS_ODR_DIV_63;
      break;

    case LIS2MDL_SENS_OFF_CANC_EVERY_ODR:
      *val = LIS2MDL_SENS_OFF_CANC_EVERY_ODR;
      break;

    case LIS2MDL_SET_SENS_ONLY_AT_POWER_ON:
      *val = LIS2MDL_SET_SENS_ONLY_AT_POWER_ON;
      break;

    default:
      *val = LIS2MDL_SET_SENS_ODR_DIV_63;
      break;
  }

  return ret;
}

References LIS2MDL_CFG_REG_B, lis2mdl_read_reg(), LIS2MDL_SENS_OFF_CANC_EVERY_ODR, LIS2MDL_SET_SENS_ODR_DIV_63, LIS2MDL_SET_SENS_ONLY_AT_POWER_ON, and lis2mdl_cfg_reg_b_t::set_rst.

Here is the call graph for this function:

◆ lis2mdl_set_rst_mode_set()

int32_t lis2mdl_set_rst_mode_set	(	const stmdev_ctx_t *	ctx,
		lis2mdl_set_rst_t	val
	)

Reset mode.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of set_rst in reg CFG_REG_B

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 506 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_b_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_B, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.set_rst = (uint8_t)val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_B, (uint8_t *)&reg, 1);
  }

  return ret;
}

References LIS2MDL_CFG_REG_B, lis2mdl_read_reg(), lis2mdl_write_reg(), and lis2mdl_cfg_reg_b_t::set_rst.

Here is the call graph for this function:

◆ lis2mdl_set_rst_sensor_single_get()

int32_t lis2mdl_set_rst_sensor_single_get	(	const stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

Enables offset cancellation in single measurement mode. The OFF_CANC bit must be set to 1 when enabling offset cancellation in single measurement mode this means a call function: set_rst_mode(SENS_OFF_CANC_EVERY_ODR) is need.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of off_canc_one_shot in reg CFG_REG_B.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 602 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_b_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_B, (uint8_t *)&reg, 1);
  *val = reg.off_canc_one_shot;

  return ret;
}

References LIS2MDL_CFG_REG_B, lis2mdl_read_reg(), and lis2mdl_cfg_reg_b_t::off_canc_one_shot.

Here is the call graph for this function:

◆ lis2mdl_set_rst_sensor_single_set()

int32_t lis2mdl_set_rst_sensor_single_set	(	const stmdev_ctx_t *	ctx,
		uint8_t	val
	)

Enables offset cancellation in single measurement mode. The OFF_CANC bit must be set to 1 when enabling offset cancellation in single measurement mode this means a call function: set_rst_mode(SENS_OFF_CANC_EVERY_ODR) is need.[set].

Parameters

ctx	read / write interface definitions.(ptr)
val	change the values of off_canc_one_shot in reg CFG_REG_B

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 573 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_b_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_B, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg.off_canc_one_shot = val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_B, (uint8_t *)&reg, 1);
  }

  return ret;
}

References LIS2MDL_CFG_REG_B, lis2mdl_read_reg(), lis2mdl_write_reg(), and lis2mdl_cfg_reg_b_t::off_canc_one_shot.

Here is the call graph for this function:

◆ lis2mdl_spi_mode_get()

int32_t lis2mdl_spi_mode_get	(	const stmdev_ctx_t *	ctx,
		lis2mdl_sim_t *	val
	)

SPI Serial Interface Mode selection.[get].

Parameters

ctx	read / write interface definitions
val	Get the values of 4wspi in reg CFG_REG_C

Return values

interface status (MANDATORY: return 0 -> no Error)

Definition at line 1274 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_c_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);

  switch (reg._4wspi)
  {
    case LIS2MDL_SPI_4_WIRE:
      *val = LIS2MDL_SPI_4_WIRE;
      break;

    case LIS2MDL_SPI_3_WIRE:
      *val = LIS2MDL_SPI_3_WIRE;
      break;

    default:
      *val = LIS2MDL_SPI_3_WIRE;
      break;
  }

  return ret;
}

References lis2mdl_cfg_reg_c_t::_4wspi, LIS2MDL_CFG_REG_C, lis2mdl_read_reg(), LIS2MDL_SPI_3_WIRE, and LIS2MDL_SPI_4_WIRE.

Here is the call graph for this function:

◆ lis2mdl_spi_mode_set()

int32_t lis2mdl_spi_mode_set	(	const stmdev_ctx_t *	ctx,
		lis2mdl_sim_t	val
	)

SPI Serial Interface Mode selection.[set].

Parameters

ctx	read / write interface definitions
val	change the values of 4wspi in reg CFG_REG_C

Return values

interface status (MANDATORY: return 0 -> no Error)

Definition at line 1250 of file lis2mdl_reg.c.

{
  lis2mdl_cfg_reg_c_t reg;
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);

  if (ret == 0)
  {
    reg._4wspi = (uint8_t)val;
    ret = lis2mdl_write_reg(ctx, LIS2MDL_CFG_REG_C, (uint8_t *)&reg, 1);
  }

  return ret;
}

References lis2mdl_cfg_reg_c_t::_4wspi, LIS2MDL_CFG_REG_C, lis2mdl_read_reg(), and lis2mdl_write_reg().

Referenced by lis2mdl_init(), and lis2mdl_init_2().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ lis2mdl_status_get()

int32_t lis2mdl_status_get	(	const stmdev_ctx_t *	ctx,
		lis2mdl_status_reg_t *	val
	)

Info about device status.[get].

Parameters

ctx	read / write interface definitions.(ptr)
val	registers STATUS_REG.(ptr)

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 962 of file lis2mdl_reg.c.

{
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_STATUS_REG, (uint8_t *) val, 1);

  return ret;
}

References lis2mdl_read_reg(), and LIS2MDL_STATUS_REG.

Here is the call graph for this function:

◆ lis2mdl_temperature_raw_get()

int32_t lis2mdl_temperature_raw_get	(	const stmdev_ctx_t *	ctx,
		int16_t *	val
	)

Temperature output value.[get].

Parameters

ctx	read / write interface definitions.(ptr)
buff	that stores data read

Return values

interface status.(MANDATORY: return 0 -> no Error)

Definition at line 727 of file lis2mdl_reg.c.

{
  uint8_t buff[2];
  int32_t ret;

  ret = lis2mdl_read_reg(ctx, LIS2MDL_TEMP_OUT_L_REG, buff, 2);
  *val = (int16_t)buff[1];
  *val = (*val * 256) + (int16_t)buff[0];

  return ret;
}

References lis2mdl_read_reg(), and LIS2MDL_TEMP_OUT_L_REG.

Here is the call graph for this function:

◆ lis2mdl_write_reg()

int32_t lis2mdl_write_reg	(	const stmdev_ctx_t *	ctx,
		uint8_t	reg,
		uint8_t *	data,
		uint16_t	len
	)

Write generic device register.

Parameters

ctx	read / write interface definitions(ptr)
reg	register to write
data	pointer to data to write in register reg(ptr)
len	number of consecutive register to write

Return values

interface status (MANDATORY: return 0 -> no Error)

Definition at line 92 of file lis2mdl_reg.c.

{
  int32_t ret;

  if (ctx == NULL)
  {
    return -1;
  }

  ret = ctx->write_reg(ctx->handle, reg, data, len);

  return ret;
}

References stmdev_ctx_t::handle, NULL, and stmdev_ctx_t::write_reg.

Referenced by lis2mdl_block_data_update_set(), lis2mdl_boot_set(), lis2mdl_data_format_set(), lis2mdl_data_rate_set(), lis2mdl_drdy_on_pin_set(), lis2mdl_i2c_interface_set(), lis2mdl_init(), lis2mdl_init_2(), lis2mdl_int_gen_conf_set(), lis2mdl_int_gen_threshold_set(), lis2mdl_int_on_pin_set(), lis2mdl_low_pass_bandwidth_set(), lis2mdl_mag_user_offset_set(), lis2mdl_offset_int_conf_set(), lis2mdl_offset_temp_comp_set(), lis2mdl_operating_mode_set(), lis2mdl_power_mode_set(), lis2mdl_reset_set(), lis2mdl_self_test_set(), lis2mdl_set_rst_mode_set(), lis2mdl_set_rst_sensor_single_set(), and lis2mdl_spi_mode_set().

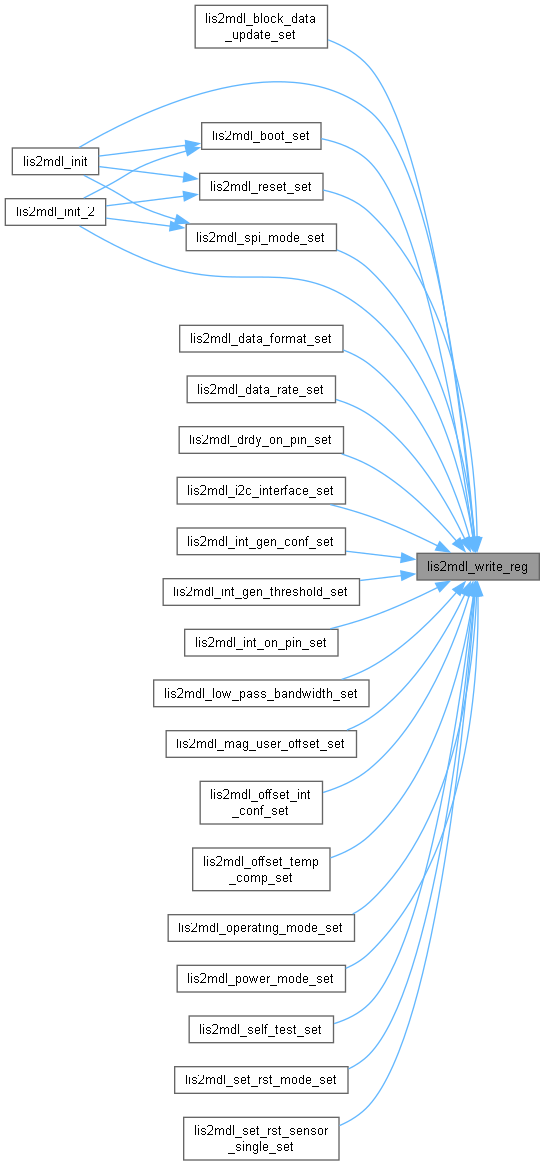

Here is the caller graph for this function:

Modules

Data Structures

Macros

Enumerations

Functions

Detailed Description

Macro Definition Documentation

◆ __weak

◆ LIS2MDL_CFG_REG_A

◆ LIS2MDL_CFG_REG_B

◆ LIS2MDL_CFG_REG_C

◆ LIS2MDL_INT_CRTL_REG

◆ LIS2MDL_INT_SOURCE_REG

◆ LIS2MDL_INT_THS_H_REG

◆ LIS2MDL_INT_THS_L_REG

◆ LIS2MDL_OFFSET_X_REG_H

◆ LIS2MDL_OFFSET_X_REG_L

◆ LIS2MDL_OFFSET_Y_REG_H

◆ LIS2MDL_OFFSET_Y_REG_L

◆ LIS2MDL_OFFSET_Z_REG_H

◆ LIS2MDL_OFFSET_Z_REG_L

◆ LIS2MDL_OUTX_H_REG

◆ LIS2MDL_OUTX_L_REG

◆ LIS2MDL_OUTY_H_REG

◆ LIS2MDL_OUTY_L_REG

◆ LIS2MDL_OUTZ_H_REG

◆ LIS2MDL_OUTZ_L_REG

◆ LIS2MDL_STATUS_REG

◆ LIS2MDL_TEMP_OUT_H_REG

◆ LIS2MDL_TEMP_OUT_L_REG

◆ LIS2MDL_WHO_AM_I

Enumeration Type Documentation

◆ lis2mdl_ble_t

◆ lis2mdl_i2c_dis_t

◆ lis2mdl_int_on_dataoff_t

◆ lis2mdl_lp_t

◆ lis2mdl_lpf_t

◆ lis2mdl_md_t

◆ lis2mdl_odr_t

◆ lis2mdl_set_rst_t

◆ lis2mdl_sim_t

Function Documentation

◆ lis2mdl_block_data_update_get()

◆ lis2mdl_block_data_update_set()

◆ lis2mdl_boot_get()

◆ lis2mdl_boot_set()

◆ lis2mdl_data_format_get()

◆ lis2mdl_data_format_set()

◆ lis2mdl_data_rate_get()

◆ lis2mdl_data_rate_set()

◆ lis2mdl_device_id_get()

◆ lis2mdl_drdy_on_pin_get()

◆ lis2mdl_drdy_on_pin_set()

◆ lis2mdl_from_lsb_to_celsius()

◆ lis2mdl_from_lsb_to_mgauss()

◆ lis2mdl_from_lsb_to_nanotesla()

◆ lis2mdl_i2c_interface_get()

◆ lis2mdl_i2c_interface_set()

◆ lis2mdl_init()

◆ lis2mdl_init_2()

◆ lis2mdl_int_gen_conf_get()

◆ lis2mdl_int_gen_conf_set()

◆ lis2mdl_int_gen_source_get()

◆ lis2mdl_int_gen_threshold_get()

◆ lis2mdl_int_gen_threshold_set()

◆ lis2mdl_int_on_pin_get()

◆ lis2mdl_int_on_pin_set()

◆ lis2mdl_low_pass_bandwidth_get()

◆ lis2mdl_low_pass_bandwidth_set()

◆ lis2mdl_mag_data_ovr_get()

◆ lis2mdl_mag_data_ready_get()

◆ lis2mdl_mag_user_offset_get()

◆ lis2mdl_mag_user_offset_set()

◆ lis2mdl_magnetic_raw_get()

◆ lis2mdl_offset_int_conf_get()

◆ lis2mdl_offset_int_conf_set()

◆ lis2mdl_offset_temp_comp_get()

◆ lis2mdl_offset_temp_comp_set()

◆ lis2mdl_operating_mode_get()

◆ lis2mdl_operating_mode_set()
