"Interfaces Functions"

This section provide a set of functions used to read and write a generic register of the device. MANDATORY: return 0 -> no Error. More...

Collaboration diagram for "Interfaces Functions":

Functions
int32_t __weak	lis2mdl_read_reg (const stmdev_ctx_t *ctx, uint8_t reg, uint8_t *data, uint16_t len)
	Read generic device register.
int32_t __weak	lis2mdl_write_reg (const stmdev_ctx_t *ctx, uint8_t reg, uint8_t *data, uint16_t len)
	Write generic device register.

Detailed Description

This section provide a set of functions used to read and write a generic register of the device. MANDATORY: return 0 -> no Error.

Function Documentation

lis2mdl_read_reg()

int32_t __weak lis2mdl_read_reg	(	const stmdev_ctx_t *	ctx,
		uint8_t	reg,
		uint8_t *	data,
		uint16_t	len
	)

Read generic device register.

Parameters

ctx	read / write interface definitions(ptr)
reg	register to read
data	pointer to buffer that store the data read(ptr)
len	number of consecutive register to read

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 66 of file lis2mdl_reg.c.

{
  int32_t ret;

  if (ctx == NULL)
  {
    return -1;
  }

  ret = ctx->read_reg(ctx->handle, reg, data, len);

  return ret;
}

References stmdev_ctx_t::handle, NULL, and stmdev_ctx_t::read_reg.

Referenced by lis2mdl_block_data_update_get(), lis2mdl_block_data_update_set(), lis2mdl_boot_get(), lis2mdl_boot_set(), lis2mdl_data_format_get(), lis2mdl_data_format_set(), lis2mdl_data_rate_get(), lis2mdl_data_rate_set(), lis2mdl_device_id_get(), lis2mdl_drdy_on_pin_get(), lis2mdl_drdy_on_pin_set(), lis2mdl_i2c_interface_get(), lis2mdl_i2c_interface_set(), lis2mdl_init(), lis2mdl_init_2(), lis2mdl_int_gen_conf_get(), lis2mdl_int_gen_source_get(), lis2mdl_int_gen_threshold_get(), lis2mdl_int_on_pin_get(), lis2mdl_int_on_pin_set(), lis2mdl_low_pass_bandwidth_get(), lis2mdl_low_pass_bandwidth_set(), lis2mdl_mag_data_ovr_get(), lis2mdl_mag_data_ready_get(), lis2mdl_mag_user_offset_get(), lis2mdl_magnetic_raw_get(), lis2mdl_offset_int_conf_get(), lis2mdl_offset_int_conf_set(), lis2mdl_offset_temp_comp_get(), lis2mdl_offset_temp_comp_set(), lis2mdl_operating_mode_get(), lis2mdl_operating_mode_set(), lis2mdl_power_mode_get(), lis2mdl_power_mode_set(), lis2mdl_reset_get(), lis2mdl_reset_set(), lis2mdl_self_test_get(), lis2mdl_self_test_set(), lis2mdl_set_rst_mode_get(), lis2mdl_set_rst_mode_set(), lis2mdl_set_rst_sensor_single_get(), lis2mdl_set_rst_sensor_single_set(), lis2mdl_spi_mode_get(), lis2mdl_spi_mode_set(), lis2mdl_status_get(), and lis2mdl_temperature_raw_get().

Here is the caller graph for this function:

lis2mdl_write_reg()

int32_t __weak lis2mdl_write_reg	(	const stmdev_ctx_t *	ctx,
		uint8_t	reg,
		uint8_t *	data,
		uint16_t	len
	)

Write generic device register.

Parameters

ctx	read / write interface definitions(ptr)
reg	register to write
data	pointer to data to write in register reg(ptr)
len	number of consecutive register to write

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 92 of file lis2mdl_reg.c.

{
  int32_t ret;

  if (ctx == NULL)
  {
    return -1;
  }

  ret = ctx->write_reg(ctx->handle, reg, data, len);

  return ret;
}

References stmdev_ctx_t::handle, NULL, and stmdev_ctx_t::write_reg.

Referenced by lis2mdl_block_data_update_set(), lis2mdl_boot_set(), lis2mdl_data_format_set(), lis2mdl_data_rate_set(), lis2mdl_drdy_on_pin_set(), lis2mdl_i2c_interface_set(), lis2mdl_init(), lis2mdl_init_2(), lis2mdl_int_gen_conf_set(), lis2mdl_int_gen_threshold_set(), lis2mdl_int_on_pin_set(), lis2mdl_low_pass_bandwidth_set(), lis2mdl_mag_user_offset_set(), lis2mdl_offset_int_conf_set(), lis2mdl_offset_temp_comp_set(), lis2mdl_operating_mode_set(), lis2mdl_power_mode_set(), lis2mdl_reset_set(), lis2mdl_self_test_set(), lis2mdl_set_rst_mode_set(), lis2mdl_set_rst_sensor_single_set(), and lis2mdl_spi_mode_set().

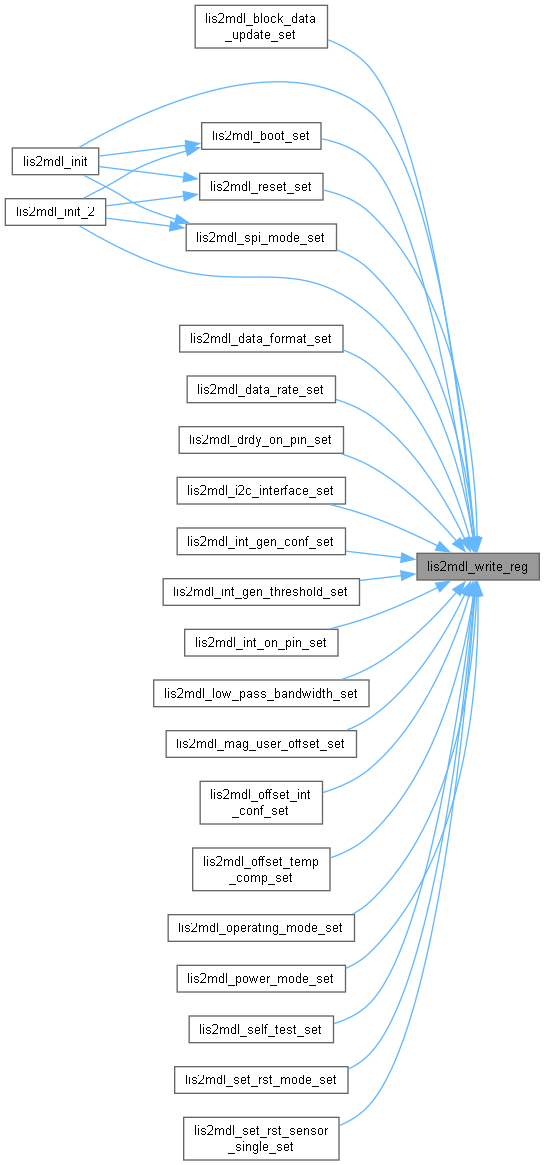

Here is the caller graph for this function:
