z_qflash_W25QXXX.h File Reference

Driver for W25Qxxx series Quad-SPI NOR Flash memory. More...

#include "main.h"

Include dependency graph for z_qflash_W25QXXX.h:

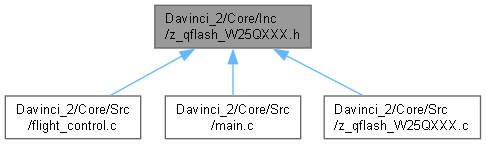

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	QFLASH_INSTRUCTION_MODE   QSPI_INSTRUCTION_1_LINE
#define	QFLASH_ADDRESS_SIZE   QSPI_ADDRESS_32_BITS
#define	QFLASH_ALTERNATE_BYTE_MODE   QSPI_ALTERNATE_BYTES_NONE
#define	QFLASH_DDR_MODE   QSPI_DDR_MODE_DISABLE
#define	QFLASH_DDR_HOLD_HALF_CYCLE   QSPI_DDR_HHC_ANALOG_DELAY
#define	QFLASH_SIOO_MODE   QSPI_SIOO_INST_EVERY_CMD
#define	QFLASH_DUMMY_CYCLES   0
#define	QFLASH_DEF_TIMEOUT   HAL_QSPI_TIMEOUT_DEFAULT_VALUE
#define	QFLASH_BSY_TIMEOUT   400000
#define	QFLASH_ADDRESS_MODE   QSPI_ADDRESS_4_LINES
#define	QFLASH_DATA_MODE   QSPI_DATA_4_LINES
#define	QFLASH_READ_COMMAND   W25_FREAD_QUAD
#define	QFLASH_READ_DUMMYC   4
#define	QFLASH_ALT_BYTES   0xFF
#define	QFLASH_ALT_BYTES_S   QSPI_ALTERNATE_BYTES_8_BITS
#define	QFLASH_ALT_BYTES_M   QSPI_ALTERNATE_BYTES_4_LINES
#define	QFLASH_WRITE_COMMAND   W25_FPAGE_P_QUAD_4B
#define	QFLASH_WDATA_MODE   QSPI_DATA_4_LINES
#define	W25_RESET_EN   0x66
#define	W25_RESET   0x99
#define	W25_W_ENABLE   0x06
#define	W25_READ   0x03
#define	W25_FREAD   0x0B
#define	W25_FREAD_DUAL   0xBB
#define	W25_FREAD_QUAD   0xEB
#define	W25_PAGE_P   0x02
#define	W25_FPAGE_P_QUAD   0x32
#define	W25_FPAGE_P_QUAD_4B   0x34
#define	W25_S_ERASE4K   0x20
#define	W25_S_ERASE4K_4B   0x21
#define	W25_B_ERASE32K   0x52
#define	W25_B_ERASE64K   0xD8
#define	W25_B_ERASE64K_4B   0xDC
#define	W25_CH_ERASE   0xC7
#define	W25_POWERDOWN   0xB9
#define	W25_POWERUP_ID   0xAB
#define	W25_JEDEC_ID   0x9F
#define	W25_R_SR1   0x05
#define	W25_R_SFPD_REG   0x5A
#define	W25_W_DISABLE   0x04
#define	W25_MAN_DEVICE_ID   0x90
#define	W25_R_SR2   0x35
#define	W25_W_SR2   0x31
#define	W25_R_SR3   0x15
#define	W25_W_SR3   0x11
#define	W25_SR_W_ENABLE   0x50
#define	W25_ENTER_4B_ADDR   0xB7
#define	W25_DUMMY   0x00
#define	SR1_BIT_BSY   (01U)
#define	SR1_BIT_WEL   (02U)
#define	SR2_BIT_QE   (0x02U)
HAL Handle Configuration
#define	FLASH_QSPI_PORT   hqspi
	The HAL QSPI_HandleTypeDef defined in main.h.
QSPI Communication Mode
Selects between blocking (polling) and non-blocking (DMA) transfers. Uncomment ONE of the following options.
#define	EXT_FLASH_QSPI_DMA_MODE
Flash Bus Protocol
Selects the SPI protocol (Single, Dual, or Quad). This must match the hardware wiring. Uncomment ONE of the following options.
#define	FLASH_QMODE_4
	Quad SPI (4-bit data lines).
Target Flash Memory Layout
Defines the geometry of the specific W25Qxxx chip being used. Warning The EXT_FLASH_SIZE must correspond to the FSIZE parameter in the STM32CubeMX QSPI configuration. FSIZE = log2(total_bytes) - 1.
#define	EXT_FLASH_PAGE_SIZE   0x0100
	256 bytes per programmable page.
#define	EXT_FLASH_SECTOR_SIZE   0x1000
	4 KB per erasable sector.
#define	EXT_FLASH_BLOCK_SIZE   0x00010000
	64 KB per erasable block.
#define	EXT_FLASH_SIZE   0x04000000
	64 MB total capacity (W25Q512).
#define	EXT_FLASH_PAGE_NUM   (EXT_FLASH_SIZE / EXT_FLASH_PAGE_SIZE)
	Total number of pages.
#define	EXT_FLASH_SECTOR_NUM   (EXT_FLASH_SIZE / EXT_FLASH_SECTOR_SIZE)
	Total number of sectors.
#define	EXT_FLASH_BLOCK_NUM   (EXT_FLASH_SIZE / EXT_FLASH_BLOCK_SIZE)
	Total number of blocks.

Enumerations
enum	HAL_StatusTypeDef { HAL_OK = 0x00 , HAL_ERROR = 0x01 , HAL_BUSY = 0x02 , HAL_TIMEOUT = 0x03 }
	HAL Status structures definition. More...

Functions
uint8_t	QFlash_IsQSPIAvailable (void)
HAL_StatusTypeDef	QFlash_WaitForQSPIAvailable (uint32_t timeout)
uint8_t	QFlash_IsDataAvailable (void)
HAL_StatusTypeDef	QFlash_WaitForDataAvailable (uint32_t timeout)
void	QFlash_DefaultCmd (QSPI_CommandTypeDef *sCommand)
HAL_StatusTypeDef	QFlash_Init (void)
HAL_StatusTypeDef	QFlash_ReadJedecID (uint8_t *dataptr)
HAL_StatusTypeDef	QFlash_ReadSFDP (uint8_t *dataptr)
HAL_StatusTypeDef	QFlash_ReadDevID (uint8_t *dataptr)
HAL_StatusTypeDef	QFlash_ReadManufactutrerAndDevID (uint16_t *dataptr)
	read id of the winbond
HAL_StatusTypeDef	QFlash_Reset (void)
HAL_StatusTypeDef	QFlash_WriteEnable (void)
	enables writes
HAL_StatusTypeDef	QFlash_WriteDisable (void)
	disables writes
HAL_StatusTypeDef	QFlash_ReadSR1 (uint8_t *dataptr)
HAL_StatusTypeDef	QFlash_ReadSR2 (uint8_t *dataptr)
HAL_StatusTypeDef	QFlash_ReadSR3 (uint8_t *dataptr)
HAL_StatusTypeDef	QFlash_WriteSR2 (uint8_t data)
	writes to register 2
HAL_StatusTypeDef	QFlash_WriteSR3 (uint8_t data)
	writes to register 3
HAL_StatusTypeDef	QFlash_CheckSR1 (void)
HAL_StatusTypeDef	QFlash_WaitForWritingComplete (void)
HAL_StatusTypeDef	QFlash_PowerDown (void)
HAL_StatusTypeDef	QFlash_PowerUp (void)
HAL_StatusTypeDef	QFlash_Read (uint32_t address, uint8_t *buffer, uint32_t dataSize)
HAL_StatusTypeDef	QFlash_Write (uint32_t addr, uint8_t *data, uint32_t dataSize)
HAL_StatusTypeDef	QFlash_SErase4k (uint32_t addr)
HAL_StatusTypeDef	QFlash_BErase32k (uint32_t addr)
HAL_StatusTypeDef	QFlash_BErase64k (uint32_t addr)
HAL_StatusTypeDef	QFlash_ChipErase (void)
void	DataReader_WaitForReceiveDone (void)
void	DataReader_ReadData (uint32_t address24, uint8_t *buffer, uint32_t length)
void	DataReader_StartDMAReadData (uint32_t address24, uint8_t *buffer, uint32_t length)
void	HAL_QSPI_CmdCpltCallback (QSPI_HandleTypeDef *hqspi)
void	HAL_QSPI_RxCpltCallback (QSPI_HandleTypeDef *hqspi)
void	HAL_QSPI_TxCpltCallback (QSPI_HandleTypeDef *hqspi)
void	HAL_QSPI_ErrorCallback (QSPI_HandleTypeDef *hqspi)

Detailed Description

Driver for W25Qxxx series Quad-SPI NOR Flash memory.

Author

mauro, Francesco Abate

Date

2024-08-01

Version

1.0.0

This driver provides a complete set of functions to interface with a Winbond W25Qxxx series NOR Flash memory chip using the STM32's Quad-SPI peripheral. It serves as a hardware abstraction layer for all flash memory operations.

Configuration

This driver is highly configurable. All user-tunable parameters are located in this header file under the "User Configuration" group. Key features to configure include:

• Communication mode (Polling vs. DMA).
• Flash access mode (Indirect vs. Memory-Mapped).
• QSPI protocol (Single, Dual, or Quad SPI mode).
• Target flash chip memory layout (size, pages, sectors).

Definition in file z_qflash_W25QXXX.h.

Enumeration Type Documentation

HAL_StatusTypeDef

enum HAL_StatusTypeDef

HAL Status structures definition.

Enumerator
HAL_OK
HAL_ERROR
HAL_BUSY
HAL_TIMEOUT

Definition at line 314 of file z_qflash_W25QXXX.h.

{
  HAL_OK       = 0x00,
  HAL_ERROR    = 0x01,
  HAL_BUSY     = 0x02,
  HAL_TIMEOUT  = 0x03
} HAL_StatusTypeDef;
