Status and Control Functions

Functions for controlling chip state (reset, write enable) and reading status registers. More...

Collaboration diagram for Status and Control Functions:

Functions
HAL_StatusTypeDef	QFlash_Reset (void)
HAL_StatusTypeDef	QFlash_WriteEnable (void)
	enables writes
HAL_StatusTypeDef	QFlash_WriteDisable (void)
	disables writes
HAL_StatusTypeDef	QFlash_ReadSR1 (uint8_t *dataptr)
HAL_StatusTypeDef	QFlash_ReadSR2 (uint8_t *dataptr)
HAL_StatusTypeDef	QFlash_ReadSR3 (uint8_t *dataptr)
HAL_StatusTypeDef	QFlash_WriteSR2 (uint8_t data)
	writes to register 2
HAL_StatusTypeDef	QFlash_WriteSR3 (uint8_t data)
	writes to register 3
HAL_StatusTypeDef	QFlash_CheckSR1 (void)
HAL_StatusTypeDef	QFlash_WaitForWritingComplete (void)
HAL_StatusTypeDef	QFlash_PowerDown (void)
HAL_StatusTypeDef	QFlash_PowerUp (void)

Detailed Description

Functions for controlling chip state (reset, write enable) and reading status registers.

Function Documentation

QFlash_CheckSR1()

HAL_StatusTypeDef QFlash_CheckSR1

(

void

)

Definition at line 724 of file z_qflash_W25QXXX.c.

                                    {
    HAL_StatusTypeDef result = HAL_OK;
    uint8_t sr;

    QFlash_ReadSR1(&sr);

//bitwise test of the SR1 content
    if (!((sr & 1)==0)) {  //why flash is busy? It shouldn't
        result=HAL_ERROR;
    } else if (!((sr & 2)==0)) {  //if write_enabled, disable it
        QFlash_WriteDisable();
        HAL_Delay(1);
        QFlash_ReadSR1(&sr);
        if (!((sr & 2)==0)){ //why flash is still writeable? It shouldn't
            result=HAL_ERROR;
        }
    }
    return result;
}

References HAL_ERROR, HAL_OK, QFlash_ReadSR1(), and QFlash_WriteDisable().

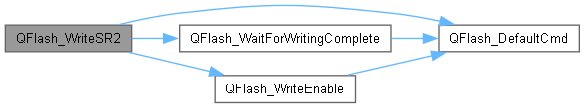

Here is the call graph for this function:

QFlash_PowerDown()

HAL_StatusTypeDef QFlash_PowerDown

(

void

)

Definition at line 1081 of file z_qflash_W25QXXX.c.

                                    {
    QSPI_CommandTypeDef sCommand = {0};

    QFlash_DefaultCmd(&sCommand);
    if (QFlash_WaitForWritingComplete())
        return HAL_ERROR;
    sCommand.Instruction    = W25_POWERDOWN;
    sCommand.DataMode       = QSPI_DATA_NONE;
    sCommand.AddressMode    = QSPI_ADDRESS_NONE;

#ifdef EXT_FLASH_QSPI_DMA_MODE
    while (!QSpiAvailable) {};  // waiting for a free QSPI port.
#endif //EXT_FLASH_QSPI_DMA_MODE

    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }

    return HAL_OK;
}

References FLASH_QSPI_PORT, HAL_ERROR, HAL_OK, QFLASH_DEF_TIMEOUT, QFlash_DefaultCmd(), QFlash_WaitForWritingComplete(), QSpiAvailable, and W25_POWERDOWN.

Here is the call graph for this function:

QFlash_PowerUp()

HAL_StatusTypeDef QFlash_PowerUp

(

void

)

Definition at line 1112 of file z_qflash_W25QXXX.c.

                                  {
    QSPI_CommandTypeDef sCommand = {0};

    QFlash_DefaultCmd(&sCommand);
    if (QFlash_WaitForWritingComplete())
        return HAL_ERROR;
    sCommand.Instruction    = W25_POWERUP_ID;
    sCommand.DataMode       = QSPI_DATA_NONE;
    sCommand.AddressMode    = QSPI_ADDRESS_NONE;

#ifdef EXT_FLASH_QSPI_DMA_MODE
    while (!QSpiAvailable) {};  // waiting for a free QSPI port.
#endif //EXT_FLASH_QSPI_DMA_MODE

    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }

    return HAL_OK;
}

References FLASH_QSPI_PORT, HAL_ERROR, HAL_OK, QFLASH_DEF_TIMEOUT, QFlash_DefaultCmd(), QFlash_WaitForWritingComplete(), QSpiAvailable, and W25_POWERUP_ID.

Here is the call graph for this function:

QFlash_ReadSR1()

HAL_StatusTypeDef QFlash_ReadSR1

(

uint8_t *

dataptr

)

Definition at line 502 of file z_qflash_W25QXXX.c.

                                                  {
QSPI_CommandTypeDef sCommand = {0};

    QFlash_DefaultCmd(&sCommand);
    sCommand.Instruction    = W25_R_SR1;
    sCommand.DataMode       = QSPI_DATA_1_LINE;
    sCommand.AddressMode    = QSPI_ADDRESS_NONE;
    sCommand.AddressSize    = QSPI_ADDRESS_NONE;
    sCommand.Address        = 0x0;
    sCommand.NbData         = 1;

#ifdef EXT_FLASH_QSPI_DMA_MODE
    while (!QSpiAvailable) {};  // waiting for a free QSPI port.
    QSpiAvailable=0;            //set QSPI busy
    QSpiReadDataAvailable=0;    //set data read unavailable yet
    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }
    if (HAL_QSPI_Receive_DMA(&FLASH_QSPI_PORT, dataptr) != HAL_OK) { // Receive data
        return HAL_ERROR;
    }
    QFlash_WaitForDataAvailable(0);
#else
    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }
    if (HAL_QSPI_Receive(&FLASH_QSPI_PORT, dataptr, QFLASH_DEF_TIMEOUT) != HAL_OK) { // Receive data
        return HAL_ERROR;
    }
#endif //EXT_FLASH_QSPI_DMA_MODE

    return HAL_OK;
}

References FLASH_QSPI_PORT, HAL_ERROR, HAL_OK, QFLASH_DEF_TIMEOUT, QFlash_DefaultCmd(), QFlash_WaitForDataAvailable(), QSpiAvailable, QSpiReadDataAvailable, and W25_R_SR1.

Referenced by QFlash_CheckSR1().

Here is the call graph for this function:

Here is the caller graph for this function:

QFlash_ReadSR2()

HAL_StatusTypeDef QFlash_ReadSR2

(

uint8_t *

dataptr

)

Definition at line 545 of file z_qflash_W25QXXX.c.

                                                  {

QSPI_CommandTypeDef sCommand = {0};

    QFlash_DefaultCmd(&sCommand);
    sCommand.Instruction    = W25_R_SR2;
    sCommand.DataMode       = QSPI_DATA_1_LINE;
    sCommand.AddressMode    = QSPI_ADDRESS_NONE;
    sCommand.AddressSize    = QSPI_ADDRESS_NONE;
    sCommand.Address        = 0x0;
    sCommand.NbData         = 1;

#ifdef EXT_FLASH_QSPI_DMA_MODE
    while (!QSpiAvailable) {};  // waiting for a free QSPI port.
    QSpiAvailable=0;            //set QSPI busy
    QSpiReadDataAvailable=0;    //set data read unavailable yet
    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }
    if (HAL_QSPI_Receive_DMA(&FLASH_QSPI_PORT, dataptr) != HAL_OK) { // Receive data
        return HAL_ERROR;
    }
    QFlash_WaitForDataAvailable(0);
#else
    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }
    if (HAL_QSPI_Receive(&FLASH_QSPI_PORT, dataptr, QFLASH_DEF_TIMEOUT) != HAL_OK) { // Receive data
        return HAL_ERROR;
    }
#endif //EXT_FLASH_QSPI_DMA_MODE

    return HAL_OK;
}

References FLASH_QSPI_PORT, HAL_ERROR, HAL_OK, QFLASH_DEF_TIMEOUT, QFlash_DefaultCmd(), QFlash_WaitForDataAvailable(), QSpiAvailable, QSpiReadDataAvailable, and W25_R_SR2.

Here is the call graph for this function:

QFlash_ReadSR3()

HAL_StatusTypeDef QFlash_ReadSR3

(

uint8_t *

dataptr

)

Definition at line 589 of file z_qflash_W25QXXX.c.

                                                  {
QSPI_CommandTypeDef sCommand = {0};

    QFlash_DefaultCmd(&sCommand);
    sCommand.Instruction    = W25_R_SR3;
    sCommand.DataMode       = QSPI_DATA_1_LINE;
    sCommand.AddressMode    = QSPI_ADDRESS_NONE;
    sCommand.AddressSize    = QSPI_ADDRESS_NONE;
    sCommand.Address        = 0x0;
    sCommand.NbData         = 1;

#ifdef EXT_FLASH_QSPI_DMA_MODE
    while (!QSpiAvailable) {};  // waiting for a free QSPI port.
    QSpiAvailable=0;            //set QSPI busy
    QSpiReadDataAvailable=0;    //set data read unavailable yet
    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }
    if (HAL_QSPI_Receive_DMA(&FLASH_QSPI_PORT, dataptr) != HAL_OK) { // Receive data
        return HAL_ERROR;
    }
    QFlash_WaitForDataAvailable(0);
#else
    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }
    if (HAL_QSPI_Receive(&FLASH_QSPI_PORT, dataptr, QFLASH_DEF_TIMEOUT) != HAL_OK) { // Receive data
        return HAL_ERROR;
    }
#endif //EXT_FLASH_QSPI_DMA_MODE

    return HAL_OK;
}

References FLASH_QSPI_PORT, HAL_ERROR, HAL_OK, QFLASH_DEF_TIMEOUT, QFlash_DefaultCmd(), QFlash_WaitForDataAvailable(), QSpiAvailable, QSpiReadDataAvailable, and W25_R_SR3.

Here is the call graph for this function:

QFlash_Reset()

HAL_StatusTypeDef QFlash_Reset

(

void

)

Definition at line 129 of file z_qflash_W25QXXX.c.

                                 {
    QSPI_CommandTypeDef sCommand = {0};

    // send a "reset enable" command
    QFlash_DefaultCmd(&sCommand);
    sCommand.Instruction = W25_RESET_EN;
    sCommand.AddressMode = QSPI_ADDRESS_NONE;
    sCommand.DataMode = QSPI_DATA_NONE;

#ifdef EXT_FLASH_QSPI_DMA_MODE
    while (!QSpiAvailable) {};  // waiting for a free QSPI port.
#endif //EXT_FLASH_QSPI_DMA_MODE

    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }
    HAL_Delay(1);                                   // 30us needed by resetting

    // send a "reset" command
    QFlash_DefaultCmd(&sCommand);
    sCommand.Instruction = W25_RESET;
    sCommand.AddressMode = QSPI_ADDRESS_NONE;
    sCommand.DataMode = QSPI_DATA_NONE;

#ifdef EXT_FLASH_QSPI_DMA_MODE
    while (!QSpiAvailable) {};  // waiting for a free QSPI port.
#endif //EXT_FLASH_QSPI_DMA_MODE

    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }
    HAL_Delay(1);                                   // 30us needed by resetting
    return HAL_OK;

}

References FLASH_QSPI_PORT, HAL_ERROR, HAL_OK, QFLASH_DEF_TIMEOUT, QFlash_DefaultCmd(), QSpiAvailable, W25_RESET, and W25_RESET_EN.

Referenced by QFlash_Init().

Here is the call graph for this function:

Here is the caller graph for this function:

QFlash_WaitForWritingComplete()

HAL_StatusTypeDef QFlash_WaitForWritingComplete

(

void

)

Definition at line 762 of file z_qflash_W25QXXX.c.

                                                 {
    QSPI_CommandTypeDef sCommand = {0};


/* using HAL_QSPI_AutoPolling()*/

QSPI_AutoPollingTypeDef sConfig;

QFlash_DefaultCmd(&sCommand);
    sCommand.Instruction = W25_R_SR1;
    sCommand.AddressMode = QSPI_ADDRESS_NONE;
    sCommand.DataMode = QSPI_DATA_1_LINE;

    sConfig.Mask = SR1_BIT_BSY;
    sConfig.Match = 0;
    sConfig.MatchMode = QSPI_MATCH_MODE_AND;
    sConfig.StatusBytesSize = 1;
    sConfig.Interval = 0x10;
    sConfig.AutomaticStop = QSPI_AUTOMATIC_STOP_ENABLE;

#ifdef EXT_FLASH_QSPI_DMA_MODE
    while (!QSpiAvailable) {};  // waiting for a free QSPI port.
#endif //EXT_FLASH_QSPI_DMA_MODE

    if (HAL_QSPI_AutoPolling(&FLASH_QSPI_PORT, &sCommand, &sConfig, QFLASH_BSY_TIMEOUT) != HAL_OK) {
        return HAL_ERROR;
    }

/* alternative implementation "SPI style"
 * looping, directly  reading Status Register 1
 * until Busy flag resets
 * (k just count loops)
 */
/*
    uint8_t sr;
    uint32_t k=0;
    do {
        sr=QFlash_ReadSR1();
        sr=(sr & 1);
        k+=1;
    }   while (sr);

*/

    return HAL_OK;

}

References FLASH_QSPI_PORT, HAL_ERROR, HAL_OK, QFLASH_BSY_TIMEOUT, QFlash_DefaultCmd(), QSpiAvailable, SR1_BIT_BSY, and W25_R_SR1.

Referenced by QFlash_BErase32k(), QFlash_BErase64k(), QFlash_ChipErase(), QFlash_PowerDown(), QFlash_PowerUp(), QFlash_SErase4k(), QFlash_Write(), QFlash_WriteSR2(), and QFlash_WriteSR3().

Here is the call graph for this function:

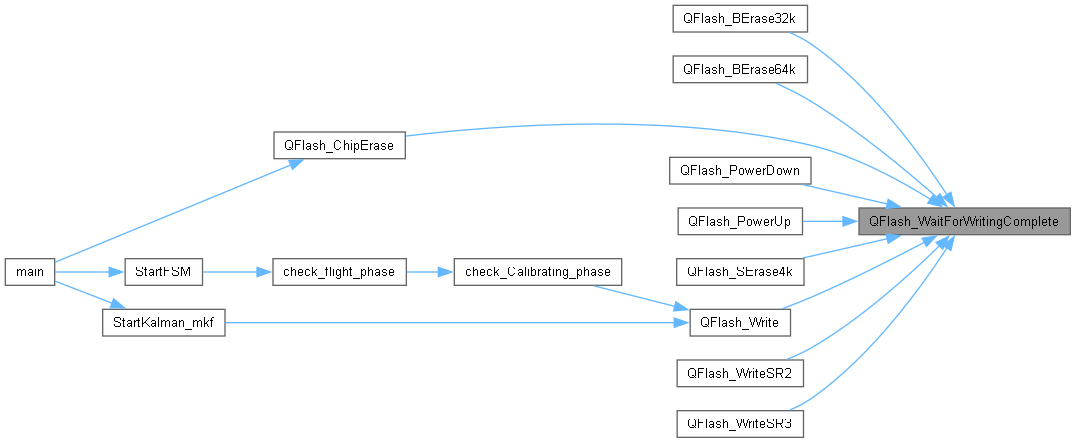

Here is the caller graph for this function:

QFlash_WriteDisable()

HAL_StatusTypeDef QFlash_WriteDisable

(

void

)

disables writes

Definition at line 475 of file z_qflash_W25QXXX.c.

                                       {
    QSPI_CommandTypeDef sCommand = {0};

    QFlash_DefaultCmd(&sCommand);
    sCommand.Instruction    = W25_W_DISABLE;
    sCommand.DataMode       = QSPI_DATA_NONE;
    sCommand.AddressMode    = QSPI_ADDRESS_NONE;

#ifdef EXT_FLASH_QSPI_DMA_MODE
    while (!QSpiAvailable) {};  // waiting for a free QSPI port.
#endif //EXT_FLASH_QSPI_DMA_MODE
    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }

    return HAL_OK;
}

References FLASH_QSPI_PORT, HAL_ERROR, HAL_OK, QFLASH_DEF_TIMEOUT, QFlash_DefaultCmd(), QSpiAvailable, and W25_W_DISABLE.

Referenced by QFlash_CheckSR1().

Here is the call graph for this function:

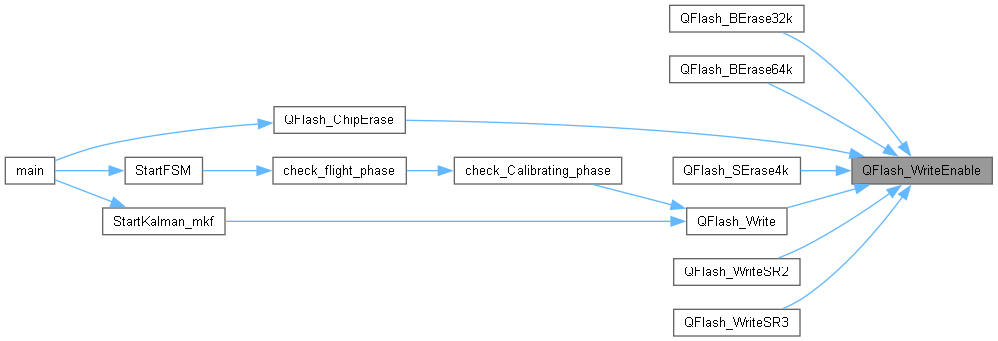

Here is the caller graph for this function:

QFlash_WriteEnable()

HAL_StatusTypeDef QFlash_WriteEnable

(

void

)

enables writes

Definition at line 425 of file z_qflash_W25QXXX.c.

                                      {
QSPI_CommandTypeDef sCommand = {0};


//Send a "Write Enable" command
    QFlash_DefaultCmd(&sCommand);
    sCommand.Instruction    = W25_W_ENABLE;
    sCommand.DataMode       = QSPI_DATA_NONE;
    sCommand.AddressMode    = QSPI_ADDRESS_NONE;

#ifdef EXT_FLASH_QSPI_DMA_MODE
    while (!QSpiAvailable) {};  // waiting for a free QSPI port.
#endif //EXT_FLASH_QSPI_DMA_MODE
    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }

/*
//Wait for Write Enable bit set

    QSPI_AutoPollingTypeDef sConfig;

    QFlash_DefaultCmd(&sCommand);
    sCommand.Instruction = W25_R_SR1;
    sCommand.DataMode = QSPI_DATA_1_LINE;
    sCommand.AddressMode = QSPI_ADDRESS_NONE;

    sConfig.Mask = SR1_BIT_WEL;
    sConfig.Match = 2;
    sConfig.MatchMode = QSPI_MATCH_MODE_AND;
    sConfig.StatusBytesSize = 1;
    sConfig.Interval = 0x10;
    sConfig.AutomaticStop = QSPI_AUTOMATIC_STOP_ENABLE;

    if (HAL_QSPI_AutoPolling(&FLASH_QSPI_PORT, &sCommand, &sConfig, QFLASH_BSY_TIMEOUT) != HAL_OK) {
        return HAL_ERROR;
    }
*/

    return HAL_OK;

}

References FLASH_QSPI_PORT, HAL_ERROR, HAL_OK, QFLASH_DEF_TIMEOUT, QFlash_DefaultCmd(), QSpiAvailable, and W25_W_ENABLE.

Referenced by QFlash_BErase32k(), QFlash_BErase64k(), QFlash_ChipErase(), QFlash_SErase4k(), QFlash_Write(), QFlash_WriteSR2(), and QFlash_WriteSR3().

Here is the call graph for this function:

Here is the caller graph for this function:

QFlash_WriteSR2()

HAL_StatusTypeDef QFlash_WriteSR2

(

uint8_t

data

)

writes to register 2

Definition at line 631 of file z_qflash_W25QXXX.c.

                                                {
    QSPI_CommandTypeDef sCommand = {0};

    if (QFlash_WriteEnable())
        return HAL_ERROR;

    QFlash_DefaultCmd(&sCommand);
    sCommand.Instruction    = W25_W_SR2;
    sCommand.DataMode       = QSPI_DATA_1_LINE;
    sCommand.AddressMode    = QSPI_ADDRESS_NONE;
    sCommand.AddressSize    = QSPI_ADDRESS_NONE;
    sCommand.Address        = 0x0;
    sCommand.NbData         = 1;

#ifdef EXT_FLASH_QSPI_DMA_MODE
    while (!QSpiAvailable) {};  // waiting for a free QSPI port.
    QSpiAvailable=0;            //set QSPI busy
    QSpiReadDataAvailable=0;    //set data read unavailable yet
    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }
    if (HAL_QSPI_Transmit_DMA(&FLASH_QSPI_PORT, &data) != HAL_OK) { // Receive data
        return HAL_ERROR;
    }
#else
    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }
    if (HAL_QSPI_Transmit(&FLASH_QSPI_PORT, &data, QFLASH_DEF_TIMEOUT) != HAL_OK) {
        return HAL_ERROR;
    }
#endif //EXT_FLASH_QSPI_DMA_MODE

    QFlash_WaitForWritingComplete();

    return HAL_OK;
}

References FLASH_QSPI_PORT, HAL_ERROR, HAL_OK, QFLASH_DEF_TIMEOUT, QFlash_DefaultCmd(), QFlash_WaitForWritingComplete(), QFlash_WriteEnable(), QSpiAvailable, QSpiReadDataAvailable, and W25_W_SR2.

Here is the call graph for this function:

QFlash_WriteSR3()

HAL_StatusTypeDef QFlash_WriteSR3

(

uint8_t

data

)

writes to register 3

Definition at line 676 of file z_qflash_W25QXXX.c.

                                                {
    QSPI_CommandTypeDef sCommand = {0};

    if (QFlash_WriteEnable())
        return HAL_ERROR;

    QFlash_DefaultCmd(&sCommand);
    sCommand.Instruction    = W25_W_SR3;
    sCommand.DataMode       = QSPI_DATA_1_LINE;
    sCommand.AddressMode    = QSPI_ADDRESS_NONE;
    sCommand.AddressSize    = QSPI_ADDRESS_NONE;
    sCommand.Address        = 0x0;
    sCommand.NbData         = 1;

#ifdef EXT_FLASH_QSPI_QDMA_MODE
    while (!QSpiAvailable) {};  // waiting for a free QSPI port.
    QSpiAvailable=0;            //set QSPI busy
    QSpiReadDataAvailable=0;    //set data read unavailable yet
    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }
    if (HAL_QSPI_Transmit_DMA(&FLASH_QSPI_PORT, &data) != HAL_OK) { // Receive data
        return HAL_ERROR;
    }
#else
    if (HAL_QSPI_Command(&FLASH_QSPI_PORT, &sCommand, QFLASH_DEF_TIMEOUT) != HAL_OK) {  //Send command
        return HAL_ERROR;
    }
    if (HAL_QSPI_Transmit(&FLASH_QSPI_PORT, &data, QFLASH_DEF_TIMEOUT) != HAL_OK) { // Receive data
        return HAL_ERROR;
    }
#endif //EXT_FLASH_QSPI_DMA_MODE

    QFlash_WaitForWritingComplete();

    return HAL_OK;
}

References FLASH_QSPI_PORT, HAL_ERROR, HAL_OK, QFLASH_DEF_TIMEOUT, QFlash_DefaultCmd(), QFlash_WaitForWritingComplete(), QFlash_WriteEnable(), QSpiAvailable, QSpiReadDataAvailable, and W25_W_SR3.

Here is the call graph for this function:
