LSM6DSO32_tilt_detection

This section groups all the functions that manage the tilt event detection. More...

Collaboration diagram for LSM6DSO32_tilt_detection:

Functions
int32_t	lsm6dso32_tilt_sens_set (stmdev_ctx_t *ctx, uint8_t val)
	Enable tilt calculation.[set].
int32_t	lsm6dso32_tilt_sens_get (stmdev_ctx_t *ctx, uint8_t *val)
	Enable tilt calculation.[get].
int32_t	lsm6dso32_tilt_flag_data_ready_get (stmdev_ctx_t *ctx, uint8_t *val)
	Interrupt status bit for tilt detection.[get].

Detailed Description

This section groups all the functions that manage the tilt event detection.

Function Documentation

lsm6dso32_tilt_flag_data_ready_get()

int32_t lsm6dso32_tilt_flag_data_ready_get	(	stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

Interrupt status bit for tilt detection.[get].

Parameters

ctx	read / write interface definitions
val	change the values of is_tilt in reg EMB_FUNC_STATUS

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 7461 of file lsm6dso32_reg.c.

{
  lsm6dso32_emb_func_status_t reg;
  int32_t ret;

  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_EMB_FUNC_STATUS,
                             (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    *val = reg.is_tilt;
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References lsm6dso32_emb_func_status_t::is_tilt, LSM6DSO32_EMB_FUNC_STATUS, LSM6DSO32_EMBEDDED_FUNC_BANK, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), and LSM6DSO32_USER_BANK.

Here is the call graph for this function:

lsm6dso32_tilt_sens_get()

int32_t lsm6dso32_tilt_sens_get	(	stmdev_ctx_t *	ctx,
		uint8_t *	val
	)

Enable tilt calculation.[get].

Parameters

ctx	read / write interface definitions
val	change the values of tilt_en in reg EMB_FUNC_EN_A

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 7431 of file lsm6dso32_reg.c.

{
  lsm6dso32_emb_func_en_a_t reg;
  int32_t ret;

  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_EMB_FUNC_EN_A,
                             (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    *val = reg.tilt_en;
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References LSM6DSO32_EMB_FUNC_EN_A, LSM6DSO32_EMBEDDED_FUNC_BANK, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), LSM6DSO32_USER_BANK, and lsm6dso32_emb_func_en_a_t::tilt_en.

Here is the call graph for this function:

lsm6dso32_tilt_sens_set()

int32_t lsm6dso32_tilt_sens_set	(	stmdev_ctx_t *	ctx,
		uint8_t	val
	)

Enable tilt calculation.[set].

Parameters

ctx	read / write interface definitions
val	change the values of tilt_en in reg EMB_FUNC_EN_A

Return values

interface

status (MANDATORY: return 0 -> no Error)

Definition at line 7395 of file lsm6dso32_reg.c.

{
  lsm6dso32_emb_func_en_a_t reg;
  int32_t ret;

  ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_EMBEDDED_FUNC_BANK);

  if (ret == 0)
  {
    ret = lsm6dso32_read_reg(ctx, LSM6DSO32_EMB_FUNC_EN_A,
                             (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    reg.tilt_en = val;
    ret = lsm6dso32_write_reg(ctx, LSM6DSO32_EMB_FUNC_EN_A,
                              (uint8_t *)&reg, 1);
  }

  if (ret == 0)
  {
    ret = lsm6dso32_mem_bank_set(ctx, LSM6DSO32_USER_BANK);
  }

  return ret;
}

References LSM6DSO32_EMB_FUNC_EN_A, LSM6DSO32_EMBEDDED_FUNC_BANK, lsm6dso32_mem_bank_set(), lsm6dso32_read_reg(), LSM6DSO32_USER_BANK, lsm6dso32_write_reg(), and lsm6dso32_emb_func_en_a_t::tilt_en.

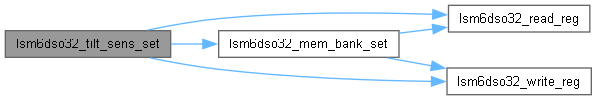

Here is the call graph for this function:
