Provides MATLAB Coder helper functions to find indices of true values. More...

#include "rtwtypes.h"
#include <stddef.h>
#include <stdlib.h>

Include dependency graph for find.h:

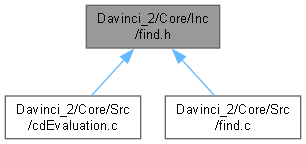

This graph shows which files directly or indirectly include this file:

Functions
int	b_eml_find (const boolean_T x[5], int i_data[])
	Finds the index of the last `true` element in a 5-element boolean array.

int	eml_find (const boolean_T x[6], int i_data[])
	Finds the index of the last `true` element in a 6-element boolean array.

Detailed Description

Provides MATLAB Coder helper functions to find indices of true values.

Author: Francesco Abate, MSA (Originally generated by MATLAB Coder)

Version: 24.2 (MATLAB Coder version)

Date: 2024-12-03

This auto-generated helper file from MATLAB Coder provides C equivalents of the MATLAB find() command. The functions search a boolean array and return the index of the last element that is true.

These functions are used as low-level utilities by the cdEvaluation function to determine the correct indices for lookup table interpolation within the MPC controller.

Definition in file find.h.

Function Documentation

◆ b_eml_find()

int b_eml_find	(	const boolean_T	x[5],
		int	i_data[]
	)

Finds the index of the last true element in a 5-element boolean array.

Parameters

[in]	x	The 5-element boolean input array to search.
[out]	i_data	An output array where the found index will be stored. The index is 1-based, matching MATLAB's convention.

Returns: The number of true elements found (0 or 1). Returns 0 if no true elements are found, and 1 if at least one is found.

Definition at line 21 of file find.c.

{
  int i_size;
  int idx;
  int ii;
  boolean_T exitg1;
  idx = 0;
  i_size = 1;
  ii = 5;
  exitg1 = false;
  while ((!exitg1) && (ii > 0)) {
    if (x[ii - 1]) {
      idx = 1;
      i_data[0] = ii;
      exitg1 = true;
    } else {
      ii--;
    }
  }
  if (idx == 0) {
    i_size = 0;
  }
  return i_size;
}

Referenced by cdEvaluation().

Here is the caller graph for this function:

◆ eml_find()

int eml_find	(	const boolean_T	x[6],
		int	i_data[]
	)

Finds the index of the last true element in a 6-element boolean array.
