Sensor driver for BMP3 sensor. More...

#include "bmp3.h"

Include dependency graph for bmp3.c:

Functions
static int8_t	get_calib_data (struct bmp3_dev *dev)
	This internal API reads the calibration data from the sensor, parse it then compensates it and store in the device structure.

static void	parse_calib_data (const uint8_t reg_data, struct bmp3_dev dev)
	This internal API is used to parse the calibration data, compensates it and store it in device structure.

static int8_t	get_odr_filter_settings (struct bmp3_settings settings, struct bmp3_dev dev)
	This internal API gets the over sampling, ODR and filter settings from the sensor.

static void	parse_sensor_data (const uint8_t reg_data, struct bmp3_uncomp_data uncomp_data)
	This internal API is used to parse the pressure and temperature data and store it in the bmp3_uncomp_data structure instance.

static int8_t	compensate_data (uint8_t sensor_comp, const struct bmp3_uncomp_data uncomp_data, struct bmp3_data comp_data, struct bmp3_calib_data *calib_data)
	This internal API is used to compensate the pressure or temperature or both the data according to the component selected by the user.

static int8_t	compensate_temperature (int64_t temperature, const struct bmp3_uncomp_data uncomp_data, struct bmp3_calib_data *calib_data)
	This internal API is used to compensate the raw temperature data and return the compensated temperature data in integer data type.

static int8_t	compensate_pressure (uint64_t pressure, const struct bmp3_uncomp_data uncomp_data, const struct bmp3_calib_data *calib_data)
	This internal API is used to compensate the pressure data and return the compensated pressure data in integer data type.

static uint32_t	pow_bmp3 (uint8_t base, uint8_t power)
	This internal API is used to calculate the power functionality.

static uint8_t	are_settings_changed (uint32_t sub_settings, uint32_t settings)
	This internal API is used to identify the settings which the user wants to modify in the sensor.

static void	interleave_reg_addr (const uint8_t reg_addr, uint8_t temp_buff, const uint8_t *reg_data, uint32_t len)
	This internal API interleaves the register address between the register data buffer for burst write operation.

static int8_t	set_pwr_ctrl_settings (uint32_t desired_settings, const struct bmp3_settings settings, struct bmp3_dev dev)
	This internal API sets the pressure enable and temperature enable settings of the sensor.

static int8_t	set_odr_filter_settings (uint32_t desired_settings, struct bmp3_settings settings, struct bmp3_dev dev)
	This internal API sets the over sampling, ODR and filter settings of the sensor based on the settings selected by the user.

static int8_t	set_int_ctrl_settings (uint32_t desired_settings, const struct bmp3_settings settings, struct bmp3_dev dev)
	This internal API sets the interrupt control (output mode, level, latch and data ready) settings of the sensor based on the settings selected by the user.

static int8_t	set_advance_settings (uint32_t desired_settings, const struct bmp3_settings settings, struct bmp3_dev dev)
	This internal API sets the advance (i2c_wdt_en, i2c_wdt_sel) settings of the sensor based on the settings selected by the user.

static void	fill_osr_data (uint32_t desired_settings, uint8_t addr, uint8_t reg_data, uint8_t len, const struct bmp3_settings settings)
	This internal API fills the register address and register data of the the over sampling settings for burst write operation.

static void	fill_odr_data (uint8_t addr, uint8_t reg_data, uint8_t len, struct bmp3_settings settings)
	This internal API fills the register address and register data of the the ODR settings for burst write operation.

static void	fill_filter_data (uint8_t addr, uint8_t reg_data, uint8_t len, const struct bmp3_settings settings)
	This internal API fills the register address and register data of the the filter settings for burst write operation.

static int8_t	null_ptr_check (const struct bmp3_dev *dev)
	This internal API is used to validate the device pointer for null conditions.

static void	parse_sett_data (const uint8_t reg_data, struct bmp3_settings settings)
	This internal API parse the power control(power mode, pressure enable and temperature enable), over sampling, ODR, filter and interrupt control settings and store in the device structure.

static void	parse_pwr_ctrl_settings (const uint8_t reg_data, struct bmp3_settings settings)
	This internal API parse the power control(power mode, pressure enable and temperature enable) settings and store in the device structure.

static void	parse_odr_filter_settings (const uint8_t reg_data, struct bmp3_odr_filter_settings settings)
	This internal API parse the over sampling, ODR and filter settings and store in the device structure.

static void	parse_int_ctrl_settings (const uint8_t reg_data, struct bmp3_int_ctrl_settings settings)
	This internal API parse the interrupt control(output mode, level, latch and data ready) settings and store in the device structure.

static void	parse_advance_settings (const uint8_t reg_data, struct bmp3_adv_settings settings)
	This internal API parse the advance (i2c_wdt_en, i2c_wdt_sel) settings and store in the device structure.

static int8_t	validate_normal_mode_settings (struct bmp3_settings settings, struct bmp3_dev dev)
	This internal API validate the normal mode settings of the sensor.

static int8_t	validate_osr_and_odr_settings (const struct bmp3_settings *settings)
	This internal API validate the over sampling, ODR settings of the sensor.

static uint32_t	calculate_press_meas_time (const struct bmp3_settings *settings)
	This internal API calculates the pressure measurement duration of the sensor.

static uint32_t	calculate_temp_meas_time (const struct bmp3_settings *settings)
	This internal API calculates the temperature measurement duration of the sensor.

static int8_t	verify_meas_time_and_odr_duration (uint32_t meas_t, uint32_t odr_duration)
	This internal API checks whether the measurement time and ODR duration of the sensor are proper.

static int8_t	put_device_to_sleep (struct bmp3_dev *dev)
	This internal API puts the device to sleep mode.

static int8_t	set_normal_mode (struct bmp3_settings settings, struct bmp3_dev dev)
	This internal API sets the normal mode in the sensor.

static int8_t	write_power_mode (const struct bmp3_settings settings, struct bmp3_dev dev)
	This internal API writes the power mode in the sensor.

static int8_t	get_sensor_status (struct bmp3_status status, struct bmp3_dev dev)
	This internal API fills the fifo_config_1(fifo_mode, fifo_stop_on_full, fifo_time_en, fifo_press_en, fifo_temp_en) settings in the reg_data variable so as to burst write in the sensor.

static int8_t	get_int_status (struct bmp3_status status, struct bmp3_dev dev)
	This API gets the interrupt (fifo watermark, fifo full, data ready) status from the sensor.

static int8_t	get_err_status (struct bmp3_status status, struct bmp3_dev dev)
	This API gets the fatal, command and configuration error from the sensor.

int8_t	bmp3_init (struct bmp3_dev *dev)
	This internal API converts the no. of frames required by the user to bytes so as to write in the watermark length register.

int8_t	bmp3_get_regs (uint8_t reg_addr, uint8_t reg_data, uint32_t len, struct bmp3_dev dev)
	This API reads the data from the given register address of the sensor.

int8_t	bmp3_set_regs (uint8_t reg_addr, const uint8_t reg_data, uint32_t len, struct bmp3_dev *dev)
	This API writes the given data to the register address of the sensor.

int8_t	bmp3_set_sensor_settings (uint32_t desired_settings, struct bmp3_settings settings, struct bmp3_dev dev)
	This API sets the power control(pressure enable and temperature enable), over sampling, ODR and filter settings in the sensor.

int8_t	bmp3_get_sensor_settings (struct bmp3_settings settings, struct bmp3_dev dev)
	This API gets the power control(power mode, pressure enable and temperature enable), over sampling, ODR, filter, interrupt control and advance settings from the sensor.

int8_t	bmp3_get_status (struct bmp3_status status, struct bmp3_dev dev)
	This API sets the fifo_config_1(fifo_mode, fifo_stop_on_full, fifo_time_en, fifo_press_en, fifo_temp_en), fifo_config_2(fifo_subsampling, data_select) and int_ctrl(fwtm_en, ffull_en) settings in the sensor.

int8_t	bmp3_get_fifo_length (uint16_t fifo_length, struct bmp3_dev dev)
	This API gets the fifo length from the sensor.

int8_t	bmp3_soft_reset (struct bmp3_dev *dev)
	This API performs the soft reset of the sensor.

int8_t	bmp3_fifo_flush (struct bmp3_dev *dev)
	This API performs the soft reset of the sensor.

int8_t	bmp3_set_op_mode (struct bmp3_settings settings, struct bmp3_dev dev)
	This API sets the power mode of the sensor.

int8_t	bmp3_get_op_mode (uint8_t op_mode, struct bmp3_dev dev)
	This API gets the power mode of the sensor.

int8_t	bmp3_get_sensor_data (uint8_t sensor_comp, struct bmp3_data comp_data, struct bmp3_dev dev)
	This API reads the pressure, temperature or both data from the sensor, compensates the data and store it in the bmp3_data structure instance passed by the user.

Detailed Description

Sensor driver for BMP3 sensor.

BSD-3-Clause

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the copyright holder nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Date: 2022-04-01

Version: v2.0.6

Definition in file bmp3.c.

Function Documentation

◆ are_settings_changed()

static uint8_t are_settings_changed	(	uint32_t	sub_settings,
		uint32_t	settings
	)

static

This internal API is used to identify the settings which the user wants to modify in the sensor.

Parameters

[in]	sub_settings	: Contains the settings subset to identify particular group of settings which the user is interested to change.
[in]	settings	: Contains the user specified settings.

Returns: Indicates whether user is interested to modify the settings which are related to sub_settings.

Return values

True	-> User wants to modify this group of settings
False	-> User does not want to modify this group of settings

Definition at line 2702 of file bmp3.c.

{
    uint8_t settings_changed = FALSE;

    if (sub_settings & desired_settings)
    {
        /* User wants to modify this particular settings */
        settings_changed = TRUE;
    }
    else
    {
        /* User don't want to modify this particular settings */
        settings_changed = FALSE;
    }

    return settings_changed;
}

References FALSE, and TRUE.

Referenced by bmp3_set_sensor_settings(), and set_odr_filter_settings().

Here is the caller graph for this function:

◆ bmp3_fifo_flush()

int8_t bmp3_fifo_flush ( struct bmp3_dev * dev )

This API performs the soft reset of the sensor.

Definition at line 1307 of file bmp3.c.

{
    int8_t rslt;
    uint8_t reg_addr = BMP3_REG_CMD;

    uint8_t fifo_flush_cmd = BMP3_FIFO_FLUSH;
    uint8_t cmd_rdy_status;
    uint8_t cmd_err_status;

    /* Check for command ready status */
    rslt = bmp3_get_regs(BMP3_REG_SENS_STATUS, &cmd_rdy_status, 1, dev);

    /* Device is ready to accept new command */
    if ((cmd_rdy_status & BMP3_CMD_RDY) && (rslt == BMP3_OK))
    {
        /* Write the soft reset command in the sensor */
        rslt = bmp3_set_regs(&reg_addr, &fifo_flush_cmd, 1, dev);

        /* Proceed if everything is fine until now */
        if (rslt == BMP3_OK)
        {
            /* Wait for 2 ms */
            dev->delay_us(2000, dev->intf_ptr);

            /* Read for command error status */
            rslt = bmp3_get_regs(BMP3_REG_ERR, &cmd_err_status, 1, dev);

            /* check for command error status */
            if ((cmd_err_status & BMP3_REG_CMD) || (rslt != BMP3_OK))
            {
                /* Command not written hence return
                 * error */
                rslt = BMP3_E_CMD_EXEC_FAILED;
            }
        }
    }

    return rslt;
}

References BMP3_CMD_RDY, BMP3_E_CMD_EXEC_FAILED, BMP3_FIFO_FLUSH, bmp3_get_regs(), BMP3_OK, BMP3_REG_CMD, BMP3_REG_ERR, BMP3_REG_SENS_STATUS, bmp3_set_regs(), bmp3_dev::delay_us, and bmp3_dev::intf_ptr.

Here is the call graph for this function:

◆ bmp3_get_fifo_length()

int8_t bmp3_get_fifo_length	(	uint16_t *	fifo_length,
		struct bmp3_dev *	dev
	)

This API gets the fifo length from the sensor.

Definition at line 1236 of file bmp3.c.

{
    int8_t rslt;
    uint8_t reg_data[2];

    if (fifo_length != NULL)
    {
        rslt = bmp3_get_regs(BMP3_REG_FIFO_LENGTH, reg_data, 2, dev);

        /* Proceed if read from register is fine */
        if (rslt == BMP3_OK)
        {
            /* Update the fifo length */
            *fifo_length = BMP3_CONCAT_BYTES(reg_data[1], reg_data[0]);
        }
    }
    else
    {
        rslt = BMP3_E_NULL_PTR;
    }

    return rslt;
}

References BMP3_CONCAT_BYTES, BMP3_E_NULL_PTR, bmp3_get_regs(), BMP3_OK, BMP3_REG_FIFO_LENGTH, and NULL.

Here is the call graph for this function:

◆ bmp3_get_op_mode()

int8_t bmp3_get_op_mode	(	uint8_t *	op_mode,
		struct bmp3_dev *	dev
	)

This API gets the power mode of the sensor.

Definition at line 1403 of file bmp3.c.

{
    int8_t rslt;

    if (op_mode != NULL)
    {
        /* Read the power mode register */
        rslt = bmp3_get_regs(BMP3_REG_PWR_CTRL, op_mode, 1, dev);

        /* Assign the power mode in the device structure */
        *op_mode = BMP3_GET_BITS(*op_mode, BMP3_OP_MODE);
    }
    else
    {
        rslt = BMP3_E_NULL_PTR;
    }

    return rslt;
}

References BMP3_E_NULL_PTR, BMP3_GET_BITS, bmp3_get_regs(), BMP3_REG_PWR_CTRL, and NULL.

Referenced by bmp3_set_op_mode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bmp3_get_regs()

int8_t bmp3_get_regs	(	uint8_t	reg_addr,
		uint8_t *	reg_data,
		uint32_t	len,
		struct bmp3_dev *	dev
	)

This API reads the data from the given register address of the sensor.

Definition at line 794 of file bmp3.c.

{
    int8_t rslt;
    uint32_t idx;

    /* Check for null pointer in the device structure */
    rslt = null_ptr_check(dev);

    /* Proceed if null check is fine */
    if ((rslt == BMP3_OK) && (reg_data != NULL))
    {
        uint32_t temp_len = len + dev->dummy_byte;
        uint8_t temp_buff[len + dev->dummy_byte];

        /* If interface selected is SPI */
        if (dev->intf != BMP3_I2C_INTF)
        {
            reg_addr = reg_addr | 0x80;

            /* Read the data from the register */
            dev->intf_rslt = dev->read(reg_addr, temp_buff, temp_len, dev->intf_ptr);
            for (idx = 0; idx < len; idx++)
            {
                reg_data[idx] = temp_buff[idx + dev->dummy_byte];
            }
        }
        else
        {
            /* Read the data using I2C */
            dev->intf_rslt = dev->read(reg_addr, reg_data, len, dev->intf_ptr);
        }

        /* Check for communication error */
        if (dev->intf_rslt != BMP3_INTF_RET_SUCCESS)
        {
            rslt = BMP3_E_COMM_FAIL;
        }
    }
    else
    {
        rslt = BMP3_E_NULL_PTR;
    }

    return rslt;
}

References BMP3_E_COMM_FAIL, BMP3_E_NULL_PTR, BMP3_I2C_INTF, BMP3_INTF_RET_SUCCESS, BMP3_OK, bmp3_dev::dummy_byte, bmp3_dev::intf, bmp3_dev::intf_ptr, bmp3_dev::intf_rslt, NULL, null_ptr_check(), and bmp3_dev::read.

Referenced by bmp3_fifo_flush(), bmp3_get_fifo_length(), bmp3_get_op_mode(), bmp3_get_sensor_data(), bmp3_get_sensor_settings(), bmp3_init(), bmp3_soft_reset(), get_calib_data(), get_err_status(), get_int_status(), get_odr_filter_settings(), get_sensor_status(), put_device_to_sleep(), set_advance_settings(), set_int_ctrl_settings(), set_normal_mode(), set_odr_filter_settings(), set_pwr_ctrl_settings(), and write_power_mode().

Here is the call graph for this function:

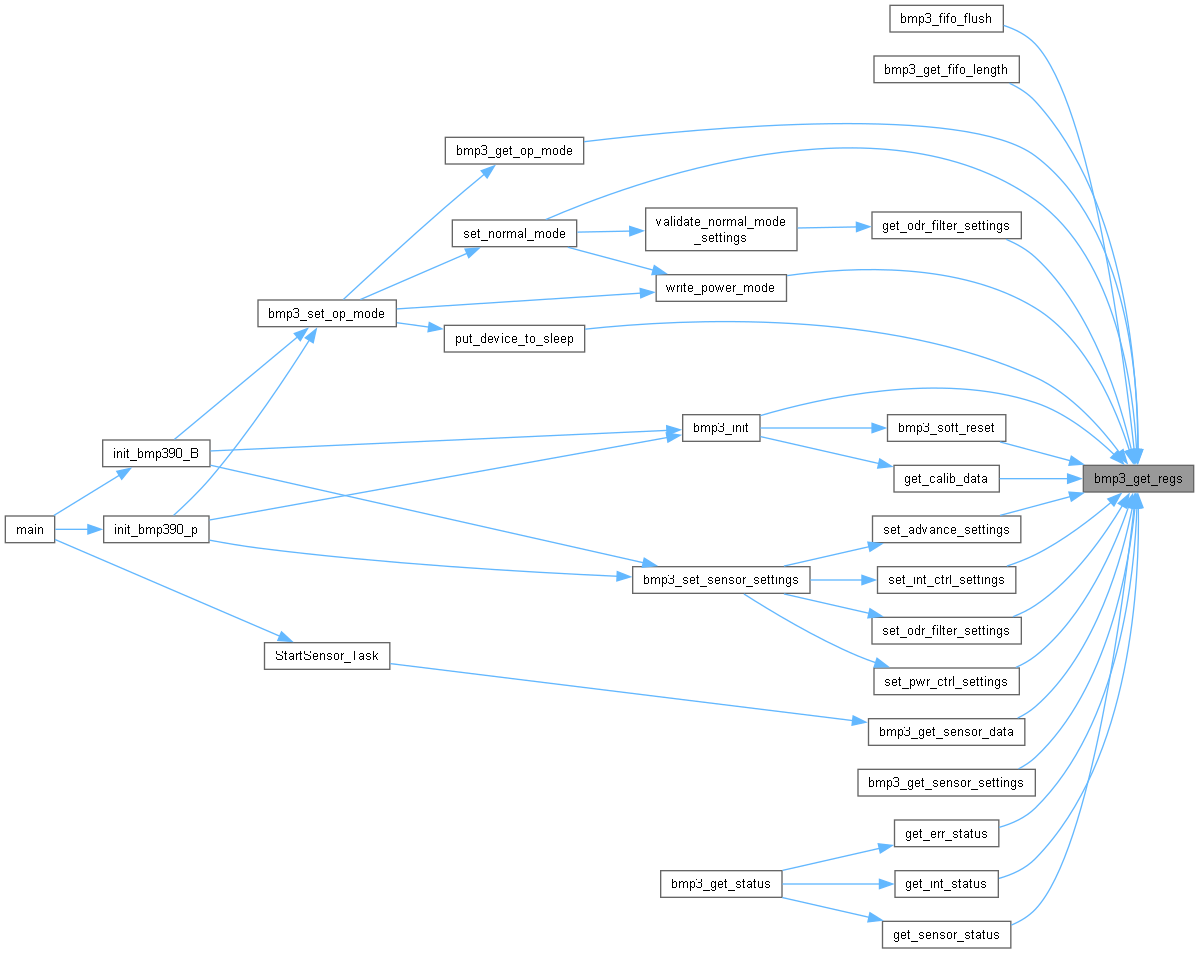

Here is the caller graph for this function:

◆ bmp3_get_sensor_data()

int8_t bmp3_get_sensor_data	(	uint8_t	sensor_comp,
		struct bmp3_data *	comp_data,
		struct bmp3_dev *	dev
	)

This API reads the pressure, temperature or both data from the sensor, compensates the data and store it in the bmp3_data structure instance passed by the user.

Definition at line 1428 of file bmp3.c.

{
    int8_t rslt;

    /* Array to store the pressure and temperature data read from
     * the sensor */
    uint8_t reg_data[BMP3_LEN_P_T_DATA] = { 0 };
    struct bmp3_uncomp_data uncomp_data = { 0 };

    if (comp_data != NULL)
    {
        /* Read the pressure and temperature data from the sensor */
        rslt = bmp3_get_regs(BMP3_REG_DATA, reg_data, BMP3_LEN_P_T_DATA, dev);

        if (rslt == BMP3_OK)
        {
            /* Parse the read data from the sensor */
            parse_sensor_data(reg_data, &uncomp_data);

            /* Compensate the pressure/temperature/both data read
             * from the sensor */
            rslt = compensate_data(sensor_comp, &uncomp_data, comp_data, &dev->calib_data);
        }
    }
    else
    {
        rslt = BMP3_E_NULL_PTR;
    }

    return rslt;
}

References BMP3_E_NULL_PTR, bmp3_get_regs(), BMP3_LEN_P_T_DATA, BMP3_OK, BMP3_REG_DATA, bmp3_dev::calib_data, compensate_data(), NULL, and parse_sensor_data().

Referenced by StartSensor_Task().

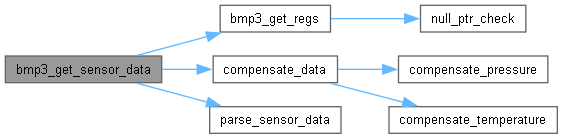

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bmp3_get_sensor_settings()

int8_t bmp3_get_sensor_settings	(	struct bmp3_settings *	settings,
		struct bmp3_dev *	dev
	)

This API gets the power control(power mode, pressure enable and temperature enable), over sampling, ODR, filter, interrupt control and advance settings from the sensor.

Definition at line 953 of file bmp3.c.

{
    int8_t rslt;
    uint8_t settings_data[BMP3_LEN_GEN_SETT];

    if (settings != NULL)
    {
        rslt = bmp3_get_regs(BMP3_REG_INT_CTRL, settings_data, BMP3_LEN_GEN_SETT, dev);

        if (rslt == BMP3_OK)
        {
            /* Parse the settings data */
            parse_sett_data(settings_data, settings);
        }
    }
    else
    {
        rslt = BMP3_E_NULL_PTR;
    }

    return rslt;
}

References BMP3_E_NULL_PTR, bmp3_get_regs(), BMP3_LEN_GEN_SETT, BMP3_OK, BMP3_REG_INT_CTRL, NULL, and parse_sett_data().

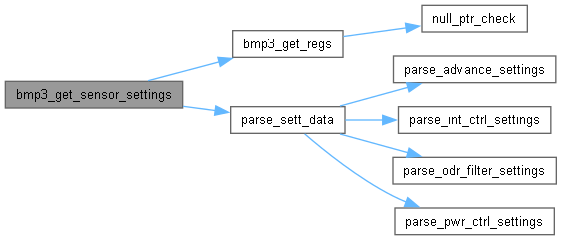

Here is the call graph for this function:

◆ bmp3_get_status()

int8_t bmp3_get_status	(	struct bmp3_status *	status,
		struct bmp3_dev *	dev
	)

This API sets the fifo_config_1(fifo_mode, fifo_stop_on_full, fifo_time_en, fifo_press_en, fifo_temp_en), fifo_config_2(fifo_subsampling, data_select) and int_ctrl(fwtm_en, ffull_en) settings in the sensor.

 @brief This API gets the fifo_config_1(fifo_mode,
 fifo_stop_on_full, fifo_time_en, fifo_press_en, fifo_temp_en),
 fifo_config_2(fifo_subsampling, data_select) and int_ctrl(fwtm_en, ffull_en)
 settings from the sensor.
&zwj;/

int8_t bmp3_get_fifo_settings(struct bmp3_fifo_settings *fifo_settings, struct bmp3_dev *dev) { int8_t rslt; uint8_t fifo_sett[3]; uint8_t len = 3;

/* Proceed if null check is fine *‍/ if (fifo_settings != NULL) { rslt = bmp3_get_regs(BMP3_REG_FIFO_CONFIG_1, fifo_sett, len, dev);

/* Parse the fifo settings *‍/ parse_fifo_settings(fifo_sett, fifo_settings); } else { rslt = BMP3_E_NULL_PTR; }

return rslt; }

/*!

This API gets the fifo data from the sensor. ‍/ int8_t bmp3_get_fifo_data(struct bmp3_fifo_data *fifo, const struct bmp3_fifo_settings *fifo_settings, struct bmp3_dev *dev) { int8_t rslt; uint16_t fifo_len;

if ((fifo != NULL) && (fifo_settings != NULL)) { reset_fifo_index(fifo);

/* Get the total number of bytes available in FIFO *‍/ rslt = bmp3_get_fifo_length(&fifo_len, dev);

if (rslt == BMP3_OK) { /* For sensor time frame , add additional overhead bytes *‍/ if (fifo_settings->time_en == TRUE) { fifo_len = fifo_len + BMP3_SENSORTIME_OVERHEAD_BYTES; }

/* Update the fifo length in the fifo structure *‍/ fifo->byte_count = fifo_len;

/* Read the fifo data *‍/ rslt = bmp3_get_regs(BMP3_REG_FIFO_DATA, fifo->buffer, fifo_len, dev); } } else { rslt = BMP3_E_NULL_PTR; }

return rslt; }

/*!

This API sets the fifo watermark length according to the frames count set by the user in the device structure. Refer below for usage. ‍/ int8_t bmp3_set_fifo_watermark(const struct bmp3_fifo_data *fifo, const struct bmp3_fifo_settings *fifo_settings, struct bmp3_dev *dev) { int8_t rslt; uint8_t reg_data[2]; uint8_t reg_addr[2] = { BMP3_REG_FIFO_WM, BMP3_REG_FIFO_WM + 1 }; uint16_t watermark_len;

if ((fifo != NULL) && (fifo_settings != NULL)) { rslt = convert_frames_to_bytes(&watermark_len, fifo, fifo_settings);

if (rslt == BMP3_OK) { reg_data[0] = BMP3_GET_LSB(watermark_len); reg_data[1] = BMP3_GET_MSB(watermark_len) & 0x01; rslt = bmp3_set_regs(reg_addr, reg_data, 2, dev); } } else { rslt = BMP3_E_NULL_PTR; }

return rslt; }

/*!

This API sets the fifo watermark length according to the frames count set by the user in the device structure. Refer below for usage. ‍/ int8_t bmp3_get_fifo_watermark(uint16_t *watermark_len, struct bmp3_dev *dev) { int8_t rslt; uint8_t reg_data[2]; uint8_t reg_addr = BMP3_REG_FIFO_WM;

if (watermark_len != NULL) { rslt = bmp3_get_regs(reg_addr, reg_data, 2, dev); if (rslt == BMP3_OK) { *watermark_len = (reg_data[0]) + (reg_data[1] << 8); } } else { rslt = BMP3_E_NULL_PTR; }

return rslt; }

/*!

This API extracts the temperature and/or pressure data from the FIFO data which is already read from the fifo. ‍/ int8_t bmp3_extract_fifo_data(struct bmp3_data *data, struct bmp3_fifo_data *fifo, struct bmp3_dev *dev) { int8_t rslt; uint8_t header; uint8_t parsed_frames = 0; uint8_t t_p_frame; struct bmp3_uncomp_data uncomp_data = { 0 };

rslt = null_ptr_check(dev);

if ((rslt == BMP3_OK) && (fifo != NULL) && (data != NULL)) { uint16_t byte_index = fifo->start_idx;

while (byte_index < fifo->byte_count) { get_header_info(&header, fifo->buffer, &byte_index); t_p_frame = parse_fifo_data_frame(header, fifo, &byte_index, &uncomp_data, &parsed_frames);

/* If the frame is pressure and/or temperature data ‍/ if (t_p_frame != FALSE) { / Compensate temperature and pressure data *‍/ rslt = compensate_data(t_p_frame, &uncomp_data, &data[parsed_frames - 1], &dev->calib_data); } }

/* Check if any frames are parsed in FIFO ‍/ if (parsed_frames != 0) { / Update the bytes parsed in the device structure ‍/ fifo->start_idx = byte_index; fifo->parsed_frames += parsed_frames; } else { / No frames are there to parse. It is time to read the FIFO, if more frames are needed *‍/ fifo->frame_not_available = TRUE; } } else { rslt = BMP3_E_NULL_PTR; }

return rslt; }

/*!

This API gets the command ready, data ready for pressure and temperature and interrupt (fifo watermark, fifo full, data ready) and error status from the sensor.

Definition at line 1204 of file bmp3.c.

{
    int8_t rslt;

    if (status != NULL)
    {
        rslt = get_sensor_status(status, dev);

        /* Proceed further if the earlier operation is fine */
        if (rslt == BMP3_OK)
        {
            rslt = get_int_status(status, dev);

            /* Proceed further if the earlier operation is fine */
            if (rslt == BMP3_OK)
            {
                /* Get the error status */
                rslt = get_err_status(status, dev);
            }
        }
    }
    else
    {
        rslt = BMP3_E_NULL_PTR;
    }

    return rslt;
}

References BMP3_E_NULL_PTR, BMP3_OK, get_err_status(), get_int_status(), get_sensor_status(), and NULL.

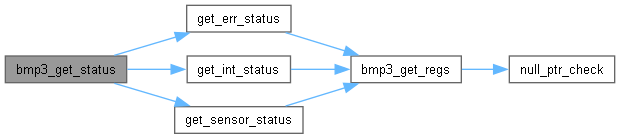

Here is the call graph for this function:

◆ bmp3_init()

int8_t bmp3_init ( struct bmp3_dev * dev )

This internal API converts the no. of frames required by the user to bytes so as to write in the watermark length register.

Parameters

[out]	watermark_len	: Pointer variable which contains the watermark length.
[in]	fifo	: Structure instance of bmp3_fifo_data
[in]	fifo_settings	: Structure instance of bmp3_fifo_settings

Returns: Result of API execution status.

Return values

0	-> Success
<0	-> Fail

This API is the entry point. It performs the selection of I2C/SPI read mechanism according to the selected interface and reads the chip-id and calibration data of the sensor.

Definition at line 738 of file bmp3.c.

{
    int8_t rslt;
    uint8_t chip_id = 0;

    /* Check for null pointer in the device structure */
    rslt = null_ptr_check(dev);

    /* Proceed if null check is fine */
    if (rslt == BMP3_OK)
    {
        /* Read mechanism according to selected interface */
        if (dev->intf != BMP3_I2C_INTF)
        {
            /* If SPI interface is selected, read extra byte */
            dev->dummy_byte = 1;
        }
        else
        {
            /* If I2C interface is selected, no need to read
             * extra byte */
            dev->dummy_byte = 0;
        }

        /* Read the chip-id of bmp3 sensor */
        rslt = bmp3_get_regs(BMP3_REG_CHIP_ID, &chip_id, 1, dev);

        /* Proceed if everything is fine until now */
        if (rslt == BMP3_OK)
        {
            /* Check for chip id validity */
            if ((chip_id == BMP3_CHIP_ID) || (chip_id == BMP390_CHIP_ID))
            {
                dev->chip_id = chip_id;

                /* Reset the sensor */
                rslt = bmp3_soft_reset(dev);
                if (rslt == BMP3_OK)
                {
                    /* Read the calibration data */
                    rslt = get_calib_data(dev);
                }
            }
            else
            {
                rslt = BMP3_E_DEV_NOT_FOUND;
            }
        }
    }

    return rslt;
}

References BMP390_CHIP_ID, BMP3_CHIP_ID, BMP3_E_DEV_NOT_FOUND, bmp3_get_regs(), BMP3_I2C_INTF, BMP3_OK, BMP3_REG_CHIP_ID, bmp3_soft_reset(), bmp3_dev::chip_id, bmp3_dev::dummy_byte, get_calib_data(), bmp3_dev::intf, and null_ptr_check().

Referenced by init_bmp390_B(), and init_bmp390_p().

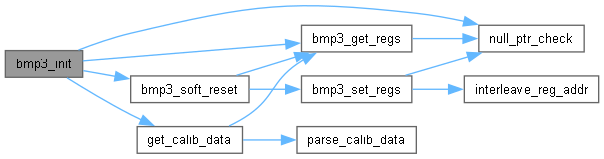

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bmp3_set_op_mode()

int8_t bmp3_set_op_mode	(	struct bmp3_settings *	settings,
		struct bmp3_dev *	dev
	)

This API sets the power mode of the sensor.

Definition at line 1350 of file bmp3.c.

{
    int8_t rslt;
    uint8_t last_set_mode;

    /* Check for null pointer in the device structure */
    rslt = null_ptr_check(dev);

    if ((rslt == BMP3_OK) && (settings != NULL))
    {
        uint8_t curr_mode = settings->op_mode;

        rslt = bmp3_get_op_mode(&last_set_mode, dev);

        /* If the sensor is not in sleep mode put the device to sleep
         * mode */
        if ((last_set_mode != BMP3_MODE_SLEEP) && (rslt == BMP3_OK))
        {
            /* Device should be put to sleep before transiting to
             * forced mode or normal mode */
            rslt = put_device_to_sleep(dev);

            /* Give some time for device to go into sleep mode */
            dev->delay_us(5000, dev->intf_ptr);
        }

        /* Set the power mode */
        if (rslt == BMP3_OK)
        {
            if (curr_mode == BMP3_MODE_NORMAL)
            {
                /* Set normal mode and validate
                 * necessary settings */
                rslt = set_normal_mode(settings, dev);
            }
            else if (curr_mode == BMP3_MODE_FORCED)
            {
                /* Set forced mode */
                rslt = write_power_mode(settings, dev);
            }
        }
    }
    else
    {
        rslt = BMP3_E_NULL_PTR;
    }

    return rslt;
}

References BMP3_E_NULL_PTR, bmp3_get_op_mode(), BMP3_MODE_FORCED, BMP3_MODE_NORMAL, BMP3_MODE_SLEEP, BMP3_OK, bmp3_dev::delay_us, bmp3_dev::intf_ptr, NULL, null_ptr_check(), bmp3_settings::op_mode, put_device_to_sleep(), set_normal_mode(), and write_power_mode().

Referenced by init_bmp390_B(), and init_bmp390_p().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bmp3_set_regs()

int8_t bmp3_set_regs	(	uint8_t *	reg_addr,
		const uint8_t *	reg_data,
		uint32_t	len,
		struct bmp3_dev *	dev
	)

This API writes the given data to the register address of the sensor.

Definition at line 844 of file bmp3.c.

{
    int8_t rslt;
    uint8_t temp_buff[len * 2];
    uint32_t temp_len;
    uint8_t reg_addr_cnt;

    /* Check for null pointer in the device structure */
    rslt = null_ptr_check(dev);

    /* Check for arguments validity */
    if ((rslt == BMP3_OK) && (reg_addr != NULL) && (reg_data != NULL))
    {
        if (len != 0)
        {
            temp_buff[0] = reg_data[0];

            /* If interface selected is SPI */
            if (dev->intf == BMP3_SPI_INTF)
            {
                for (reg_addr_cnt = 0; reg_addr_cnt < len; reg_addr_cnt++)
                {
                    reg_addr[reg_addr_cnt] = reg_addr[reg_addr_cnt] & 0x7F;
                }
            }

            /* Burst write mode */
            if (len > 1)
            {
                /* Interleave register address w.r.t data for
                 * burst write*/
                interleave_reg_addr(reg_addr, temp_buff, reg_data, len);
                temp_len = len * 2;
            }
            else
            {
                temp_len = len;
            }

            dev->intf_rslt = dev->write(reg_addr[0], temp_buff, temp_len, dev->intf_ptr);

            /* Check for communication error */
            if (dev->intf_rslt != BMP3_INTF_RET_SUCCESS)
            {
                rslt = BMP3_E_COMM_FAIL;
            }
        }
        else
        {
            rslt = BMP3_E_INVALID_LEN;
        }
    }
    else
    {
        rslt = BMP3_E_NULL_PTR;
    }

    return rslt;
}

References BMP3_E_COMM_FAIL, BMP3_E_INVALID_LEN, BMP3_E_NULL_PTR, BMP3_INTF_RET_SUCCESS, BMP3_OK, BMP3_SPI_INTF, interleave_reg_addr(), bmp3_dev::intf, bmp3_dev::intf_ptr, bmp3_dev::intf_rslt, NULL, null_ptr_check(), and bmp3_dev::write.

Referenced by bmp3_fifo_flush(), bmp3_soft_reset(), put_device_to_sleep(), set_advance_settings(), set_int_ctrl_settings(), set_odr_filter_settings(), set_pwr_ctrl_settings(), and write_power_mode().

Here is the call graph for this function:

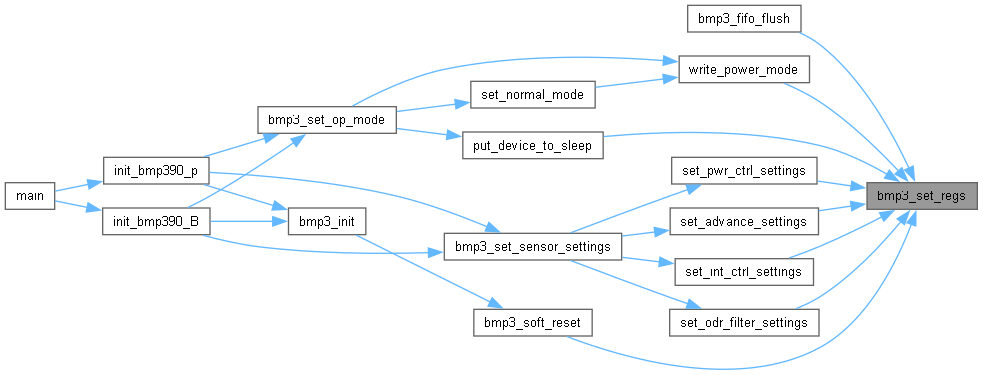

Here is the caller graph for this function:

◆ bmp3_set_sensor_settings()

int8_t bmp3_set_sensor_settings	(	uint32_t	desired_settings,
		struct bmp3_settings *	settings,
		struct bmp3_dev *	dev
	)

This API sets the power control(pressure enable and temperature enable), over sampling, ODR and filter settings in the sensor.

Definition at line 909 of file bmp3.c.

{
    int8_t rslt = BMP3_OK;

    if (settings != NULL)
    {

        if (are_settings_changed(BMP3_POWER_CNTL, desired_settings))
        {
            /* Set the power control settings */
            rslt = set_pwr_ctrl_settings(desired_settings, settings, dev);
        }

        if (are_settings_changed(BMP3_ODR_FILTER, desired_settings))
        {
            /* Set the over sampling, ODR and filter settings */
            rslt = set_odr_filter_settings(desired_settings, settings, dev);
        }

        if (are_settings_changed(BMP3_INT_CTRL, desired_settings))
        {
            /* Set the interrupt control settings */
            rslt = set_int_ctrl_settings(desired_settings, settings, dev);
        }

        if (are_settings_changed(BMP3_ADV_SETT, desired_settings))
        {
            /* Set the advance settings */
            rslt = set_advance_settings(desired_settings, settings, dev);
        }
    }
    else
    {
        rslt = BMP3_E_NULL_PTR;
    }

    return rslt;
}

References are_settings_changed(), BMP3_ADV_SETT, BMP3_E_NULL_PTR, BMP3_INT_CTRL, BMP3_ODR_FILTER, BMP3_OK, BMP3_POWER_CNTL, NULL, set_advance_settings(), set_int_ctrl_settings(), set_odr_filter_settings(), and set_pwr_ctrl_settings().

Referenced by init_bmp390_B(), and init_bmp390_p().

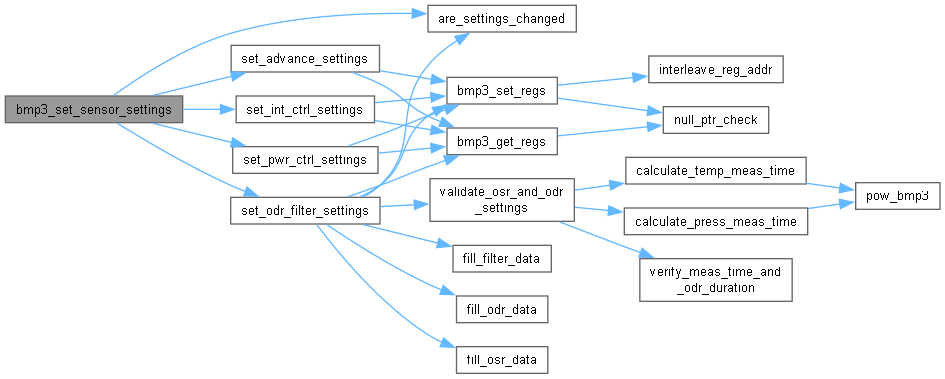

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bmp3_soft_reset()

int8_t bmp3_soft_reset ( struct bmp3_dev * dev )

This API performs the soft reset of the sensor.

Definition at line 1263 of file bmp3.c.

{
    int8_t rslt;
    uint8_t reg_addr = BMP3_REG_CMD;

    /* 0xB6 is the soft reset command */
    uint8_t soft_rst_cmd = BMP3_SOFT_RESET;
    uint8_t cmd_rdy_status;
    uint8_t cmd_err_status;

    /* Check for command ready status */
    rslt = bmp3_get_regs(BMP3_REG_SENS_STATUS, &cmd_rdy_status, 1, dev);

    /* Device is ready to accept new command */
    if ((cmd_rdy_status & BMP3_CMD_RDY) && (rslt == BMP3_OK))
    {
        /* Write the soft reset command in the sensor */
        rslt = bmp3_set_regs(&reg_addr, &soft_rst_cmd, 1, dev);

        /* Proceed if everything is fine until now */
        if (rslt == BMP3_OK)
        {
            /* Wait for 2 ms */
            dev->delay_us(2000, dev->intf_ptr);

            /* Read for command error status */
            rslt = bmp3_get_regs(BMP3_REG_ERR, &cmd_err_status, 1, dev);

            /* check for command error status */
            if ((cmd_err_status & BMP3_REG_CMD) || (rslt != BMP3_OK))
            {
                /* Command not written hence return
                 * error */
                rslt = BMP3_E_CMD_EXEC_FAILED;
            }
        }
    }

    return rslt;
}

References BMP3_CMD_RDY, BMP3_E_CMD_EXEC_FAILED, bmp3_get_regs(), BMP3_OK, BMP3_REG_CMD, BMP3_REG_ERR, BMP3_REG_SENS_STATUS, bmp3_set_regs(), BMP3_SOFT_RESET, bmp3_dev::delay_us, and bmp3_dev::intf_ptr.

Referenced by bmp3_init().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calculate_press_meas_time()

static uint32_t calculate_press_meas_time ( const struct bmp3_settings * settings )

static

This internal API calculates the pressure measurement duration of the sensor.

Parameters

[out] settings : Structure instance of bmp3_settings.

Returns: Pressure measurement time

Return values

Pressure measurement time in microseconds

Definition at line 2153 of file bmp3.c.

{
    uint32_t press_meas_t;
    struct bmp3_odr_filter_settings odr_filter = settings->odr_filter;

#ifdef BMP3_FLOAT_COMPENSATION
    double base = 2.0;
    float partial_out;
#else
    uint8_t base = 2;
    uint32_t partial_out;
#endif /* BMP3_FLOAT_COMPENSATION */
    partial_out = pow_bmp3(base, odr_filter.press_os);
    press_meas_t = (uint32_t)(BMP3_SETTLE_TIME_PRESS + partial_out * BMP3_ADC_CONV_TIME);

    /* Output in microseconds */
    return press_meas_t;
}

References BMP3_ADC_CONV_TIME, BMP3_SETTLE_TIME_PRESS, bmp3_settings::odr_filter, pow_bmp3(), and bmp3_odr_filter_settings::press_os.

Referenced by validate_osr_and_odr_settings().

Here is the call graph for this function:

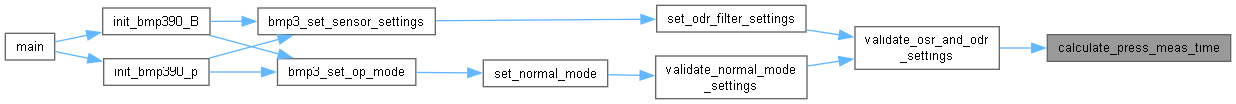

Here is the caller graph for this function:

◆ calculate_temp_meas_time()

static uint32_t calculate_temp_meas_time ( const struct bmp3_settings * settings )

static

This internal API calculates the temperature measurement duration of the sensor.

Parameters

[out] settings : Structure instance of bmp3_settings.

Returns: Temperature measurement time

Return values

Temperature measurement time in microseconds

Definition at line 2176 of file bmp3.c.

{
    uint32_t temp_meas_t;
    struct bmp3_odr_filter_settings odr_filter = settings->odr_filter;

#ifdef BMP3_FLOAT_COMPENSATION
    double base = 2.0;
    float partial_out;
#else
    uint8_t base = 2;
    uint32_t partial_out;
#endif /* BMP3_FLOAT_COMPENSATION */
    partial_out = pow_bmp3(base, odr_filter.temp_os);
    temp_meas_t = (uint32_t)(BMP3_SETTLE_TIME_TEMP + partial_out * BMP3_ADC_CONV_TIME);

    /* Output in uint32_t */
    return temp_meas_t;
}

References BMP3_ADC_CONV_TIME, BMP3_SETTLE_TIME_TEMP, bmp3_settings::odr_filter, pow_bmp3(), and bmp3_odr_filter_settings::temp_os.

Referenced by validate_osr_and_odr_settings().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ compensate_data()

static int8_t compensate_data	(	uint8_t	sensor_comp,
		const struct bmp3_uncomp_data *	uncomp_data,
		struct bmp3_data *	comp_data,
		struct bmp3_calib_data *	calib_data
	)

static

This internal API is used to compensate the pressure or temperature or both the data according to the component selected by the user.

Parameters

[in]	sensor_comp	: Used to select pressure or temperature.
[in]	uncomp_data	: Contains the uncompensated pressure and temperature data.
[out]	comp_data	: Contains the compensated pressure and temperature data.
[in]	calib_data	: Pointer to the calibration data structure.

Returns: Result of API execution status

Return values

0	-> Success
>0	-> Warning
<0	-> Fail

Definition at line 2297 of file bmp3.c.

{
    int8_t rslt = BMP3_OK;

    if ((uncomp_data != NULL) && (comp_data != NULL) && (calib_data != NULL))
    {
        /* If pressure and temperature component is selected */
        if (sensor_comp == BMP3_PRESS_TEMP)
        {
            /*
             * NOTE : Temperature compensation must be done first.
             * Followed by pressure compensation
             * Compensated temperature updated in calib structure,
             * is needed for pressure calculation
             */

            /* Compensate pressure and temperature data */
            rslt = compensate_temperature(&comp_data->temperature, uncomp_data, calib_data);

            if (rslt == BMP3_OK)
            {
                rslt = compensate_pressure(&comp_data->pressure, uncomp_data, calib_data);
            }
        }
        else if (sensor_comp == BMP3_PRESS)
        {
            /*
             * NOTE : Temperature compensation must be done first.
             * Followed by pressure compensation
             * Compensated temperature updated in calib structure,
             * is needed for pressure calculation.
             * As only pressure is enabled in 'sensor_comp', after calculating
             * compensated temperature, assign it to zero.
             */
            (void)compensate_temperature(&comp_data->temperature, uncomp_data, calib_data);
            comp_data->temperature = 0;

            /* Compensate the pressure data */
            rslt = compensate_pressure(&comp_data->pressure, uncomp_data, calib_data);
        }
        else if (sensor_comp == BMP3_TEMP)
        {
            /* Compensate the temperature data */
            rslt = compensate_temperature(&comp_data->temperature, uncomp_data, calib_data);

            /*
             * As only temperature is enabled in 'sensor_comp'
             * make compensated pressure as zero
             */
            comp_data->pressure = 0;
        }
        else
        {
            comp_data->pressure = 0;
            comp_data->temperature = 0;
        }
    }
    else
    {
        rslt = BMP3_E_NULL_PTR;
    }

    return rslt;
}

References BMP3_E_NULL_PTR, BMP3_OK, BMP3_PRESS, BMP3_PRESS_TEMP, BMP3_TEMP, compensate_pressure(), compensate_temperature(), NULL, bmp3_data::pressure, and bmp3_data::temperature.

Referenced by bmp3_get_sensor_data().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ compensate_pressure()

static int8_t compensate_pressure	(	uint64_t *	pressure,
		const struct bmp3_uncomp_data *	uncomp_data,
		const struct bmp3_calib_data *	calib_data
	)

static

This internal API is used to compensate the pressure data and return the compensated pressure data in integer data type.

This internal API is used to compensate the raw pressure data and return the compensated pressure data in integer data type. for eg return if pressure is 9528709 which is 9528709/100 = 95287.09 Pascal.

Parameters

[out]	comp_pressure	: Compensated pressure data in integer.
[in]	uncomp_data	: Contains the uncompensated pressure data.
[in]	calib_data	: Pointer to the calibration data structure.

Returns: Result of API execution status

Return values

0	-> Success
>0	-> Warning
<0	-> Fail

Definition at line 2618 of file bmp3.c.

{
    int8_t rslt = BMP3_OK;
    const struct bmp3_reg_calib_data *reg_calib_data = &calib_data->reg_calib_data;
    int64_t partial_data1;
    int64_t partial_data2;
    int64_t partial_data3;
    int64_t partial_data4;
    int64_t partial_data5;
    int64_t partial_data6;
    int64_t offset;
    int64_t sensitivity;
    uint64_t comp_press;

    partial_data1 = (int64_t)(reg_calib_data->t_lin * reg_calib_data->t_lin);
    partial_data2 = (int64_t)(partial_data1 / 64);
    partial_data3 = (int64_t)((partial_data2 * reg_calib_data->t_lin) / 256);
    partial_data4 = (int64_t)((reg_calib_data->par_p8 * partial_data3) / 32);
    partial_data5 = (int64_t)((reg_calib_data->par_p7 * partial_data1) * 16);
    partial_data6 = (int64_t)((reg_calib_data->par_p6 * reg_calib_data->t_lin) * 4194304);
    offset = (int64_t)((reg_calib_data->par_p5 * 140737488355328) + partial_data4 + partial_data5 + partial_data6);
    partial_data2 = (int64_t)((reg_calib_data->par_p4 * partial_data3) / 32);
    partial_data4 = (int64_t)((reg_calib_data->par_p3 * partial_data1) * 4);
    partial_data5 = (int64_t)((reg_calib_data->par_p2 - (int32_t)16384) * reg_calib_data->t_lin * 2097152);
    sensitivity =
        (int64_t)(((reg_calib_data->par_p1 - (int32_t)16384) * 70368744177664) + partial_data2 + partial_data4 +
                  partial_data5);
    partial_data1 = (int64_t)((sensitivity / 16777216) * uncomp_data->pressure);
    partial_data2 = (int64_t)(reg_calib_data->par_p10 * reg_calib_data->t_lin);
    partial_data3 = (int64_t)(partial_data2 + ((int32_t)65536 * reg_calib_data->par_p9));
    partial_data4 = (int64_t)((partial_data3 * uncomp_data->pressure) / (int32_t)8192);

    /* dividing by 10 followed by multiplying by 10
     * To avoid overflow caused by (uncomp_data->pressure * partial_data4)
     */
    partial_data5 = (int64_t)((uncomp_data->pressure * (partial_data4 / 10)) / (int32_t)512);
    partial_data5 = (int64_t)(partial_data5 * 10);
    partial_data6 = (int64_t)(uncomp_data->pressure * uncomp_data->pressure);
    partial_data2 = (int64_t)((reg_calib_data->par_p11 * partial_data6) / (int32_t)65536);
    partial_data3 = (int64_t)((int64_t)(partial_data2 * uncomp_data->pressure) / 128);
    partial_data4 = (int64_t)((offset / 4) + partial_data1 + partial_data5 + partial_data3);
    comp_press = (((uint64_t)partial_data4 * 25) / (uint64_t)1099511627776);

    if (comp_press < BMP3_MIN_PRES_INT)
    {
        comp_press = BMP3_MIN_PRES_INT;
        rslt = BMP3_W_MIN_PRES;
    }

    if (comp_press > BMP3_MAX_PRES_INT)
    {
        comp_press = BMP3_MAX_PRES_INT;
        rslt = BMP3_W_MAX_PRES;
    }

    (*pressure) = comp_press;

    return rslt;
}

Referenced by compensate_data().

Here is the caller graph for this function:

◆ compensate_temperature()

static int8_t compensate_temperature	(	int64_t *	temperature,
		const struct bmp3_uncomp_data *	uncomp_data,
		struct bmp3_calib_data *	calib_data
	)

static

This internal API is used to compensate the raw temperature data and return the compensated temperature data in integer data type.

This internal API is used to compensate the raw temperature data and return the compensated temperature data in integer data type. Returns temperature in integer. Actual temperature is obtained by dividing by 100 For eg : If returned temperature is 2426 then it is 2426/100 = 24 deg Celsius.

Parameters

[out]	temperature	: Compensated temperature data in integer.
[in]	uncomp_data	: Contains the uncompensated temperature data.
[in]	calib_data	: Pointer to calibration data structure.

Returns: Result of API execution status

Return values

0	-> Success
>0	-> Warning
<0	-> Fail

Definition at line 2572 of file bmp3.c.

{
    int8_t rslt = BMP3_OK;
    int64_t partial_data1;
    int64_t partial_data2;
    int64_t partial_data3;
    int64_t partial_data4;
    int64_t partial_data5;
    int64_t partial_data6;
    int64_t comp_temp;

    partial_data1 = (int64_t)(uncomp_data->temperature - ((int64_t)256 * calib_data->reg_calib_data.par_t1));
    partial_data2 = (int64_t)(calib_data->reg_calib_data.par_t2 * partial_data1);
    partial_data3 = (int64_t)(partial_data1 * partial_data1);
    partial_data4 = (int64_t)partial_data3 * calib_data->reg_calib_data.par_t3;
    partial_data5 = (int64_t)((int64_t)(partial_data2 * 262144) + partial_data4);
    partial_data6 = (int64_t)(partial_data5 / 4294967296);

    /* Store t_lin in dev. structure for pressure calculation */
    calib_data->reg_calib_data.t_lin = (int64_t)partial_data6;
    comp_temp = (int64_t)((partial_data6 * 25) / 16384);

    if (comp_temp < BMP3_MIN_TEMP_INT)
    {
        comp_temp = BMP3_MIN_TEMP_INT;
        rslt = BMP3_W_MIN_TEMP;
    }

    if (comp_temp > BMP3_MAX_TEMP_INT)
    {
        comp_temp = BMP3_MAX_TEMP_INT;
        rslt = BMP3_W_MAX_TEMP;
    }

    (*temperature) = comp_temp;

    return rslt;
}

References BMP3_MAX_TEMP_INT, BMP3_MIN_TEMP_INT, BMP3_OK, BMP3_W_MAX_TEMP, BMP3_W_MIN_TEMP, bmp3_reg_calib_data::par_t1, bmp3_reg_calib_data::par_t2, bmp3_reg_calib_data::par_t3, bmp3_calib_data::reg_calib_data, bmp3_reg_calib_data::t_lin, and bmp3_uncomp_data::temperature.

Referenced by compensate_data().

Here is the caller graph for this function:

◆ fill_filter_data()

static void fill_filter_data	(	uint8_t *	addr,
		uint8_t *	reg_data,
		uint8_t *	len,
		const struct bmp3_settings *	settings
	)

static

This internal API fills the register address and register data of the the filter settings for burst write operation.

This internal API fills the register address and register data of the filter settings for burst write operation.

Parameters

[out]	addr	: To store the address to fill in register buffer.
[out]	reg_data	: To store the register data to set the filter.
[out]	len	: To store the len for burst write.
[in]	settings	: Structure instance of bmp3_settings

Definition at line 2257 of file bmp3.c.

{
    struct bmp3_odr_filter_settings osr_settings = settings->odr_filter;

    /* Set the iir settings in the register variable */
    reg_data[*len] = BMP3_SET_BITS(reg_data[3], BMP3_IIR_FILTER, osr_settings.iir_filter);

    /* 0x1F is the register address of iir filter register */
    addr[*len] = BMP3_REG_CONFIG;
    (*len)++;
}

References BMP3_REG_CONFIG, BMP3_SET_BITS, bmp3_odr_filter_settings::iir_filter, and bmp3_settings::odr_filter.

Referenced by set_odr_filter_settings().

Here is the caller graph for this function:

◆ fill_odr_data()

static void fill_odr_data	(	uint8_t *	addr,
		uint8_t *	reg_data,
		uint8_t *	len,
		struct bmp3_settings *	settings
	)

static

This internal API fills the register address and register data of the the ODR settings for burst write operation.

This internal API fills the register address and register data of the ODR settings for burst write operation.

Parameters

[out]	addr	: To store the address to fill in register buffer.
[out]	reg_data	: To store the register data to set the odr data.
[out]	len	: To store the len for burst write.
[in]	settings	: Structure instance of bmp3_settings

Definition at line 2235 of file bmp3.c.

{
    struct bmp3_odr_filter_settings *osr_settings = &settings->odr_filter;

    /* Limit the ODR to 0.001525879 Hz*/
    if (osr_settings->odr > BMP3_ODR_0_001_HZ)
    {
        osr_settings->odr = BMP3_ODR_0_001_HZ;
    }

    /* Set the ODR settings in the register variable */
    reg_data[*len] = BMP3_SET_BITS_POS_0(reg_data[1], BMP3_ODR, osr_settings->odr);

    /* 0x1D is the register address of output data rate register */
    addr[*len] = BMP3_REG_ODR;
    (*len)++;
}

References BMP3_ODR_0_001_HZ, BMP3_REG_ODR, BMP3_SET_BITS_POS_0, bmp3_odr_filter_settings::odr, and bmp3_settings::odr_filter.

Referenced by set_odr_filter_settings().

Here is the caller graph for this function:

◆ fill_osr_data()

static void fill_osr_data	(	uint32_t	desired_settings,
		uint8_t *	addr,
		uint8_t *	reg_data,
		uint8_t *	len,
		const struct bmp3_settings *	settings
	)

static

This internal API fills the register address and register data of the the over sampling settings for burst write operation.

This internal API fills the register address and register data of the over sampling settings for burst write operation.

Parameters

[in]	desired_settings	: Variable which specifies the settings which are to be set in the sensor.
[out]	addr	: To store the address to fill in register buffer.
[out]	reg_data	: To store the osr register data.
[out]	len	: To store the len for burst write.
[in]	settings	: Structure instance of bmp3_settings

Definition at line 2199 of file bmp3.c.

{
    struct bmp3_odr_filter_settings osr_settings = settings->odr_filter;

    if (desired_settings & (BMP3_SEL_PRESS_OS | BMP3_SEL_TEMP_OS))
    {
        /* Pressure over sampling settings check */
        if (desired_settings & BMP3_SEL_PRESS_OS)
        {
            /* Set the pressure over sampling settings in the
             * register variable */
            reg_data[*len] = BMP3_SET_BITS_POS_0(reg_data[0], BMP3_PRESS_OS, osr_settings.press_os);
        }

        /* Temperature over sampling settings check */
        if (desired_settings & BMP3_SEL_TEMP_OS)
        {
            /* Set the temperature over sampling settings in the
             * register variable */
            reg_data[*len] = BMP3_SET_BITS(reg_data[0], BMP3_TEMP_OS, osr_settings.temp_os);
        }

        /* 0x1C is the register address of over sampling register */
        addr[*len] = BMP3_REG_OSR;
        (*len)++;
    }
}

References BMP3_REG_OSR, BMP3_SEL_PRESS_OS, BMP3_SEL_TEMP_OS, BMP3_SET_BITS, BMP3_SET_BITS_POS_0, bmp3_settings::odr_filter, bmp3_odr_filter_settings::press_os, and bmp3_odr_filter_settings::temp_os.

Referenced by set_odr_filter_settings().

Here is the caller graph for this function:

◆ get_calib_data()

static int8_t get_calib_data ( struct bmp3_dev * dev )

static

This internal API reads the calibration data from the sensor, parse it then compensates it and store in the device structure.

Parameters

[in] dev : Structure instance of bmp3_dev.

Returns: Result of API execution status

Return values

0	-> Success
>0	-> Warning
<0	-> Fail

Definition at line 1786 of file bmp3.c.

{
    int8_t rslt;
    uint8_t reg_addr = BMP3_REG_CALIB_DATA;

    /* Array to store calibration data */
    uint8_t calib_data[BMP3_LEN_CALIB_DATA] = { 0 };

    /* Read the calibration data from the sensor */
    rslt = bmp3_get_regs(reg_addr, calib_data, BMP3_LEN_CALIB_DATA, dev);

    /* Parse calibration data and store it in device structure */
    parse_calib_data(calib_data, dev);

    return rslt;
}

References bmp3_get_regs(), BMP3_LEN_CALIB_DATA, BMP3_REG_CALIB_DATA, and parse_calib_data().

Referenced by bmp3_init().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_err_status()

static int8_t get_err_status	(	struct bmp3_status *	status,
		struct bmp3_dev *	dev
	)

static

This API gets the fatal, command and configuration error from the sensor.

Parameters

[out]		Structure instance of bmp3_status
[in]	dev	: Structure instance of bmp3_dev

Returns: Result of API execution status.

Return values

0	-> Success
<0	-> Fail

Definition at line 2945 of file bmp3.c.

{
    int8_t rslt;
    uint8_t reg_data;

    rslt = bmp3_get_regs(BMP3_REG_ERR, &reg_data, 1, dev);

    if (rslt == BMP3_OK)
    {
        status->err.fatal = BMP3_GET_BITS_POS_0(reg_data, BMP3_ERR_FATAL);
        status->err.cmd = BMP3_GET_BITS(reg_data, BMP3_ERR_CMD);
        status->err.conf = BMP3_GET_BITS(reg_data, BMP3_ERR_CONF);
    }

    return rslt;
}

References BMP3_ERR_CMD, BMP3_ERR_CONF, BMP3_ERR_FATAL, BMP3_GET_BITS, BMP3_GET_BITS_POS_0, bmp3_get_regs(), BMP3_OK, BMP3_REG_ERR, bmp3_err_status::cmd, bmp3_err_status::conf, bmp3_status::err, and bmp3_err_status::fatal.

Referenced by bmp3_get_status().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_int_status()

static int8_t get_int_status	(	struct bmp3_status *	status,
		struct bmp3_dev *	dev
	)

static

This API gets the interrupt (fifo watermark, fifo full, data ready) status from the sensor.

Parameters

[out]		Structure instance of bmp3_status
[in]	dev	: Structure instance of bmp3_dev

Returns: Result of API execution status.

Return values

0	-> Success
<0	-> Fail

Definition at line 2924 of file bmp3.c.

{
    int8_t rslt;
    uint8_t reg_data;

    rslt = bmp3_get_regs(BMP3_REG_INT_STATUS, &reg_data, 1, dev);

    if (rslt == BMP3_OK)
    {
        status->intr.fifo_wm = BMP3_GET_BITS_POS_0(reg_data, BMP3_INT_STATUS_FWTM);
        status->intr.fifo_full = BMP3_GET_BITS(reg_data, BMP3_INT_STATUS_FFULL);
        status->intr.drdy = BMP3_GET_BITS(reg_data, BMP3_INT_STATUS_DRDY);
    }

    return rslt;
}

References BMP3_GET_BITS, BMP3_GET_BITS_POS_0, bmp3_get_regs(), BMP3_OK, BMP3_REG_INT_STATUS, bmp3_int_status::drdy, bmp3_int_status::fifo_full, bmp3_int_status::fifo_wm, and bmp3_status::intr.

Referenced by bmp3_get_status().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_odr_filter_settings()

static int8_t get_odr_filter_settings	(	struct bmp3_settings *	settings,
		struct bmp3_dev *	dev
	)

static

This internal API gets the over sampling, ODR and filter settings from the sensor.

This internal API gets the over sampling, ODR and filter settings of the sensor.

Parameters

[in]	settings	: Structure instance of bmp3_settings.
[in]	dev	: Structure instance of bmp3_dev.

Returns: Result of API execution status

Return values

0	-> Success
>0	-> Warning
<0	-> Fail

Definition at line 2072 of file bmp3.c.

{
    int8_t rslt;
    uint8_t reg_data[4];

    /* Read data beginning from 0x1C register */
    rslt = bmp3_get_regs(BMP3_REG_OSR, reg_data, 4, dev);

    /* Parse the read data and store it in dev structure */
    parse_odr_filter_settings(reg_data, &settings->odr_filter);

    return rslt;
}

References bmp3_get_regs(), BMP3_REG_OSR, bmp3_settings::odr_filter, and parse_odr_filter_settings().

Referenced by validate_normal_mode_settings().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_sensor_status()

static int8_t get_sensor_status	(	struct bmp3_status *	status,
		struct bmp3_dev *	dev
	)

static

This internal API fills the fifo_config_1(fifo_mode, fifo_stop_on_full, fifo_time_en, fifo_press_en, fifo_temp_en) settings in the reg_data variable so as to burst write in the sensor.

This internal API is used to parse the fifo_config_1(fifo_mode, fifo_stop_on_full, fifo_time_en, fifo_press_en, fifo_temp_en), fifo_config_2(fifo_subsampling, data_select) and int_ctrl(fwtm_en, ffull_en) settings and store it in device structure.

Parameters

[in]	desired_settings	: Variable which specifies the settings which are to be set in the sensor.
[in]	fifo_settings	: Structure instance of bmp3_fifo_settings
[in]	dev	: Structure instance of bmp3_dev

 @brief This internal API fills the fifo_config_2(fifo_sub_sampling,
 data_select) settings in the reg_data variable so as to burst write
 in the sensor.

 @param[in] desired_settings : Variable which specifies the settings which
                               are to be set in the sensor.
 @param[in] fifo_settings    : Structure instance of bmp3_fifo_settings
 @param[in] dev              : Structure instance of bmp3_dev
&zwj;/

static int8_t fill_fifo_config_2(uint16_t desired_settings, const struct bmp3_fifo_settings *fifo_settings, struct bmp3_dev *dev);

/*!

This internal API fills the fifo interrupt control(fwtm_en, ffull_en) settings in the reg_data variable so as to burst write in the sensor.

Parameters

[in]	desired_settings	: Variable which specifies the settings which are to be set in the sensor.
[in]	fifo_settings	: Structure instance of bmp3_fifo_settings
[in]	dev	: Structure instance of bmp3_dev ‍/ static int8_t fill_fifo_int_ctrl(uint16_t desired_settings, const struct bmp3_fifo_settings fifo_settings, struct bmp3_dev dev);

/*!

This internal API is used to parse the fifo_config_1(fifo_mode, fifo_stop_on_full, fifo_time_en, fifo_press_en, fifo_temp_en), fifo_config_2(fifo_subsampling, data_select) and int_ctrl(fwtm_en, ffull_en) settings and store it in device structure

Parameters

[in]	reg_data	: Pointer variable which stores the fifo settings data read from the sensor.
[out]	fifo_settings	: Structure instance of bmp3_fifo_settings which contains the fifo settings after parsing. ‍/ static void parse_fifo_settings(const uint8_t reg_data, struct bmp3_fifo_settings fifo_settings);

/*!

This internal API parse the FIFO data frame from the fifo buffer and fills the byte count, uncompensated pressure and/or temperature data and no of parsed frames.

Parameters

[in]	header	: Pointer variable which stores the fifo settings data read from the sensor.
[in,out]	fifo	: Structure instance of bmp3_fifo
[out]	byte_index	: Byte count which is incremented according to the of data.
[out]	uncomp_data	: Uncompensated pressure and/or temperature data which is stored after parsing fifo buffer data.
[out]	parsed_frames	: Total number of parsed frames.

Returns: Result of API execution status.

Return values

0	-> Success
<0	-> Fail ‍/ static uint8_t parse_fifo_data_frame(uint8_t header, struct bmp3_fifo_data fifo, uint16_t byte_index, struct bmp3_uncomp_data uncomp_data, uint8_t parsed_frames);

/*!

This internal API unpacks the FIFO data frame from the fifo buffer and fills the byte count, uncompensated pressure and/or temperature data.

Parameters

[out]	byte_index	: Byte count of fifo buffer.
[in]	fifo_buffer	: FIFO buffer from where the temperature and pressure frames are unpacked.
[out]	uncomp_data	: Uncompensated temperature and pressure data after unpacking from fifo buffer. ‍/ static void unpack_temp_press_frame(uint16_t byte_index, const uint8_t fifo_buffer, struct bmp3_uncomp_data *uncomp_data);

/*!

This internal API unpacks the FIFO data frame from the fifo buffer and fills the byte count and uncompensated pressure data.

Parameters

[out]	byte_index	: Byte count of fifo buffer.
[in]	fifo_buffer	: FIFO buffer from where the pressure frames are unpacked.
[out]	uncomp_data	: Uncompensated pressure data after unpacking from fifo buffer. ‍/ static void unpack_press_frame(uint16_t byte_index, const uint8_t fifo_buffer, struct bmp3_uncomp_data *uncomp_data);

/*!

This internal API unpacks the FIFO data frame from the fifo buffer and fills the byte count and uncompensated temperature data.

Parameters

[out]	byte_index	: Byte count of fifo buffer.
[in]	fifo_buffer	: FIFO buffer from where the temperature frames are unpacked.
[out]	uncomp_data	: Uncompensated temperature data after unpacking from fifo buffer. ‍/ static void unpack_temp_frame(uint16_t byte_index, const uint8_t fifo_buffer, struct bmp3_uncomp_data *uncomp_data);

/*!

This internal API unpacks the time frame from the fifo data buffer and fills the byte count and update the sensor time variable.

Parameters

[out]	byte_index	: Byte count of fifo buffer.
[in]	fifo_buffer	: FIFO buffer from where the sensor time frames are unpacked.
[out]	sensor_time	: Variable used to store the sensor time. ‍/ static void unpack_time_frame(uint16_t byte_index, const uint8_t fifo_buffer, uint32_t *sensor_time);

/*!

This internal API parses the FIFO buffer and gets the header info.

Parameters

[out]	header	: Variable used to store the fifo header data.
[in]	fifo_buffer	: FIFO buffer from where the header data is retrieved.
[out]	byte_index	: Byte count of fifo buffer. ‍/ static void get_header_info(uint8_t header, const uint8_t fifo_buffer, uint16_t *byte_index);

/*!

This internal API parses the FIFO data frame from the fifo buffer and fills uncompensated temperature and/or pressure data.

Parameters

[in]	sensor_comp	: Variable used to select either temperature or pressure or both while parsing the fifo frames.
[in]	fifo_buffer	: FIFO buffer where the temperature or pressure or both the data to be parsed.
[out]	uncomp_data	: Uncompensated temperature or pressure or both the data after unpacking from fifo buffer. ‍/ static void parse_fifo_sensor_data(uint8_t sensor_comp, const uint8_t fifo_buffer, struct bmp3_uncomp_data uncomp_data);

/*!

This internal API resets the FIFO buffer, start index, parsed frame count, configuration change, configuration error and frame_not_available variables.

Parameters

[out] fifo : FIFO structure instance where the fifo related variables are reset. ‍/ static void reset_fifo_index(struct bmp3_fifo_data *fifo);

/*!

This API gets the command ready, data ready for pressure and temperature, power on reset status from the sensor.

Parameters

[out]		Structure instance of bmp3_status
[in]	dev	: Structure instance of bmp3_dev

Returns: Result of API execution status.

Return values

0	-> Success
<0	-> Fail

 @brief This internal API fills the fifo_config_1(fifo_mode,
 fifo_stop_on_full, fifo_time_en, fifo_press_en, fifo_temp_en) settings in the
 reg_data variable so as to burst write in the sensor.
&zwj;/

static int8_t fill_fifo_config_1(uint16_t desired_settings, const struct bmp3_fifo_settings *fifo_settings, struct bmp3_dev *dev) { int8_t rslt; uint8_t reg_addr = BMP3_REG_FIFO_CONFIG_1; uint8_t reg_data;

rslt = bmp3_get_regs(reg_addr, &reg_data, 1, dev);

if (rslt == BMP3_OK) { if (desired_settings & BMP3_SEL_FIFO_MODE) { /* Fill the FIFO mode register data *‍/ reg_data = BMP3_SET_BITS_POS_0(reg_data, BMP3_FIFO_MODE, fifo_settings->mode); }

if (desired_settings & BMP3_SEL_FIFO_STOP_ON_FULL_EN) { /* Fill the stop on full data *‍/ reg_data = BMP3_SET_BITS(reg_data, BMP3_FIFO_STOP_ON_FULL, fifo_settings->stop_on_full_en); }

if (desired_settings & BMP3_SEL_FIFO_TIME_EN) { /* Fill the time enable data *‍/ reg_data = BMP3_SET_BITS(reg_data, BMP3_FIFO_TIME_EN, fifo_settings->time_en); }

if (desired_settings & (BMP3_SEL_FIFO_PRESS_EN | BMP3_SEL_FIFO_TEMP_EN)) { /* Fill the pressure enable data *‍/ reg_data = BMP3_SET_BITS(reg_data, BMP3_FIFO_PRESS_EN, fifo_settings->press_en);

/* Fill the temperature enable data *‍/ reg_data = BMP3_SET_BITS(reg_data, BMP3_FIFO_TEMP_EN, fifo_settings->temp_en); }

/* Write the power control settings in the register *‍/ rslt = bmp3_set_regs(&reg_addr, &reg_data, 1, dev); }

return rslt; }

/*!

This internal API fills the fifo_config_2(fifo_subsampling, data_select) settings in the reg_data variable so as to burst write in the sensor. ‍/ static int8_t fill_fifo_config_2(uint16_t desired_settings, const struct bmp3_fifo_settings *fifo_settings, struct bmp3_dev *dev) { int8_t rslt; uint8_t reg_addr = BMP3_REG_FIFO_CONFIG_2; uint8_t reg_data;

rslt = bmp3_get_regs(reg_addr, &reg_data, 1, dev);

if (rslt == BMP3_OK) { if (desired_settings & BMP3_SEL_FIFO_DOWN_SAMPLING) { /* To do check Normal mode ‍/ / Fill the down-sampling data *‍/ reg_data = BMP3_SET_BITS_POS_0(reg_data, BMP3_FIFO_DOWN_SAMPLING, fifo_settings->down_sampling); }

if (desired_settings & BMP3_SEL_FIFO_FILTER_EN) { /* Fill the filter enable data *‍/ reg_data = BMP3_SET_BITS(reg_data, BMP3_FIFO_FILTER_EN, fifo_settings->filter_en); }

/* Write the power control settings in the register *‍/ rslt = bmp3_set_regs(&reg_addr, &reg_data, 1, dev); }

return rslt; }

/*!

This internal API fills the fifo interrupt control(fwtm_en, ffull_en) settings in the reg_data variable so as to burst write in the sensor. ‍/ static int8_t fill_fifo_int_ctrl(uint16_t desired_settings, const struct bmp3_fifo_settings *fifo_settings, struct bmp3_dev *dev) { int8_t rslt; uint8_t reg_addr = BMP3_REG_INT_CTRL; uint8_t reg_data;

rslt = bmp3_get_regs(reg_addr, &reg_data, 1, dev);

if (rslt == BMP3_OK) { if (desired_settings & BMP3_SEL_FIFO_FWTM_EN) { /* Fill the FIFO watermark interrupt enable data *‍/ reg_data = BMP3_SET_BITS(reg_data, BMP3_FIFO_FWTM_EN, fifo_settings->fwtm_en); }

if (desired_settings & BMP3_SEL_FIFO_FULL_EN) { /* Fill the FIFO full interrupt enable data *‍/ reg_data = BMP3_SET_BITS(reg_data, BMP3_FIFO_FULL_EN, fifo_settings->ffull_en); }

/* Write the power control settings in the register *‍/ rslt = bmp3_set_regs(&reg_addr, &reg_data, 1, dev); }

return rslt; }

/*!

This API gets the command ready, data ready for pressure and temperature, power on reset status from the sensor.

Definition at line 2898 of file bmp3.c.

{
    int8_t rslt;
    uint8_t reg_addr;
    uint8_t reg_data;

    reg_addr = BMP3_REG_SENS_STATUS;
    rslt = bmp3_get_regs(reg_addr, &reg_data, 1, dev);

    if (rslt == BMP3_OK)
    {
        status->sensor.cmd_rdy = BMP3_GET_BITS(reg_data, BMP3_STATUS_CMD_RDY);
        status->sensor.drdy_press = BMP3_GET_BITS(reg_data, BMP3_STATUS_DRDY_PRESS);
        status->sensor.drdy_temp = BMP3_GET_BITS(reg_data, BMP3_STATUS_DRDY_TEMP);
        reg_addr = BMP3_REG_EVENT;
        rslt = bmp3_get_regs(reg_addr, &reg_data, 1, dev);
        status->pwr_on_rst = reg_data & 0x01;
    }

    return rslt;
}

References BMP3_GET_BITS, bmp3_get_regs(), BMP3_OK, BMP3_REG_EVENT, BMP3_REG_SENS_STATUS, bmp3_sens_status::cmd_rdy, bmp3_sens_status::drdy_press, bmp3_sens_status::drdy_temp, bmp3_status::pwr_on_rst, and bmp3_status::sensor.

Referenced by bmp3_get_status().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ interleave_reg_addr()

static void interleave_reg_addr	(	const uint8_t *	reg_addr,
		uint8_t *	temp_buff,
		const uint8_t *	reg_data,
		uint32_t	len
	)

static

This internal API interleaves the register address between the register data buffer for burst write operation.

Parameters

[in]	reg_addr	: Contains the register address array.
[out]	temp_buff	: Contains the temporary buffer to store the register data and register address.
[in]	reg_data	: Contains the register data to be written in the temporary buffer.
[in]	len	: No of bytes of data to be written for burst write.

Definition at line 1807 of file bmp3.c.

{
    uint32_t index;

    for (index = 1; index < len; index++)
    {
        temp_buff[(index * 2) - 1] = reg_addr[index];
        temp_buff[index * 2] = reg_data[index];
    }
}

Referenced by bmp3_set_regs().

Here is the caller graph for this function:

◆ null_ptr_check()

static int8_t null_ptr_check ( const struct bmp3_dev * dev )

static

This internal API is used to validate the device pointer for null conditions.

This internal API is used to validate the device structure pointer for null conditions.

Parameters

[in] dev : Structure instance of bmp3_dev.

Returns: Result of API execution status

Return values

0	-> Success
>0	-> Warning
<0	-> Fail

Definition at line 2724 of file bmp3.c.

{
    int8_t rslt;

    if ((dev == NULL) || (dev->read == NULL) || (dev->write == NULL) || (dev->delay_us == NULL) ||
        (dev->intf_ptr == NULL))
    {
        /* Device structure pointer is not valid */
        rslt = BMP3_E_NULL_PTR;
    }
    else
    {
        /* Device structure is fine */
        rslt = BMP3_OK;
    }

    return rslt;
}

References BMP3_E_NULL_PTR, BMP3_OK, bmp3_dev::delay_us, bmp3_dev::intf_ptr, NULL, bmp3_dev::read, and bmp3_dev::write.

Referenced by bmp3_get_regs(), bmp3_init(), bmp3_set_op_mode(), and bmp3_set_regs().

Here is the caller graph for this function:

◆ parse_advance_settings()

static void parse_advance_settings	(	const uint8_t *	reg_data,
		struct bmp3_adv_settings *	settings
	)

static

This internal API parse the advance (i2c_wdt_en, i2c_wdt_sel) settings and store in the device structure.

Parameters

[in]	reg_data	: Pointer variable which stores the register data to parse.
[out]	settings	: Structure instance of bmp3_adv_settings.

Definition at line 1849 of file bmp3.c.

{
    settings->i2c_wdt_en = BMP3_GET_BITS(*reg_data, BMP3_I2C_WDT_EN);
    settings->i2c_wdt_sel = BMP3_GET_BITS(*reg_data, BMP3_I2C_WDT_SEL);
}

References BMP3_GET_BITS, bmp3_adv_settings::i2c_wdt_en, and bmp3_adv_settings::i2c_wdt_sel.

Referenced by parse_sett_data().

Here is the caller graph for this function:

◆ parse_calib_data()

static void parse_calib_data	(	const uint8_t *	reg_data,
		struct bmp3_dev *	dev
	)

static

This internal API is used to parse the calibration data, compensates it and store it in device structure.

Parameters

[in]	dev	: Structure instance of bmp3_dev.
[out]	reg_data	: Contains calibration data to be parsed.

Definition at line 2545 of file bmp3.c.

{
    /* Temporary variable to store the aligned trim data */
    struct bmp3_reg_calib_data *reg_calib_data = &dev->calib_data.reg_calib_data;

    reg_calib_data->par_t1 = BMP3_CONCAT_BYTES(reg_data[1], reg_data[0]);
    reg_calib_data->par_t2 = BMP3_CONCAT_BYTES(reg_data[3], reg_data[2]);
    reg_calib_data->par_t3 = (int8_t)reg_data[4];
    reg_calib_data->par_p1 = (int16_t)BMP3_CONCAT_BYTES(reg_data[6], reg_data[5]);
    reg_calib_data->par_p2 = (int16_t)BMP3_CONCAT_BYTES(reg_data[8], reg_data[7]);
    reg_calib_data->par_p3 = (int8_t)reg_data[9];
    reg_calib_data->par_p4 = (int8_t)reg_data[10];
    reg_calib_data->par_p5 = BMP3_CONCAT_BYTES(reg_data[12], reg_data[11]);
    reg_calib_data->par_p6 = BMP3_CONCAT_BYTES(reg_data[14], reg_data[13]);
    reg_calib_data->par_p7 = (int8_t)reg_data[15];
    reg_calib_data->par_p8 = (int8_t)reg_data[16];
    reg_calib_data->par_p9 = (int16_t)BMP3_CONCAT_BYTES(reg_data[18], reg_data[17]);
    reg_calib_data->par_p10 = (int8_t)reg_data[19];
    reg_calib_data->par_p11 = (int8_t)reg_data[20];
}

References BMP3_CONCAT_BYTES, bmp3_dev::calib_data, bmp3_reg_calib_data::par_p1, bmp3_reg_calib_data::par_p10, bmp3_reg_calib_data::par_p11, bmp3_reg_calib_data::par_p2, bmp3_reg_calib_data::par_p3, bmp3_reg_calib_data::par_p4, bmp3_reg_calib_data::par_p5, bmp3_reg_calib_data::par_p6, bmp3_reg_calib_data::par_p7, bmp3_reg_calib_data::par_p8, bmp3_reg_calib_data::par_p9, bmp3_reg_calib_data::par_t1, bmp3_reg_calib_data::par_t2, bmp3_reg_calib_data::par_t3, and bmp3_calib_data::reg_calib_data.

Referenced by get_calib_data().

Here is the caller graph for this function:

◆ parse_int_ctrl_settings()

static void parse_int_ctrl_settings	(	const uint8_t *	reg_data,
		struct bmp3_int_ctrl_settings *	settings
	)

static

This internal API parse the interrupt control(output mode, level, latch and data ready) settings and store in the device structure.

Parameters

[in]	reg_data	: Pointer variable which stores the register data to parse.
[out]	settings	: Structure instance of bmp3_int_ctrl_settings.

Definition at line 1842 of file bmp3.c.

{
    settings->output_mode = BMP3_GET_BITS_POS_0(*reg_data, BMP3_INT_OUTPUT_MODE);
    settings->level = BMP3_GET_BITS(*reg_data, BMP3_INT_LEVEL);
    settings->latch = BMP3_GET_BITS(*reg_data, BMP3_INT_LATCH);
    settings->drdy_en = BMP3_GET_BITS(*reg_data, BMP3_INT_DRDY_EN);
}

References BMP3_GET_BITS, BMP3_GET_BITS_POS_0, bmp3_int_ctrl_settings::drdy_en, bmp3_int_ctrl_settings::latch, bmp3_int_ctrl_settings::level, and bmp3_int_ctrl_settings::output_mode.

Referenced by parse_sett_data().

Here is the caller graph for this function:

◆ parse_odr_filter_settings()

static void parse_odr_filter_settings	(	const uint8_t *	reg_data,
		struct bmp3_odr_filter_settings *	settings
	)

static

This internal API parse the over sampling, ODR and filter settings and store in the device structure.

Parameters

[in]	reg_data	: Pointer variable which stores the register data to parse.
[out]	settings	: Structure instance of bmp3_odr_filter_settings.

Definition at line 1870 of file bmp3.c.

{
    uint8_t index = 0;

    /* ODR and filter settings index starts from one (0x1C register) */
    settings->press_os = BMP3_GET_BITS_POS_0(reg_data[index], BMP3_PRESS_OS);
    settings->temp_os = BMP3_GET_BITS(reg_data[index], BMP3_TEMP_OS);

    /* Move index to 0x1D register */
    index++;
    settings->odr = BMP3_GET_BITS_POS_0(reg_data[index], BMP3_ODR);

    /* Move index to 0x1F register */
    index = index + 2;
    settings->iir_filter = BMP3_GET_BITS(reg_data[index], BMP3_IIR_FILTER);
}

References BMP3_GET_BITS, BMP3_GET_BITS_POS_0, bmp3_odr_filter_settings::iir_filter, bmp3_odr_filter_settings::odr, bmp3_odr_filter_settings::press_os, and bmp3_odr_filter_settings::temp_os.

Referenced by get_odr_filter_settings(), and parse_sett_data().

Here is the caller graph for this function:

◆ parse_pwr_ctrl_settings()

static void parse_pwr_ctrl_settings	(	const uint8_t *	reg_data,
		struct bmp3_settings *	settings
	)

static

This internal API parse the power control(power mode, pressure enable and temperature enable) settings and store in the device structure.

Parameters

[in]	reg_data	: Pointer variable which stores the register data to parse.
[out]	settings	: Structure instance of bmp3_settings.

Definition at line 1859 of file bmp3.c.

{
    settings->op_mode = BMP3_GET_BITS(*reg_data, BMP3_OP_MODE);
    settings->press_en = BMP3_GET_BITS_POS_0(*reg_data, BMP3_PRESS_EN);
    settings->temp_en = BMP3_GET_BITS(*reg_data, BMP3_TEMP_EN);
}

References BMP3_GET_BITS, BMP3_GET_BITS_POS_0, bmp3_settings::op_mode, bmp3_settings::press_en, and bmp3_settings::temp_en.

Referenced by parse_sett_data().

Here is the caller graph for this function:

◆ parse_sensor_data()

static void parse_sensor_data	(	const uint8_t *	reg_data,
		struct bmp3_uncomp_data *	uncomp_data
	)

static

This internal API is used to parse the pressure and temperature data and store it in the bmp3_uncomp_data structure instance.

This internal API is used to parse the pressure or temperature or both the data and store it in the bmp3_uncomp_data structure instance.

Parameters

[in]	reg_data	: Contains the register data which needs to be parsed.
[out]	uncomp_data	: Contains the uncompensated press and temp data.

Definition at line 2273 of file bmp3.c.

{
    /* Temporary variables to store the sensor data */
    uint32_t data_xlsb;
    uint32_t data_lsb;
    uint32_t data_msb;

    /* Store the parsed register values for pressure data */
    data_xlsb = (uint32_t)reg_data[0];
    data_lsb = (uint32_t)reg_data[1] << 8;
    data_msb = (uint32_t)reg_data[2] << 16;
    uncomp_data->pressure = data_msb | data_lsb | data_xlsb;

    /* Store the parsed register values for temperature data */
    data_xlsb = (uint32_t)reg_data[3];
    data_lsb = (uint32_t)reg_data[4] << 8;
    data_msb = (uint32_t)reg_data[5] << 16;
    uncomp_data->temperature = data_msb | data_lsb | data_xlsb;
}

References bmp3_uncomp_data::pressure, and bmp3_uncomp_data::temperature.

Referenced by bmp3_get_sensor_data().

Here is the caller graph for this function:

◆ parse_sett_data()

static void parse_sett_data	(	const uint8_t *	reg_data,
		struct bmp3_settings *	settings
	)

static

This internal API parse the power control(power mode, pressure enable and temperature enable), over sampling, ODR, filter and interrupt control settings and store in the device structure.

This internal API parse the power control(power mode, pressure enable and temperature enable), over sampling, ODR, filter, interrupt control and advance settings and store in the device structure.

Parameters

[in]	reg_data	: Register data to be parsed.
[in]	settings	: Structure instance of bmp3_settings

Definition at line 1823 of file bmp3.c.

{
    /* Parse interrupt control settings and store in device structure */
    parse_int_ctrl_settings(&reg_data[0], &settings->int_settings);

    /* Parse advance settings and store in device structure */
    parse_advance_settings(&reg_data[1], &settings->adv_settings);

    /* Parse power control settings and store in device structure */
    parse_pwr_ctrl_settings(&reg_data[2], settings);

    /* Parse ODR and filter settings and store in device structure */
    parse_odr_filter_settings(&reg_data[3], &settings->odr_filter);
}

References bmp3_settings::adv_settings, bmp3_settings::int_settings, bmp3_settings::odr_filter, parse_advance_settings(), parse_int_ctrl_settings(), parse_odr_filter_settings(), and parse_pwr_ctrl_settings().

Referenced by bmp3_get_sensor_settings().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pow_bmp3()

static uint32_t pow_bmp3	(	uint8_t	base,
		uint8_t	power
	)

static

This internal API is used to calculate the power functionality.

Parameters

[in]	base	: Contains the base value.
[in]	power	: Contains the power value.

Returns: Output of power function.

Return values

Calculated power function output in integer.

Definition at line 2683 of file bmp3.c.

{
    uint32_t pow_output = 1;

    while (power != 0)
    {
        pow_output = base * pow_output;
        power--;
    }

    return pow_output;
}

Referenced by calculate_press_meas_time(), and calculate_temp_meas_time().

Here is the caller graph for this function:

◆ put_device_to_sleep()

static int8_t put_device_to_sleep ( struct bmp3_dev * dev )

static

This internal API puts the device to sleep mode.

Parameters

[in] dev : Structure instance of bmp3_dev.

Returns: Result of API execution status.

Return values

0	-> Success
>0	-> Warning
<0	-> Fail

Definition at line 1743 of file bmp3.c.

{
    int8_t rslt;
    uint8_t reg_addr = BMP3_REG_PWR_CTRL;

    /* Temporary variable to store the value read from op-mode register */
    uint8_t op_mode_reg_val;

    rslt = bmp3_get_regs(BMP3_REG_PWR_CTRL, &op_mode_reg_val, 1, dev);

    if (rslt == BMP3_OK)
    {
        /* Set the power mode */
        op_mode_reg_val = op_mode_reg_val & (~(BMP3_OP_MODE_MSK));

        /* Write the power mode in the register */
        rslt = bmp3_set_regs(&reg_addr, &op_mode_reg_val, 1, dev);
    }

    return rslt;
}

References bmp3_get_regs(), BMP3_OK, BMP3_OP_MODE_MSK, BMP3_REG_PWR_CTRL, and bmp3_set_regs().

Referenced by bmp3_set_op_mode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_advance_settings()

static int8_t set_advance_settings	(	uint32_t	desired_settings,
		const struct bmp3_settings *	settings,
		struct bmp3_dev *	dev
	)

static

This internal API sets the advance (i2c_wdt_en, i2c_wdt_sel) settings of the sensor based on the settings selected by the user.

Parameters

[in]	desired_settings	: Variable used to select the settings which are to be set.
[in]	settings	: Structure instance of bmp3_settings
[in]	dev	: Structure instance of bmp3_dev.

Returns: Result of API execution status

Return values

0	-> Success
>0	-> Warning
<0	-> Fail

Definition at line 2037 of file bmp3.c.

{
    int8_t rslt;
    uint8_t reg_addr;
    uint8_t reg_data;
    struct bmp3_adv_settings adv_settings = settings->adv_settings;

    reg_addr = BMP3_REG_IF_CONF;
    rslt = bmp3_get_regs(reg_addr, &reg_data, 1, dev);

    if (rslt == BMP3_OK)
    {
        if (desired_settings & BMP3_SEL_I2C_WDT_EN)
        {
            /* Set the i2c watch dog enable bits */
            reg_data = BMP3_SET_BITS(reg_data, BMP3_I2C_WDT_EN, adv_settings.i2c_wdt_en);
        }

        if (desired_settings & BMP3_SEL_I2C_WDT)
        {
            /* Set the i2c watch dog select bits */
            reg_data = BMP3_SET_BITS(reg_data, BMP3_I2C_WDT_SEL, adv_settings.i2c_wdt_sel);
        }

        rslt = bmp3_set_regs(&reg_addr, &reg_data, 1, dev);
    }

    return rslt;
}

References bmp3_settings::adv_settings, bmp3_get_regs(), BMP3_OK, BMP3_REG_IF_CONF, BMP3_SEL_I2C_WDT, BMP3_SEL_I2C_WDT_EN, BMP3_SET_BITS, bmp3_set_regs(), bmp3_adv_settings::i2c_wdt_en, and bmp3_adv_settings::i2c_wdt_sel.

Referenced by bmp3_set_sensor_settings().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_int_ctrl_settings()

static int8_t set_int_ctrl_settings	(	uint32_t	desired_settings,
		const struct bmp3_settings *	settings,
		struct bmp3_dev *	dev
	)

static

This internal API sets the interrupt control (output mode, level, latch and data ready) settings of the sensor based on the settings selected by the user.

Parameters

[in]	desired_settings	: Variable used to select the settings which are to be set.
[in]	settings	: Structure instance of bmp3_settings
[in]	dev	: Structure instance of bmp3_dev.

Returns: Result of API execution status

Return values

0	-> Success
>0	-> Warning
<0	-> Fail

Definition at line 1987 of file bmp3.c.

{
    int8_t rslt;
    uint8_t reg_data;
    uint8_t reg_addr;
    struct bmp3_int_ctrl_settings int_settings;

    reg_addr = BMP3_REG_INT_CTRL;
    rslt = bmp3_get_regs(reg_addr, &reg_data, 1, dev);

    if (rslt == BMP3_OK)
    {
        int_settings = settings->int_settings;

        if (desired_settings & BMP3_SEL_OUTPUT_MODE)
        {
            /* Set the interrupt output mode bits */
            reg_data = BMP3_SET_BITS_POS_0(reg_data, BMP3_INT_OUTPUT_MODE, int_settings.output_mode);
        }

        if (desired_settings & BMP3_SEL_LEVEL)
        {
            /* Set the interrupt level bits */
            reg_data = BMP3_SET_BITS(reg_data, BMP3_INT_LEVEL, int_settings.level);
        }

        if (desired_settings & BMP3_SEL_LATCH)
        {
            /* Set the interrupt latch bits */
            reg_data = BMP3_SET_BITS(reg_data, BMP3_INT_LATCH, int_settings.latch);
        }

        if (desired_settings & BMP3_SEL_DRDY_EN)
        {
            /* Set the interrupt data ready bits */
            reg_data = BMP3_SET_BITS(reg_data, BMP3_INT_DRDY_EN, int_settings.drdy_en);
        }

        rslt = bmp3_set_regs(&reg_addr, &reg_data, 1, dev);
    }

    return rslt;
}

References bmp3_get_regs(), BMP3_OK, BMP3_REG_INT_CTRL, BMP3_SEL_DRDY_EN, BMP3_SEL_LATCH, BMP3_SEL_LEVEL, BMP3_SEL_OUTPUT_MODE, BMP3_SET_BITS, BMP3_SET_BITS_POS_0, bmp3_set_regs(), bmp3_int_ctrl_settings::drdy_en, bmp3_settings::int_settings, bmp3_int_ctrl_settings::latch, bmp3_int_ctrl_settings::level, and bmp3_int_ctrl_settings::output_mode.

Referenced by bmp3_set_sensor_settings().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_normal_mode()

static int8_t set_normal_mode	(	struct bmp3_settings *	settings,
		struct bmp3_dev *	dev
	)

static

This internal API sets the normal mode in the sensor.

This internal API converts the no. of frames required by the user to bytes so as to write in the watermark length register.

Parameters

[in]	settings	: Structure instance of bmp3_settings.
[in]	dev	: Structure instance of bmp3_dev.

Returns: Result of API execution status.

Return values

0	-> Success
>0	-> Warning
<0	-> Fail

 @brief This internal API resets the FIFO buffer, start index,
 parsed frame count, configuration change, configuration error and
 frame_not_available variables.
&zwj;/

//static void reset_fifo_index(struct bmp3_fifo_data <em>fifo) //{ // / Loop variable ‍/ // uint16_t index; // // / Variable for FIFO size ‍/ // uint16_t fifo_size = 512; // // / The size of FIFO in BMP3 is 512 bytes ‍/ // for (index = 0; index < fifo_size; index++) // { // / Initialize data buffer to zero ‍/ // fifo->buffer[index] = 0; // } // // fifo->byte_count = 0; // fifo->start_idx = 0; // fifo->parsed_frames = 0; // fifo->config_change = 0; // fifo->config_err = 0; // fifo->frame_not_available = 0; //} // ///! // * This internal API parse the FIFO data frame from the fifo buffer and // * fills the byte count, uncompensated pressure and/or temperature data and no // * of parsed frames. // *‍/ //static uint8_t parse_fifo_data_frame(uint8_t header, // struct bmp3_fifo_data *fifo, // uint16_t *byte_index, // struct bmp3_uncomp_data *uncomp_data, // uint8_t *parsed_frames) //{ // uint8_t t_p_frame = FALSE; // // switch (header) // { // case BMP3_FIFO_TEMP_PRESS_FRAME: // unpack_temp_press_frame(byte_index, fifo->buffer, uncomp_data); // *parsed_frames = *parsed_frames + 1; // t_p_frame = BMP3_PRESS_TEMP; // break; // case BMP3_FIFO_TEMP_FRAME: // unpack_temp_frame(byte_index, fifo->buffer, uncomp_data); // *parsed_frames = *parsed_frames + 1; // t_p_frame = BMP3_TEMP; // break; // case BMP3_FIFO_PRESS_FRAME: // unpack_press_frame(byte_index, fifo->buffer, uncomp_data); // *parsed_frames = *parsed_frames + 1; // t_p_frame = BMP3_PRESS; // break; // case BMP3_FIFO_TIME_FRAME: // unpack_time_frame(byte_index, fifo->buffer, &fifo->sensor_time); // break; // case BMP3_FIFO_CONFIG_CHANGE: // fifo->config_change = 1; // *byte_index = *byte_index + 1; // break; // case BMP3_FIFO_ERROR_FRAME: // fifo->config_err = 1; // *byte_index = *byte_index + 1; // break; // case BMP3_FIFO_EMPTY_FRAME: // *byte_index = fifo->byte_count; // break; // default: // fifo->config_err = 1; // *byte_index = *byte_index + 1; // break; // } // // return t_p_frame; //}

/*!

This internal API unpacks the FIFO data frame from the fifo buffer and fills the byte count, uncompensated pressure and/or temperature data. ‍/ static void unpack_temp_press_frame(uint16_t *byte_index, const uint8_t *fifo_buffer, struct bmp3_uncomp_data *uncomp_data) { parse_fifo_sensor_data((BMP3_PRESS_TEMP), &fifo_buffer[*byte_index], uncomp_data); *byte_index = *byte_index + BMP3_LEN_P_T_DATA; }

/*!

This internal API unpacks the FIFO data frame from the fifo buffer and fills the byte count and uncompensated temperature data. ‍/ static void unpack_temp_frame(uint16_t *byte_index, const uint8_t *fifo_buffer, struct bmp3_uncomp_data *uncomp_data) { parse_fifo_sensor_data(BMP3_TEMP, &fifo_buffer[*byte_index], uncomp_data); *byte_index = *byte_index + BMP3_LEN_T_DATA; }

/*!

This internal API unpacks the FIFO data frame from the fifo buffer and fills the byte count and uncompensated pressure data. ‍/ static void unpack_press_frame(uint16_t *byte_index, const uint8_t *fifo_buffer, struct bmp3_uncomp_data *uncomp_data) { parse_fifo_sensor_data(BMP3_PRESS, &fifo_buffer[*byte_index], uncomp_data); *byte_index = *byte_index + BMP3_LEN_P_DATA; }

/*!

This internal API unpacks the time frame from the fifo data buffer and fills the byte count and update the sensor time variable. ‍/ static void unpack_time_frame(uint16_t *byte_index, const uint8_t *fifo_buffer, uint32_t *sensor_time) { uint16_t index = *byte_index; uint32_t xlsb = fifo_buffer[index]; uint32_t lsb = ((uint32_t)fifo_buffer[index + 1]) << 8; uint32_t msb = ((uint32_t)fifo_buffer[index + 2]) << 16;

*sensor_time = msb | lsb | xlsb; *byte_index = *byte_index + BMP3_LEN_SENSOR_TIME; }

/*!

This internal API parses the FIFO data frame from the fifo buffer and fills uncompensated temperature and/or pressure data. ‍/ static void parse_fifo_sensor_data(uint8_t sensor_comp, const uint8_t <em>fifo_buffer, struct bmp3_uncomp_data *uncomp_data) { / Temporary variables to store the sensor data *‍/ uint32_t data_xlsb; uint32_t data_lsb; uint32_t data_msb;

/* Store the parsed register values for temperature data *‍/ data_xlsb = (uint32_t)fifo_buffer[0]; data_lsb = (uint32_t)fifo_buffer[1] << 8; data_msb = (uint32_t)fifo_buffer[2] << 16;

if (sensor_comp == BMP3_TEMP) { /* Update uncompensated temperature *‍/ uncomp_data->temperature = data_msb | data_lsb | data_xlsb; }

if (sensor_comp == BMP3_PRESS) { /* Update uncompensated pressure *‍/ uncomp_data->pressure = data_msb | data_lsb | data_xlsb; }

if (sensor_comp == (BMP3_PRESS_TEMP)) { uncomp_data->temperature = data_msb | data_lsb | data_xlsb;

/* Store the parsed register values for pressure data *‍/ data_xlsb = (uint32_t)fifo_buffer[3]; data_lsb = (uint32_t)fifo_buffer[4] << 8; data_msb = (uint32_t)fifo_buffer[5] << 16; uncomp_data->pressure = data_msb | data_lsb | data_xlsb; } }

/*!

This internal API parses the FIFO buffer and gets the header info.

This internal API sets the normal mode in the sensor.

Definition at line 1680 of file bmp3.c.

{
    int8_t rslt;
    uint8_t conf_err_status;

    rslt = validate_normal_mode_settings(settings, dev);

    /* If OSR and ODR settings are proper then write the power mode */
    if (rslt == BMP3_OK)
    {
        rslt = write_power_mode(settings, dev);

        /* check for configuration error */
        if (rslt == BMP3_OK)
        {
            /* Read the configuration error status */
            rslt = bmp3_get_regs(BMP3_REG_ERR, &conf_err_status, 1, dev);

            /* Check if conf. error flag is set */
            if (rslt == BMP3_OK)
            {
                if (conf_err_status & BMP3_ERR_CONF)
                {
                    /* OSR and ODR configuration is not proper */
                    rslt = BMP3_E_CONFIGURATION_ERR;
                }
            }
        }
    }

    return rslt;
}

References BMP3_E_CONFIGURATION_ERR, BMP3_ERR_CONF, bmp3_get_regs(), BMP3_OK, BMP3_REG_ERR, validate_normal_mode_settings(), and write_power_mode().

Referenced by bmp3_set_op_mode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_odr_filter_settings()

static int8_t set_odr_filter_settings	(	uint32_t	desired_settings,
		struct bmp3_settings *	settings,
		struct bmp3_dev *	dev
	)

static

This internal API sets the over sampling, ODR and filter settings of the sensor based on the settings selected by the user.

Parameters

[in]	desired_settings	: Variable used to select the settings which are to be set.
[in]	settings	: Structure instance of bmp3_settings
[in]	dev	: Structure instance of bmp3_dev.

Returns: Result of API execution status

Return values

0	-> Success
>0	-> Warning
<0	-> Fail

Definition at line 1928 of file bmp3.c.

{
    int8_t rslt;

    /* No of registers to be configured is 3*/
    uint8_t reg_addr[3] = { 0 };

    /* No of register data to be read is 4 */
    uint8_t reg_data[4];
    uint8_t len = 0;

    rslt = bmp3_get_regs(BMP3_REG_OSR, reg_data, 4, dev);

    if (rslt == BMP3_OK)
    {
        if (are_settings_changed((BMP3_SEL_PRESS_OS | BMP3_SEL_TEMP_OS), desired_settings))
        {
            /* Fill the over sampling register address and
            * register data to be written in the sensor */
            fill_osr_data(desired_settings, reg_addr, reg_data, &len, settings);
        }

        if (are_settings_changed(BMP3_SEL_ODR, desired_settings))
        {
            /* Fill the output data rate register address and
             * register data to be written in the sensor */
            fill_odr_data(reg_addr, reg_data, &len, settings);
        }

        if (are_settings_changed(BMP3_SEL_IIR_FILTER, desired_settings))
        {
            /* Fill the iir filter register address and
             * register data to be written in the sensor */
            fill_filter_data(reg_addr, reg_data, &len, settings);
        }

        if (settings->op_mode == BMP3_MODE_NORMAL)
        {
            /* For normal mode, OSR and ODR settings should
             * be proper */
            rslt = validate_osr_and_odr_settings(settings);
        }

        if (rslt == BMP3_OK)
        {
            /* Burst write the over sampling, ODR and filter
             * settings in the register */
            rslt = bmp3_set_regs(reg_addr, reg_data, len, dev);
        }
    }

    return rslt;
}

References are_settings_changed(), bmp3_get_regs(), BMP3_MODE_NORMAL, BMP3_OK, BMP3_REG_OSR, BMP3_SEL_IIR_FILTER, BMP3_SEL_ODR, BMP3_SEL_PRESS_OS, BMP3_SEL_TEMP_OS, bmp3_set_regs(), fill_filter_data(), fill_odr_data(), fill_osr_data(), bmp3_settings::op_mode, and validate_osr_and_odr_settings().

Referenced by bmp3_set_sensor_settings().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_pwr_ctrl_settings()

static int8_t set_pwr_ctrl_settings	(	uint32_t	desired_settings,
		const struct bmp3_settings *	settings,
		struct bmp3_dev *	dev
	)

static

This internal API sets the pressure enable and temperature enable settings of the sensor.

This API sets the pressure enable and temperature enable settings of the sensor.

Parameters

[in]	desired_settings	: Contains the settings which user wants to change.
[in]	settings	: Structure instance of bmp3_settings
[in]	dev	: Structure instance of bmp3_dev.

Returns: Result of API execution status

Return values

0	-> Success
>0	-> Warning
<0	-> Fail

Definition at line 1891 of file bmp3.c.

{
    int8_t rslt;
    uint8_t reg_addr = BMP3_REG_PWR_CTRL;
    uint8_t reg_data;

    rslt = bmp3_get_regs(reg_addr, &reg_data, 1, dev);

    if (rslt == BMP3_OK)
    {
        if (desired_settings & BMP3_SEL_PRESS_EN)
        {
            /* Set the pressure enable settings in the
             * register variable */
            reg_data = BMP3_SET_BITS_POS_0(reg_data, BMP3_PRESS_EN, settings->press_en);
        }

        if (desired_settings & BMP3_SEL_TEMP_EN)
        {
            /* Set the temperature enable settings in the
             * register variable */
            reg_data = BMP3_SET_BITS(reg_data, BMP3_TEMP_EN, settings->temp_en);
        }

        /* Write the power control settings in the register */
        rslt = bmp3_set_regs(&reg_addr, &reg_data, 1, dev);
    }

    return rslt;
}

References bmp3_get_regs(), BMP3_OK, BMP3_REG_PWR_CTRL, BMP3_SEL_PRESS_EN, BMP3_SEL_TEMP_EN, BMP3_SET_BITS, BMP3_SET_BITS_POS_0, bmp3_set_regs(), bmp3_settings::press_en, and bmp3_settings::temp_en.

Referenced by bmp3_set_sensor_settings().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_normal_mode_settings()

static int8_t validate_normal_mode_settings	(	struct bmp3_settings *	settings,
		struct bmp3_dev *	dev
	)

static

This internal API validate the normal mode settings of the sensor.

Parameters

[out]	settings	: Structure instance of bmp3_settings.
[in]	dev	: Structure instance of bmp3_dev.

Returns: Result of API execution status

Return values

0	-> Success
>0	-> Warning
<0	-> Fail

Definition at line 1768 of file bmp3.c.

{
    int8_t rslt;

    rslt = get_odr_filter_settings(settings, dev);

    if (rslt == BMP3_OK)
    {
        rslt = validate_osr_and_odr_settings(settings);
    }

    return rslt;
}

References BMP3_OK, get_odr_filter_settings(), and validate_osr_and_odr_settings().

Referenced by set_normal_mode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ validate_osr_and_odr_settings()

static int8_t validate_osr_and_odr_settings ( const struct bmp3_settings * settings )

static

This internal API validate the over sampling, ODR settings of the sensor.

Parameters

[out] settings : Structure instance of bmp3_settings.

Returns: Indicates whether ODR and OSR settings are valid or not.

Return values

0	-> Success
<0	-> Fail

Definition at line 2090 of file bmp3.c.

{
    int8_t rslt;

    /* According to BMP388 datasheet at Section 3.9.2. "Measurement rate in
     * forced mode and normal mode" there is also the constant of 234us also to
     * be considered in the sum. */
    uint32_t meas_t = 234;
    uint32_t meas_t_p = 0;

    /* Sampling period corresponding to ODR in microseconds  */
    uint32_t odr[18] = {
        5000, 10000, 20000, 40000, 80000, 160000, 320000, 640000, 1280000, 2560000, 5120000, 10240000, 20480000,
        40960000, 81920000, 163840000, 327680000, 655360000
    };

    if (settings->press_en)
    {
        /* Calculate the pressure measurement duration */
        meas_t_p += calculate_press_meas_time(settings);
    }

    if (settings->temp_en)
    {
        /* Calculate the temperature measurement duration */
        meas_t_p += calculate_temp_meas_time(settings);
    }

    /* Constant 234us added to the summation of temperature and pressure measurement duration */
    meas_t += meas_t_p;

    rslt = verify_meas_time_and_odr_duration(meas_t, odr[settings->odr_filter.odr]);

    return rslt;
}

References calculate_press_meas_time(), calculate_temp_meas_time(), bmp3_odr_filter_settings::odr, bmp3_settings::odr_filter, bmp3_settings::press_en, bmp3_settings::temp_en, and verify_meas_time_and_odr_duration().

Referenced by set_odr_filter_settings(), and validate_normal_mode_settings().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ verify_meas_time_and_odr_duration()

static int8_t verify_meas_time_and_odr_duration	(	uint32_t	meas_t,
		uint32_t	odr_duration
	)

static

This internal API checks whether the measurement time and ODR duration of the sensor are proper.

Parameters

[in]	meas_t	: Pressure and temperature measurement time in microseconds.
[in]	odr_duration	: Duration in microseconds corresponding to the ODR value.

Returns: Indicates whether ODR and OSR settings are valid or not.

Return values

0	-> Success
>0	-> Warning

Definition at line 2130 of file bmp3.c.

{
    int8_t rslt;

    if (meas_t < odr_duration)
    {
        /* If measurement duration is less than ODR duration
         * then OSR and ODR settings are fine */
        rslt = BMP3_OK;
    }
    else
    {
        /* OSR and ODR settings are not proper */
        rslt = BMP3_E_INVALID_ODR_OSR_SETTINGS;
    }

    return rslt;
}

References BMP3_E_INVALID_ODR_OSR_SETTINGS, and BMP3_OK.

Referenced by validate_osr_and_odr_settings().

Here is the caller graph for this function:

◆ write_power_mode()

static int8_t write_power_mode	(	const struct bmp3_settings *	settings,
		struct bmp3_dev *	dev
	)

static

This internal API writes the power mode in the sensor.

Parameters

[out]	settings	: Structure instance of bmp3_settings.
[in]	dev	: Structure instance of bmp3_dev.

Returns: Result of API execution status.

Return values

0	-> Success
>0	-> Warning
<0	-> Fail

Definition at line 1716 of file bmp3.c.

{
    int8_t rslt;
    uint8_t reg_addr = BMP3_REG_PWR_CTRL;
    uint8_t op_mode = settings->op_mode;

    /* Temporary variable to store the value read from op-mode register */
    uint8_t op_mode_reg_val;

    /* Read the power mode register */
    rslt = bmp3_get_regs(reg_addr, &op_mode_reg_val, 1, dev);

    /* Set the power mode */
    if (rslt == BMP3_OK)
    {
        op_mode_reg_val = BMP3_SET_BITS(op_mode_reg_val, BMP3_OP_MODE, op_mode);

        /* Write the power mode in the register */
        rslt = bmp3_set_regs(&reg_addr, &op_mode_reg_val, 1, dev);
    }

    return rslt;
}

References bmp3_get_regs(), BMP3_OK, BMP3_REG_PWR_CTRL, BMP3_SET_BITS, bmp3_set_regs(), and bmp3_settings::op_mode.

Referenced by bmp3_set_op_mode(), and set_normal_mode().

Here is the call graph for this function:

Here is the caller graph for this function:

Functions

Detailed Description

Function Documentation

◆ are_settings_changed()

◆ bmp3_fifo_flush()

◆ bmp3_get_fifo_length()

◆ bmp3_get_op_mode()

◆ bmp3_get_regs()

◆ bmp3_get_sensor_data()

◆ bmp3_get_sensor_settings()

◆ bmp3_get_status()

◆ bmp3_init()

◆ bmp3_set_op_mode()

◆ bmp3_set_regs()

◆ bmp3_set_sensor_settings()

◆ bmp3_soft_reset()

◆ calculate_press_meas_time()

◆ calculate_temp_meas_time()

◆ compensate_data()

◆ compensate_pressure()

◆ compensate_temperature()

◆ fill_filter_data()

◆ fill_odr_data()

◆ fill_osr_data()

◆ get_calib_data()

◆ get_err_status()

◆ get_int_status()

◆ get_odr_filter_settings()

◆ get_sensor_status()

◆ interleave_reg_addr()

◆ null_ptr_check()

◆ parse_advance_settings()

◆ parse_calib_data()

◆ parse_int_ctrl_settings()

◆ parse_odr_filter_settings()

◆ parse_pwr_ctrl_settings()

◆ parse_sensor_data()

◆ parse_sett_data()

◆ pow_bmp3()

◆ put_device_to_sleep()

◆ set_advance_settings()

◆ set_int_ctrl_settings()

◆ set_normal_mode()

◆ set_odr_filter_settings()

◆ set_pwr_ctrl_settings()

◆ validate_normal_mode_settings()

◆ validate_osr_and_odr_settings()

◆ verify_meas_time_and_odr_duration()

◆ write_power_mode()
