bmp3 device settings More...

#include <bmp3_defs.h>

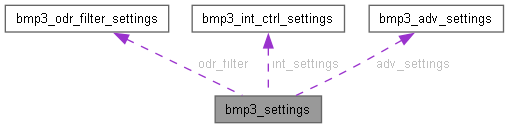

Collaboration diagram for bmp3_settings:

[legend]

Data Fields
uint8_t	op_mode

uint8_t	press_en

uint8_t	temp_en

struct bmp3_odr_filter_settings	odr_filter

struct bmp3_int_ctrl_settings	int_settings

struct bmp3_adv_settings	adv_settings

Detailed Description

bmp3 device settings

Definition at line 706 of file bmp3_defs.h.

Field Documentation

◆ adv_settings

struct bmp3_adv_settings bmp3_settings::adv_settings

Advance settings

Definition at line 724 of file bmp3_defs.h.

Referenced by parse_sett_data(), and set_advance_settings().

◆ int_settings

struct bmp3_int_ctrl_settings bmp3_settings::int_settings

Interrupt configuration

Definition at line 721 of file bmp3_defs.h.

Referenced by init_bmp390_B(), init_bmp390_p(), parse_sett_data(), and set_int_ctrl_settings().

◆ odr_filter

struct bmp3_odr_filter_settings bmp3_settings::odr_filter

ODR and filter configuration

Definition at line 718 of file bmp3_defs.h.

Referenced by calculate_press_meas_time(), calculate_temp_meas_time(), fill_filter_data(), fill_odr_data(), fill_osr_data(), get_odr_filter_settings(), init_bmp390_B(), init_bmp390_p(), parse_sett_data(), and validate_osr_and_odr_settings().

◆ op_mode

uint8_t bmp3_settings::op_mode

Power mode which user wants to set

Definition at line 709 of file bmp3_defs.h.

Referenced by bmp3_set_op_mode(), init_bmp390_B(), init_bmp390_p(), parse_pwr_ctrl_settings(), set_odr_filter_settings(), and write_power_mode().

◆ press_en

uint8_t bmp3_settings::press_en

Enable/Disable pressure sensor

Definition at line 712 of file bmp3_defs.h.

Referenced by init_bmp390_B(), init_bmp390_p(), parse_pwr_ctrl_settings(), set_pwr_ctrl_settings(), and validate_osr_and_odr_settings().

◆ temp_en

uint8_t bmp3_settings::temp_en

Enable/Disable temperature sensor

Definition at line 715 of file bmp3_defs.h.
