lis2mdl_reg_t Union Reference

#include <lis2mdl_reg.h>

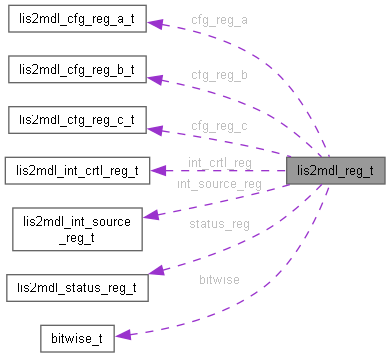

Collaboration diagram for lis2mdl_reg_t:

Data Fields
lis2mdl_cfg_reg_a_t	cfg_reg_a
lis2mdl_cfg_reg_b_t	cfg_reg_b
lis2mdl_cfg_reg_c_t	cfg_reg_c
lis2mdl_int_crtl_reg_t	int_crtl_reg
lis2mdl_int_source_reg_t	int_source_reg
lis2mdl_status_reg_t	status_reg
bitwise_t	bitwise
uint8_t	byte

Detailed Description

Definition at line 344 of file lis2mdl_reg.h.

Field Documentation

bitwise

bitwise_t lis2mdl_reg_t::bitwise

Definition at line 352 of file lis2mdl_reg.h.

byte

uint8_t lis2mdl_reg_t::byte

Definition at line 353 of file lis2mdl_reg.h.

cfg_reg_a

lis2mdl_cfg_reg_a_t lis2mdl_reg_t::cfg_reg_a

Definition at line 346 of file lis2mdl_reg.h.

cfg_reg_b

lis2mdl_cfg_reg_b_t lis2mdl_reg_t::cfg_reg_b

Definition at line 347 of file lis2mdl_reg.h.

cfg_reg_c

lis2mdl_cfg_reg_c_t lis2mdl_reg_t::cfg_reg_c

Definition at line 348 of file lis2mdl_reg.h.

int_crtl_reg

lis2mdl_int_crtl_reg_t lis2mdl_reg_t::int_crtl_reg

Definition at line 349 of file lis2mdl_reg.h.

int_source_reg

lis2mdl_int_source_reg_t lis2mdl_reg_t::int_source_reg

Definition at line 350 of file lis2mdl_reg.h.

status_reg

lis2mdl_status_reg_t lis2mdl_reg_t::status_reg

Definition at line 351 of file lis2mdl_reg.h.

---

The documentation for this union was generated from the following file:

• Davinci_2/Core/Inc/lis2mdl_reg.h
