lsm6dso32_pin_int2_route_t Struct Reference

#include <lsm6dso32_reg.h>

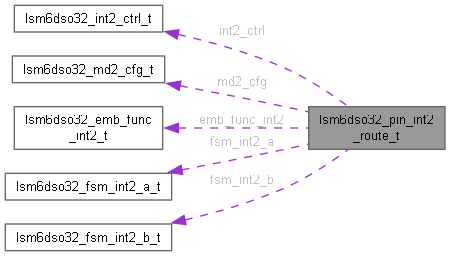

Collaboration diagram for lsm6dso32_pin_int2_route_t:

Data Fields
lsm6dso32_int2_ctrl_t	int2_ctrl
lsm6dso32_md2_cfg_t	md2_cfg
lsm6dso32_emb_func_int2_t	emb_func_int2
lsm6dso32_fsm_int2_a_t	fsm_int2_a
lsm6dso32_fsm_int2_b_t	fsm_int2_b

Detailed Description

Definition at line 3102 of file lsm6dso32_reg.h.

Field Documentation

emb_func_int2

lsm6dso32_emb_func_int2_t lsm6dso32_pin_int2_route_t::emb_func_int2

Definition at line 3106 of file lsm6dso32_reg.h.

Referenced by lsm6dso32_pin_int2_route_get(), and lsm6dso32_pin_int2_route_set().

fsm_int2_a

lsm6dso32_fsm_int2_a_t lsm6dso32_pin_int2_route_t::fsm_int2_a

Definition at line 3107 of file lsm6dso32_reg.h.

Referenced by lsm6dso32_pin_int2_route_get(), and lsm6dso32_pin_int2_route_set().

fsm_int2_b

lsm6dso32_fsm_int2_b_t lsm6dso32_pin_int2_route_t::fsm_int2_b

Definition at line 3108 of file lsm6dso32_reg.h.

Referenced by lsm6dso32_pin_int2_route_get(), and lsm6dso32_pin_int2_route_set().

int2_ctrl

lsm6dso32_int2_ctrl_t lsm6dso32_pin_int2_route_t::int2_ctrl

Definition at line 3104 of file lsm6dso32_reg.h.

Referenced by lsm6dso32_pin_int1_route_set(), lsm6dso32_pin_int2_route_get(), and lsm6dso32_pin_int2_route_set().

md2_cfg

lsm6dso32_md2_cfg_t lsm6dso32_pin_int2_route_t::md2_cfg

Definition at line 3105 of file lsm6dso32_reg.h.

Referenced by lsm6dso32_pin_int1_route_set(), lsm6dso32_pin_int2_route_get(), and lsm6dso32_pin_int2_route_set().

---

The documentation for this struct was generated from the following file:

• Davinci_2/Core/Inc/lsm6dso32_reg.h
