lsm6dso32_pin_int1_route_t Struct Reference

#include <lsm6dso32_reg.h>

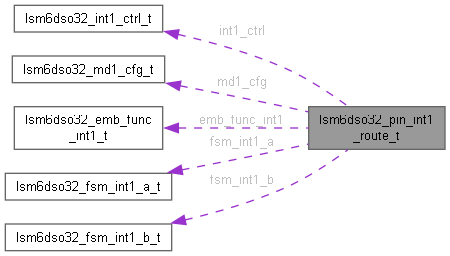

Collaboration diagram for lsm6dso32_pin_int1_route_t:

Data Fields
lsm6dso32_int1_ctrl_t	int1_ctrl
lsm6dso32_md1_cfg_t	md1_cfg
lsm6dso32_emb_func_int1_t	emb_func_int1
lsm6dso32_fsm_int1_a_t	fsm_int1_a
lsm6dso32_fsm_int1_b_t	fsm_int1_b

Detailed Description

Definition at line 3089 of file lsm6dso32_reg.h.

Field Documentation

emb_func_int1

lsm6dso32_emb_func_int1_t lsm6dso32_pin_int1_route_t::emb_func_int1

Definition at line 3093 of file lsm6dso32_reg.h.

Referenced by lsm6dso32_pin_int1_route_get(), and lsm6dso32_pin_int1_route_set().

fsm_int1_a

lsm6dso32_fsm_int1_a_t lsm6dso32_pin_int1_route_t::fsm_int1_a

Definition at line 3094 of file lsm6dso32_reg.h.

Referenced by lsm6dso32_pin_int1_route_get(), and lsm6dso32_pin_int1_route_set().

fsm_int1_b

lsm6dso32_fsm_int1_b_t lsm6dso32_pin_int1_route_t::fsm_int1_b

Definition at line 3095 of file lsm6dso32_reg.h.

Referenced by lsm6dso32_pin_int1_route_get(), and lsm6dso32_pin_int1_route_set().

int1_ctrl

lsm6dso32_int1_ctrl_t lsm6dso32_pin_int1_route_t::int1_ctrl

Definition at line 3091 of file lsm6dso32_reg.h.

Referenced by lsm6dso32_pin_int1_route_get(), lsm6dso32_pin_int1_route_set(), and lsm6dso32_pin_int2_route_set().

md1_cfg

lsm6dso32_md1_cfg_t lsm6dso32_pin_int1_route_t::md1_cfg

Definition at line 3092 of file lsm6dso32_reg.h.

Referenced by lsm6dso32_pin_int1_route_get(), lsm6dso32_pin_int1_route_set(), and lsm6dso32_pin_int2_route_set().

---

The documentation for this struct was generated from the following file:

• Davinci_2/Core/Inc/lsm6dso32_reg.h
